LG V-NET ACS IO

USING THE PRODUCT
ENGLISH
21

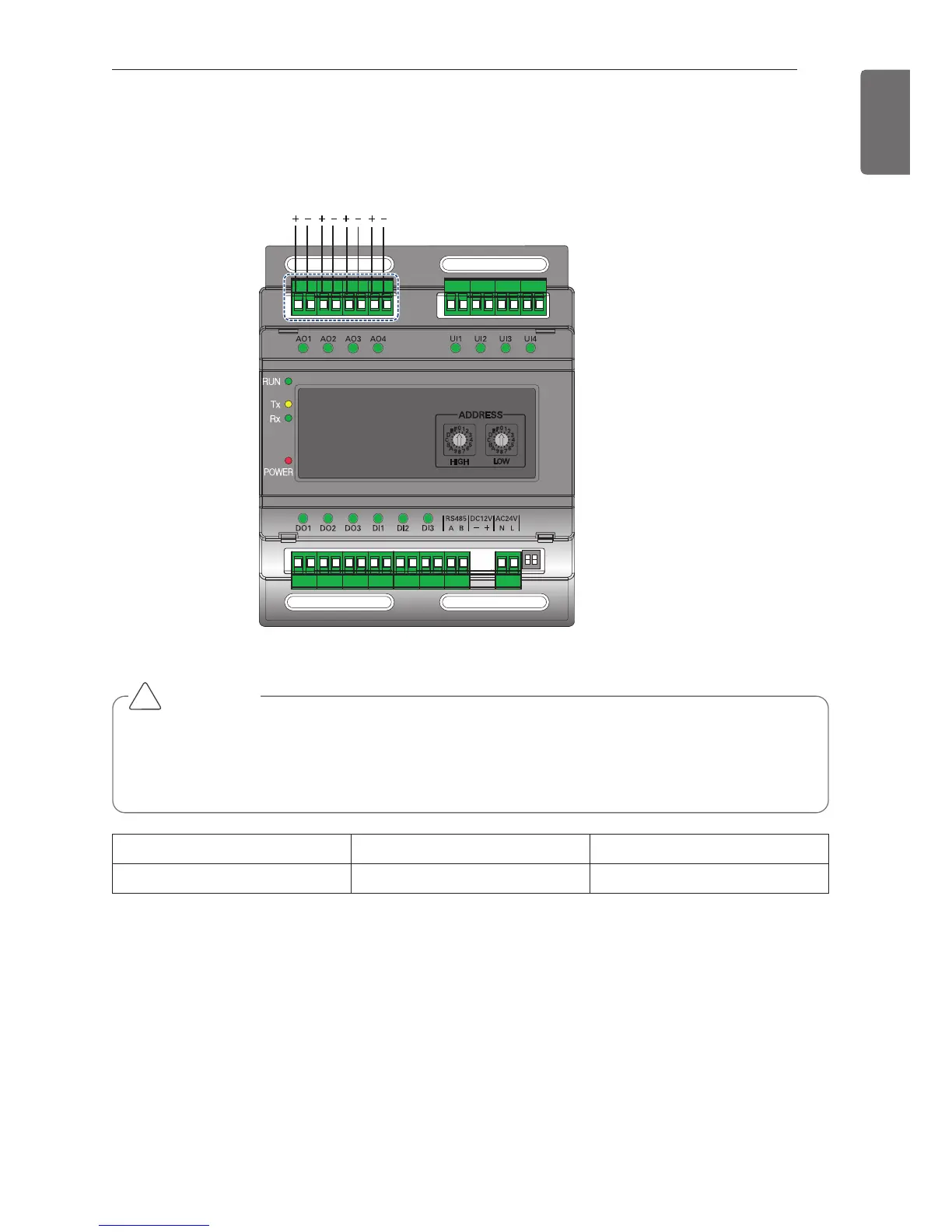

Connecting to an external device (AO Port)
Each of four analog output ports will provide between 0 and DC 10 V depending on
central controller configuration.
LED status (AO port)
The input status LED will light up under the following circumstances.
- When creating port output from the ACS IV Controller : ON
- When creating as port reserves from the ACS IV Controller : OFF
+ : Output
- : GND
ACS IO Module
CAUTION
• Connecting the wrong size cable results in damage and a malfunction of the product.
• Check the size of the connector head before attempting to terminate wiring.
• The maximum output current is 20 mA
!
Minimum Maximum
Voltage 0 V 10 V
