USING THE PRODUCT
ENGLISH
17

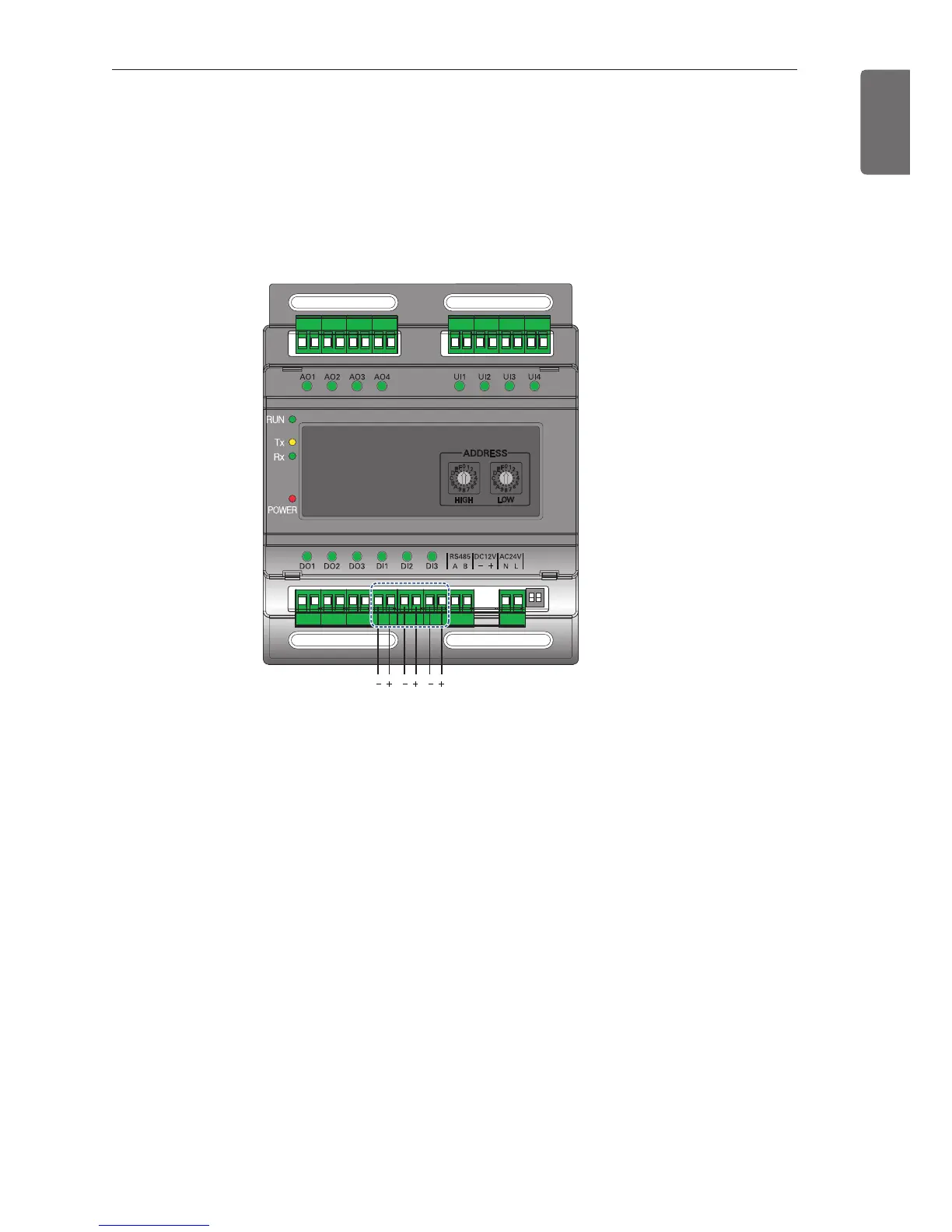

Connecting to an external device (DI port)
The dry contact input method is provided for DI ports.
Do not apply external power to DI ports.
Damage will occur and warranty will be voided.
There are a total of 3 DI ports.
LED status (DI port)
The input status LED will light up under the following circumstances.
• When there is an input value : ON
• When no input value is present : OFF
