LG V-NET ACS IO

PRODUCT INSTALLATION
ENGLISH
15

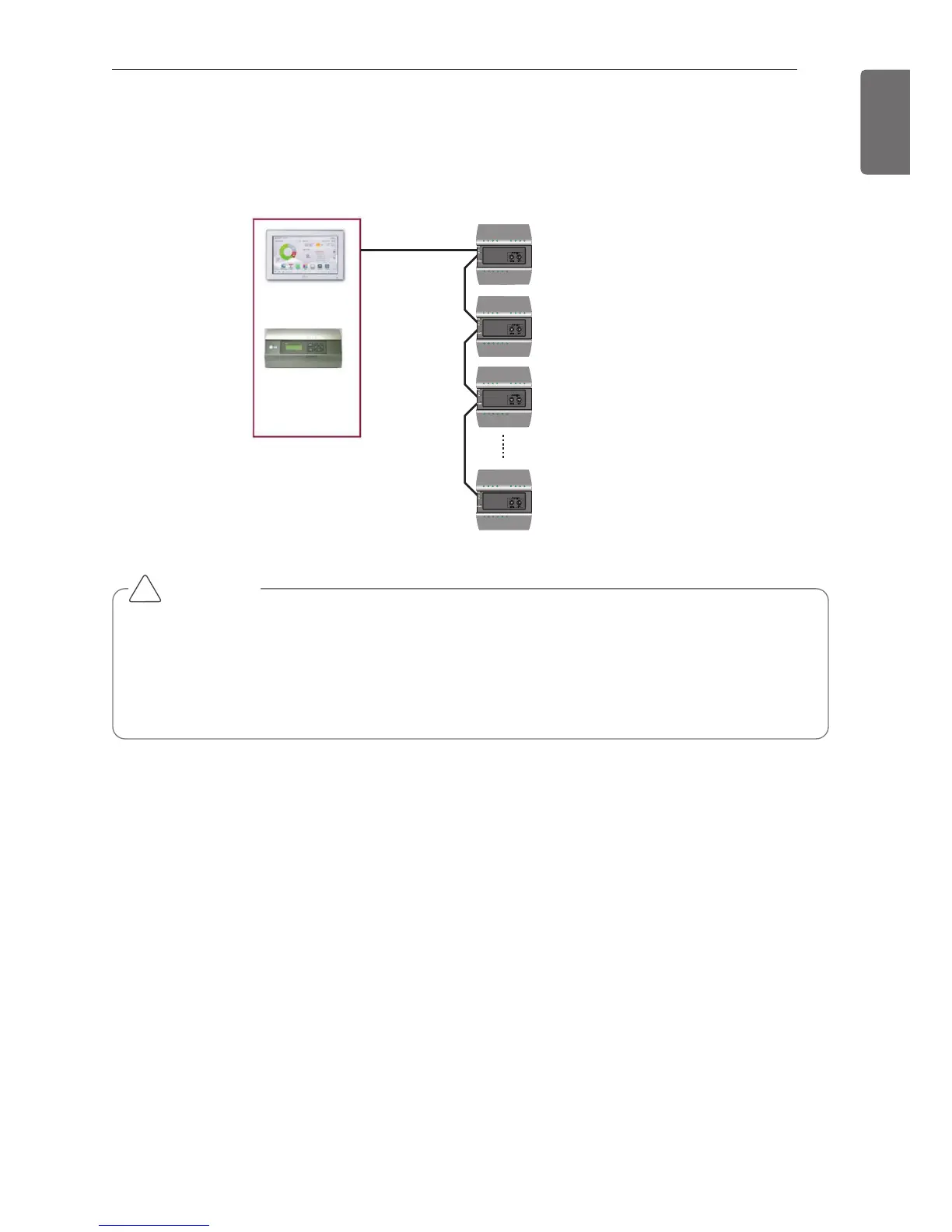

Recommended address
• Recommended address range : 20~2F
• Valid address range : 01~F7
Address : 0x20
Address : 0x21
Address : 0x22
Address : 0x2F
AC Smart IV
ACP IV
ACS IV Controller
AO1 AO2 AO3 AO4
DO1 DO2 DO3 DI1 DI2 DI3
UI1 UI2 UI3 UI4
ACS IO Module
AO1 AO2 AO3 AO4
DO1 DO2 DO3 DI1 DI2 DI3
UI1 UI2 UI3 UI4
ACS IO Module
AO1 AO2 AO3 AO4
DO1 DO2 DO3 DI1 DI2 DI3
UI1 UI2 UI3 UI4
ACS IO Module
AO1 AO2 AO3 AO4
DO1 DO2 DO3 DI1 DI2 DI3
UI1 UI2 UI3 UI4
ACS IO Module
CAUTION
• Please create a unique address for each module.
• Do not create an address with 00.
(00 addresses may not be created because they are used for broadcasting MODBUS com-
munications.)
• After changing the address be sure to cycle power.
!
