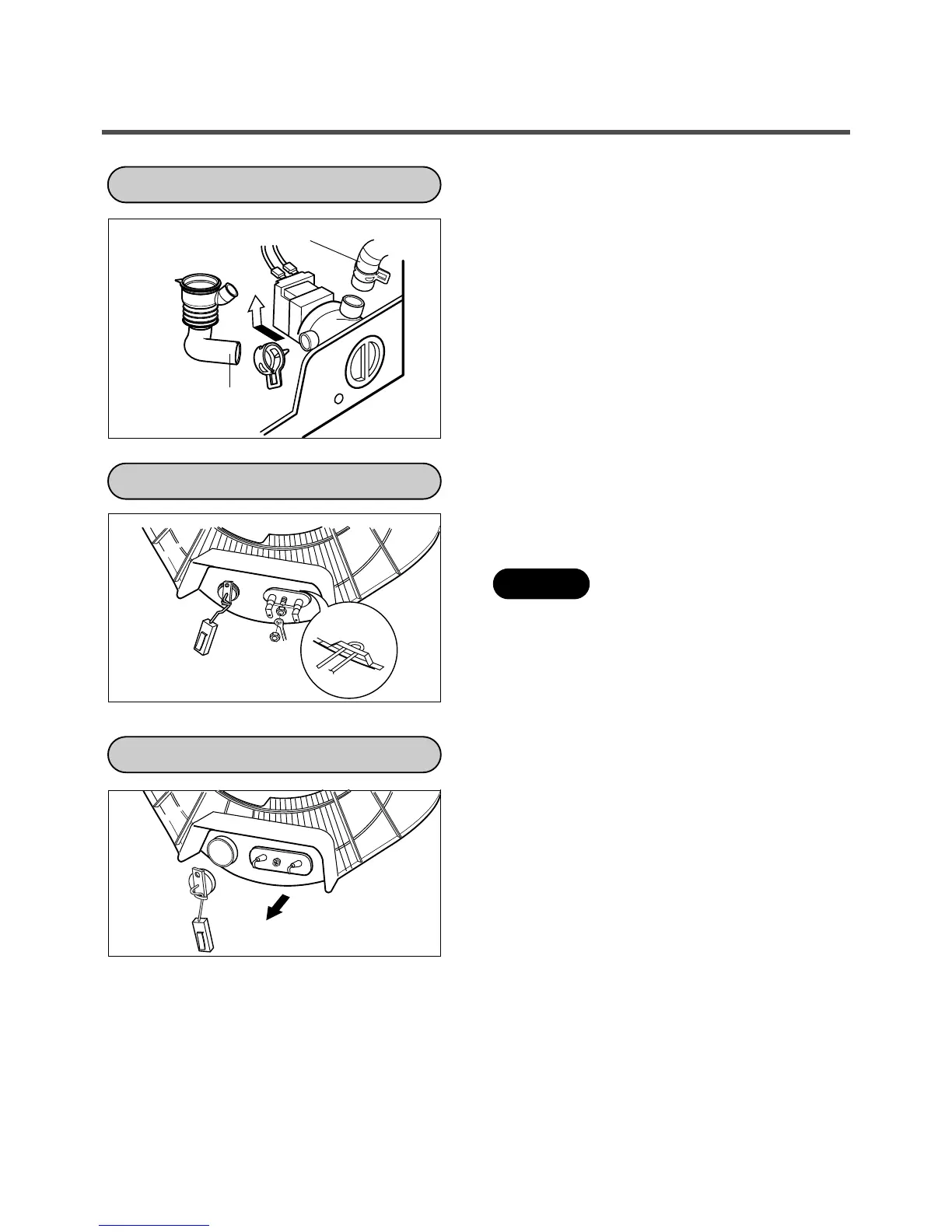

Remove pump outlet hose.
Remove tub pump bellows.
Remove cap (Remaining Hose.)
Disconnect the wiring.
Unscrew 2 screws.
Remove the pump.
Loosen the M6 heater nut to pull out the heater.
When mounting the heater, be sure to insert the heater
into the heater clip on the bottom of the tub.
Pull it out by holding the thermistor bracket.
If it is pulled by the wire, it may be broken.
When mounting the thermistor again, make sure that it
is got back tight to the bushing.
PUMP
HEATER
THERMISTOR
CAUTION
To Next Page
