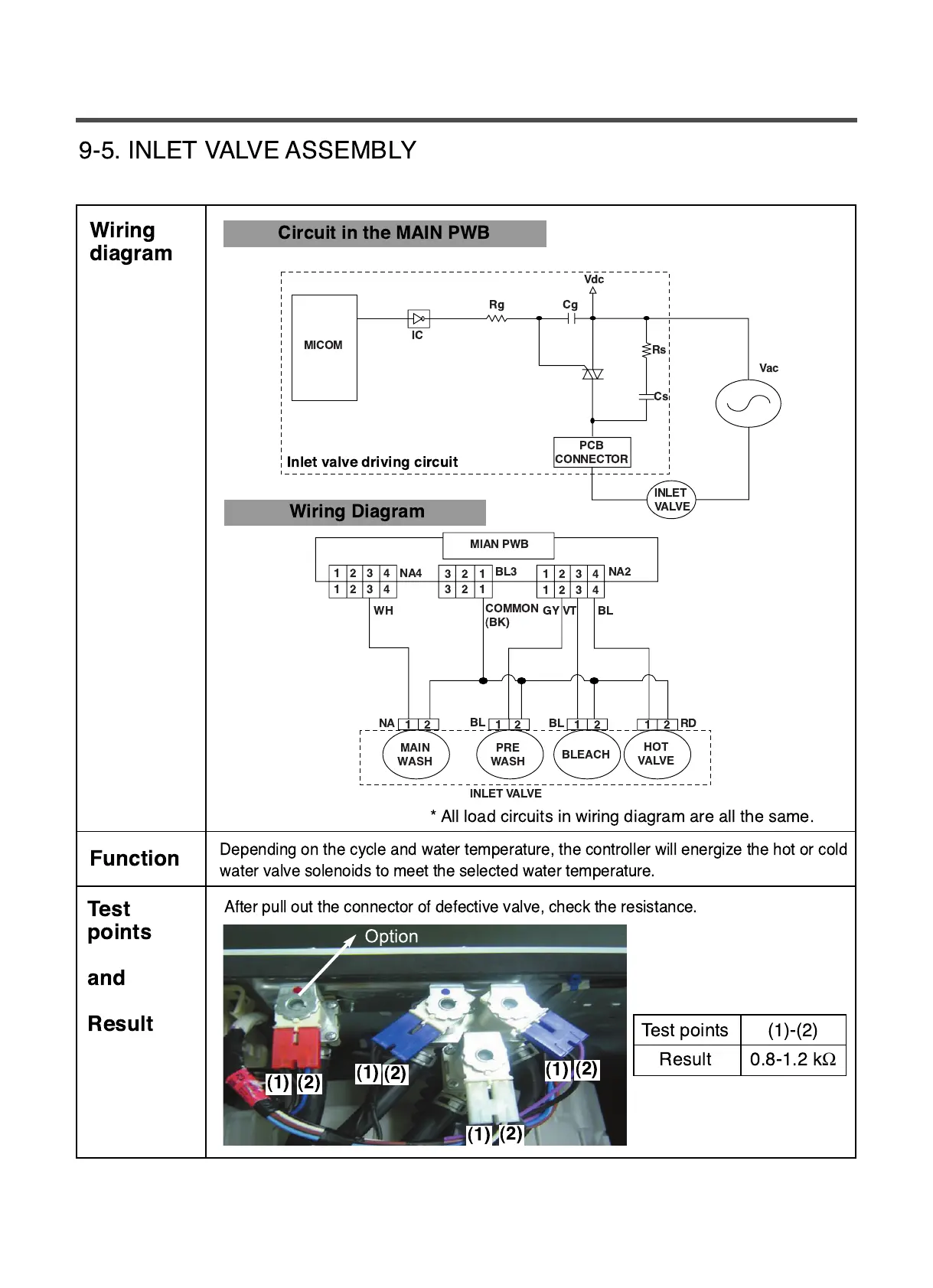

9-5. INLET VALVE ASSEMBLY


    











   





Depending on the cycle and water temperature, the controller will energize the hot or cold
water valve solenoids to meet the selected water temperature.
After pull out the connector of defective valve, check the resistance.
Test points (1)-(2)
Result 0.8-1.2 k
 !

"#

"#
#
#

$% $% $% $%
!



#
&
'(  
 %)
&)%$
$%)
$%)
&)%$
&)%$
&)%$

*+,
 

* All load circuits in wiring diagram are all the same.
*$,
*%,
*$,
*%,
*$,
*%,
*$,
*%,
