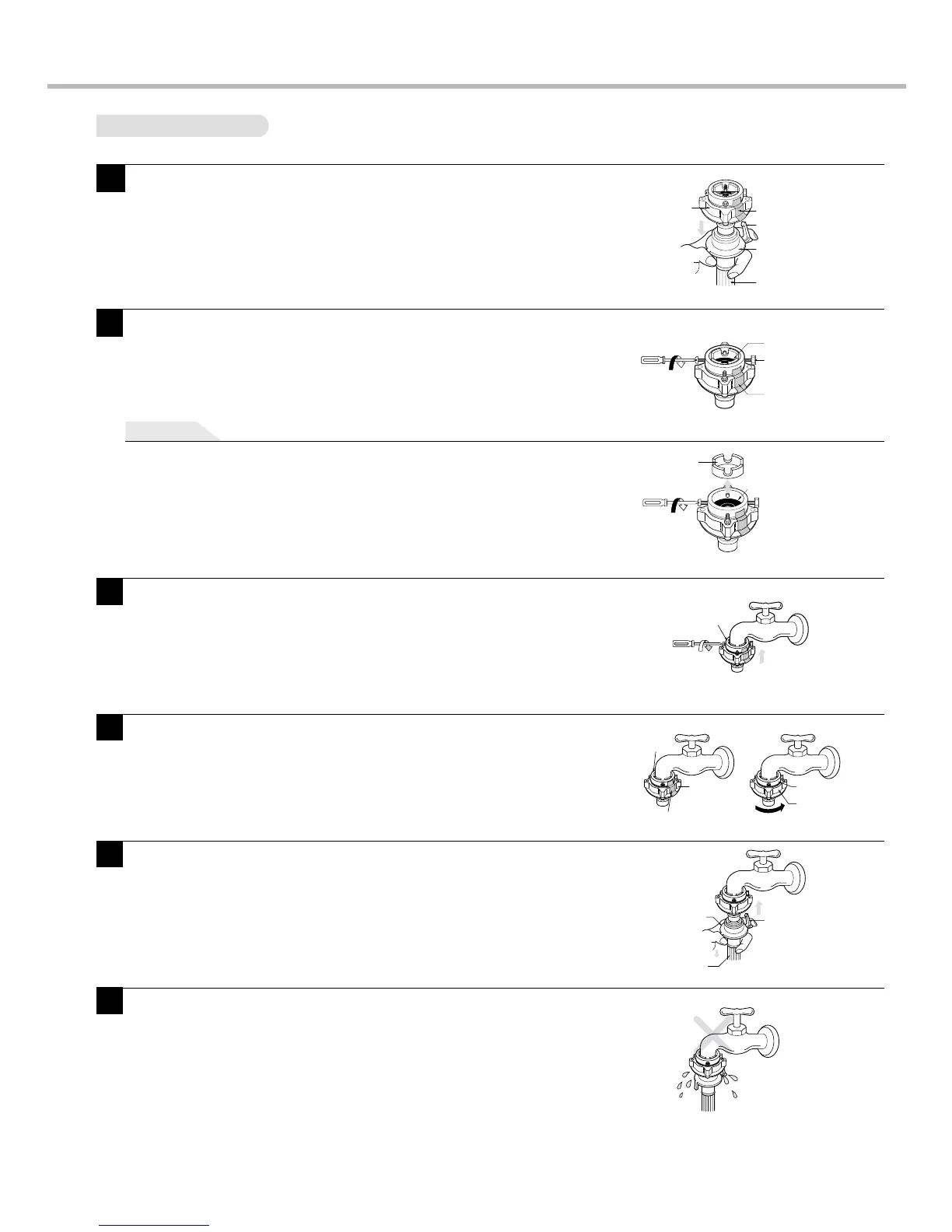

One Touch Type
1
2
3
4
5
6
Note
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water Supply Hose by
pulling the Pressing Rod and the Pressing Handlre that is
attached to the Water Supply Hose.
Fixed Sticker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can be placed
in middle.
In case tap is too large.
If the tap diameter is too large or is square, untighten the
4 screws and remove the guide plate. Then follow
step1.
Rubber packing
Screw
Fixed sticker
Guide plate
Rubber packing
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in
tight contact with the tap. Then tighten the 4 screws.
Connector
Fixing Upper Connector and Middle Connector
Push the upper connector up till the rubber packing is in
tight contact with the tap. Then tighten the 4screws.
Connector
Fixed sticker
Middle
Connector
Middle
Connector
Connector
Connecting Middle Connector and water Supply Hose
Press down the pressing rod of the Water Supply
Hose which was separated from middle connector (refer
to Step 1) and then join it to the middle connector.
Pressing handle
Pressing Rod
Water Supply Hose
Check for water leakage
After connecting the hose, open the tap to check for any
water leakage.
If the connection leaks, close the tap and start again
from step 1.
If you skip step 1, water leakage may occur.
(Normal tab without thread & one touch type inlet hose.)

LG WFT15D81E(H)P Specifications

General

POWER SOURSE	Refer to rating label on the back of Washer
AUTO POWER OFF	Applied
INPUT	Refer to rating label on the back of Washer
CAPA CITY	Refer to rating label on the back of Washer
SPIN SPEED	220 ~240 V / 50Hz : 680 50 110~127 V / 60Hz : 680 50 220 V / 60Hz : 730 50
INNER TUB	Stainless
LINT FILTER	Single
SOFTENER DISPENSER	Applied
DETERGENT DISPENSER	Applied
BLEACH INILET	Applied
ADDITIVES DISPENSER	Applied
INLET WATER PRESSURE	0.3kgf/cm2 ~ 8kgf/cm2
WATER LEVEL	9 Stages
PROGRAM	Fuzzy, Hand Wash, Heavy, Delicate, Wool, Eco Save, Wash Only, Quick Wash, Rinse / Spin, Spin Only
RESERVATION	Available for 3~ 48 Hr
UNBALANCE SWITCH	B.P Sensor
LID INTERLOCK SWITCH	Magnet Sensor
CHILD LOCK	Applied

Weight and Dimensions

DIM.	Refer to rating lavel on the back of Washer
WEIGHT	Refer to rating lavel on the back of Washer
