4-4. ADJUSTMENT

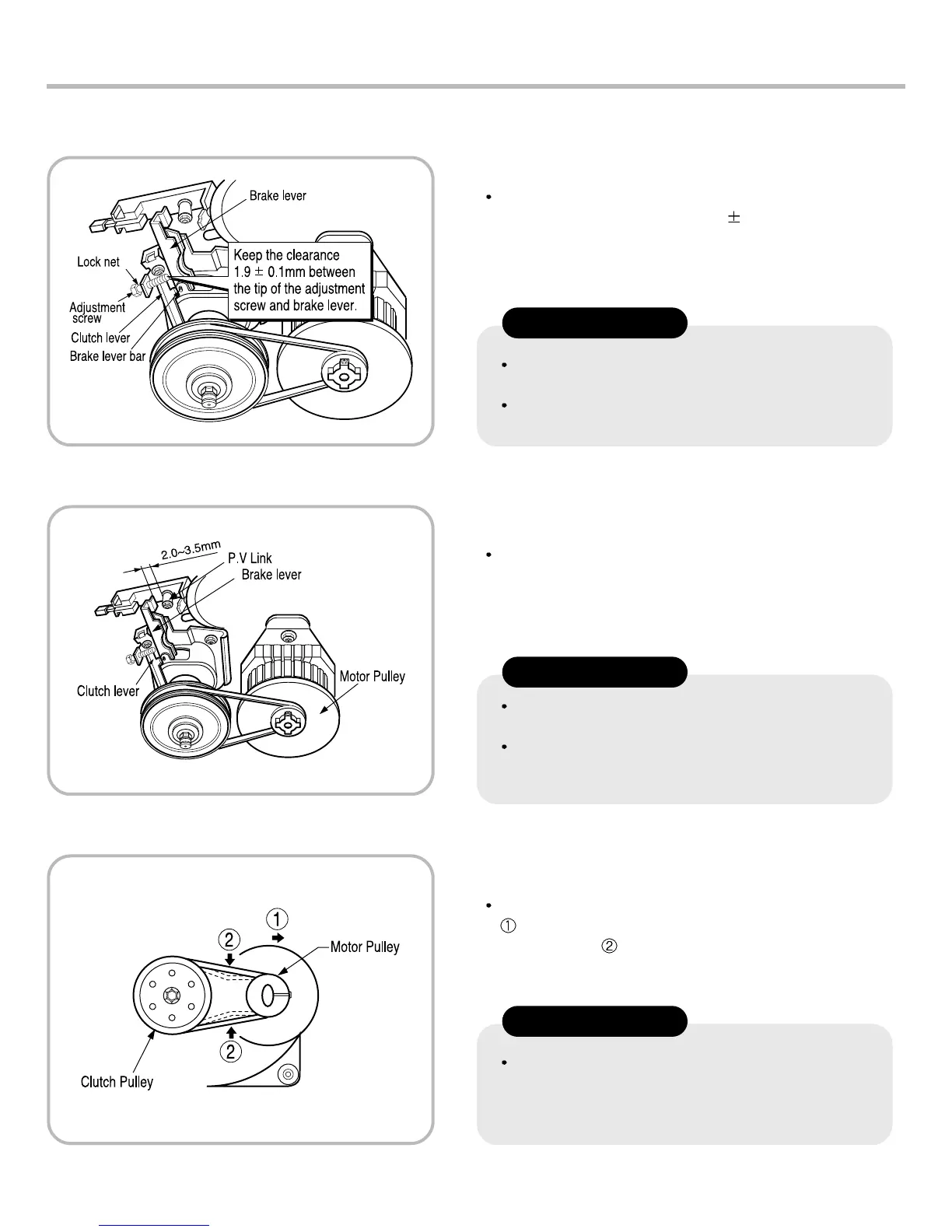

1) Brake lever adjustment
Shown as in the figure, untighten the adjustment screw
to keep clearance less than 1.9
0.1mm between the
tip and the brake lever. And turn on the lock nut then
paint it red.
Painting part is adjusted in factory, it does not
need adjusting.
Adjust the screw properly if the brake doesn't
work during spin.
Clutch pulley must be turning to one side P.V
Link is pulling the brake Lever.
Clutch pulley must be turning to the left and the
right when P.V Linke does not pull the brake
Lever.
When the V-belt is not properly adjusted, the
motor will not be running or the belt will be
slipping.
2) Keeping clearance
Keep the clearance about 2.0 ~ 3.5 mm between brake
lever and P.V link as shown in the figure.
3) V-belt adjustment
Adjust the motor pulley by pushing the motor like arrow
, to make V-belt tension parallel when pushed at the
point of arrow
.
CAUTION
CAUTION
CAUTION

LG WFT15D81E(H)P Specifications

General

POWER SOURSE	Refer to rating label on the back of Washer
AUTO POWER OFF	Applied
INPUT	Refer to rating label on the back of Washer
CAPA CITY	Refer to rating label on the back of Washer
SPIN SPEED	220 ~240 V / 50Hz : 680 50 110~127 V / 60Hz : 680 50 220 V / 60Hz : 730 50
INNER TUB	Stainless
LINT FILTER	Single
SOFTENER DISPENSER	Applied
DETERGENT DISPENSER	Applied
BLEACH INILET	Applied
ADDITIVES DISPENSER	Applied
INLET WATER PRESSURE	0.3kgf/cm2 ~ 8kgf/cm2
WATER LEVEL	9 Stages
PROGRAM	Fuzzy, Hand Wash, Heavy, Delicate, Wool, Eco Save, Wash Only, Quick Wash, Rinse / Spin, Spin Only
RESERVATION	Available for 3~ 48 Hr
UNBALANCE SWITCH	B.P Sensor
LID INTERLOCK SWITCH	Magnet Sensor
CHILD LOCK	Applied

Weight and Dimensions

DIM.	Refer to rating lavel on the back of Washer
WEIGHT	Refer to rating lavel on the back of Washer
