LG WFT15D81E(H)P User Manual

35
Inlet Valve
ASM
Pipe
Connector
Hose
Pressure
Pipe

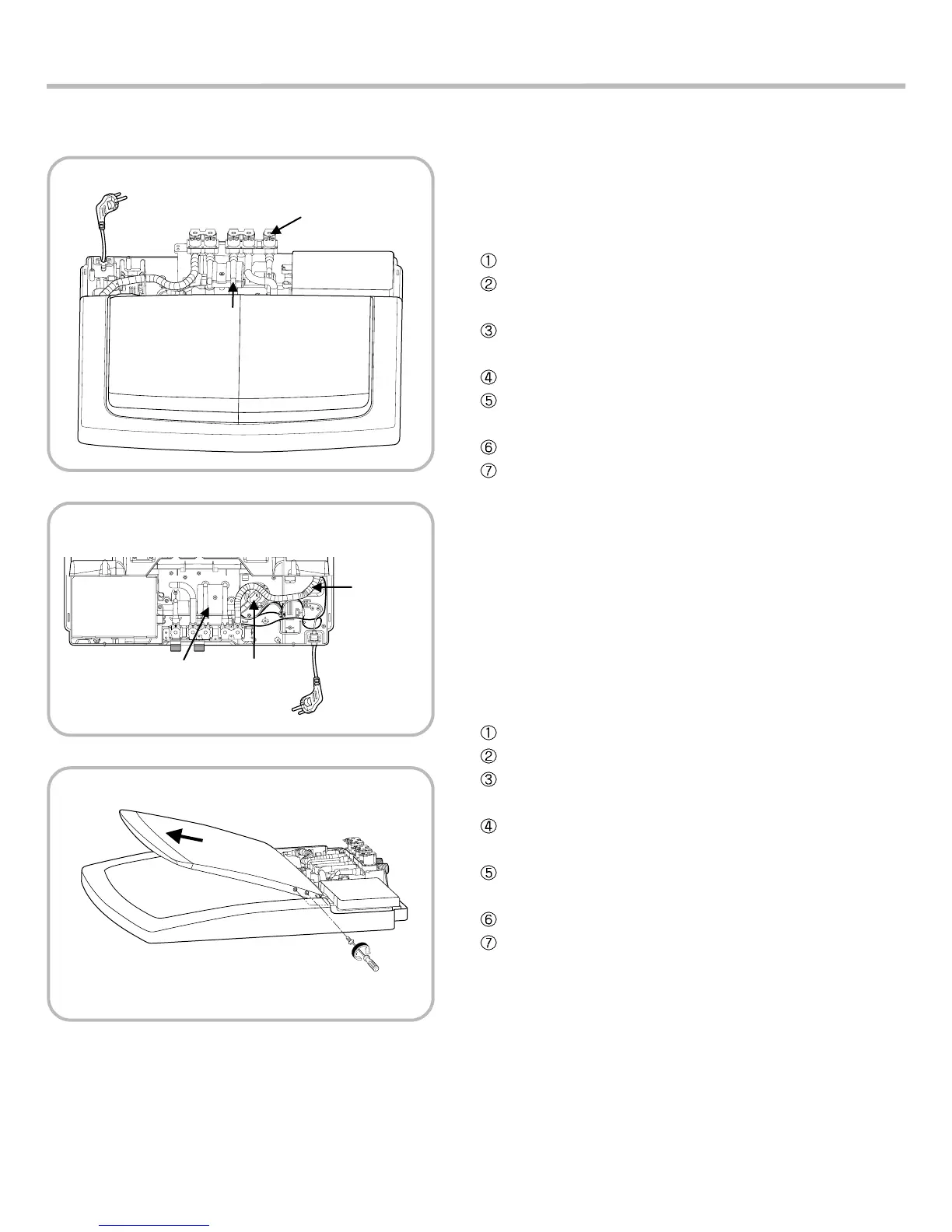

2) Disassembly of Power Cord, Inlet
Valve ASM, D.T Housing ASM and
Pressure Switch.
Disassemble back panel.
Disconnect three connectors ans disassemble the
power cord.
Remove two pipe fixing screws and three inlet valve
screws.
Disconnect the leads from the inlet valve.
Separate the pipe and the connector hose from the inlet
valve.
Remove the inlet Valve.
Disconnect the leads & pressure tube from the BP
sensor.
3) Disassembly of Lid Assembly, Top
Cover, Tub Cover, Pulsator & Inner Tub
Remove three lid fixing screws
Disassemble the Lid Assembly in arrow direction.
Remove two top cover fixig screws in the rear then
disassemble the top cover.
Remove the tub cover fixing screws then disassemble
tup cover.
Remove the pulsator fixing screws then disassemble the
pulsator.
Remove the hub fixing nut by a special tool.
Disassemble the inner tub.

LG WFT15D81E(H)P Specifications

General

POWER SOURSE	Refer to rating label on the back of Washer
AUTO POWER OFF	Applied
INPUT	Refer to rating label on the back of Washer
CAPA CITY	Refer to rating label on the back of Washer
SPIN SPEED	220 ~240 V / 50Hz : 680 50 110~127 V / 60Hz : 680 50 220 V / 60Hz : 730 50
INNER TUB	Stainless
LINT FILTER	Single
SOFTENER DISPENSER	Applied
DETERGENT DISPENSER	Applied
BLEACH INILET	Applied
ADDITIVES DISPENSER	Applied
INLET WATER PRESSURE	0.3kgf/cm2 ~ 8kgf/cm2
WATER LEVEL	9 Stages
PROGRAM	Fuzzy, Hand Wash, Heavy, Delicate, Wool, Eco Save, Wash Only, Quick Wash, Rinse / Spin, Spin Only
RESERVATION	Available for 3~ 48 Hr
UNBALANCE SWITCH	B.P Sensor
LID INTERLOCK SWITCH	Magnet Sensor
CHILD LOCK	Applied

Weight and Dimensions

DIM.	Refer to rating lavel on the back of Washer
WEIGHT	Refer to rating lavel on the back of Washer
