Tub cover
Inner tub
Hub fixing nut
Leads
Drain Hose-p
Pump fixing screw

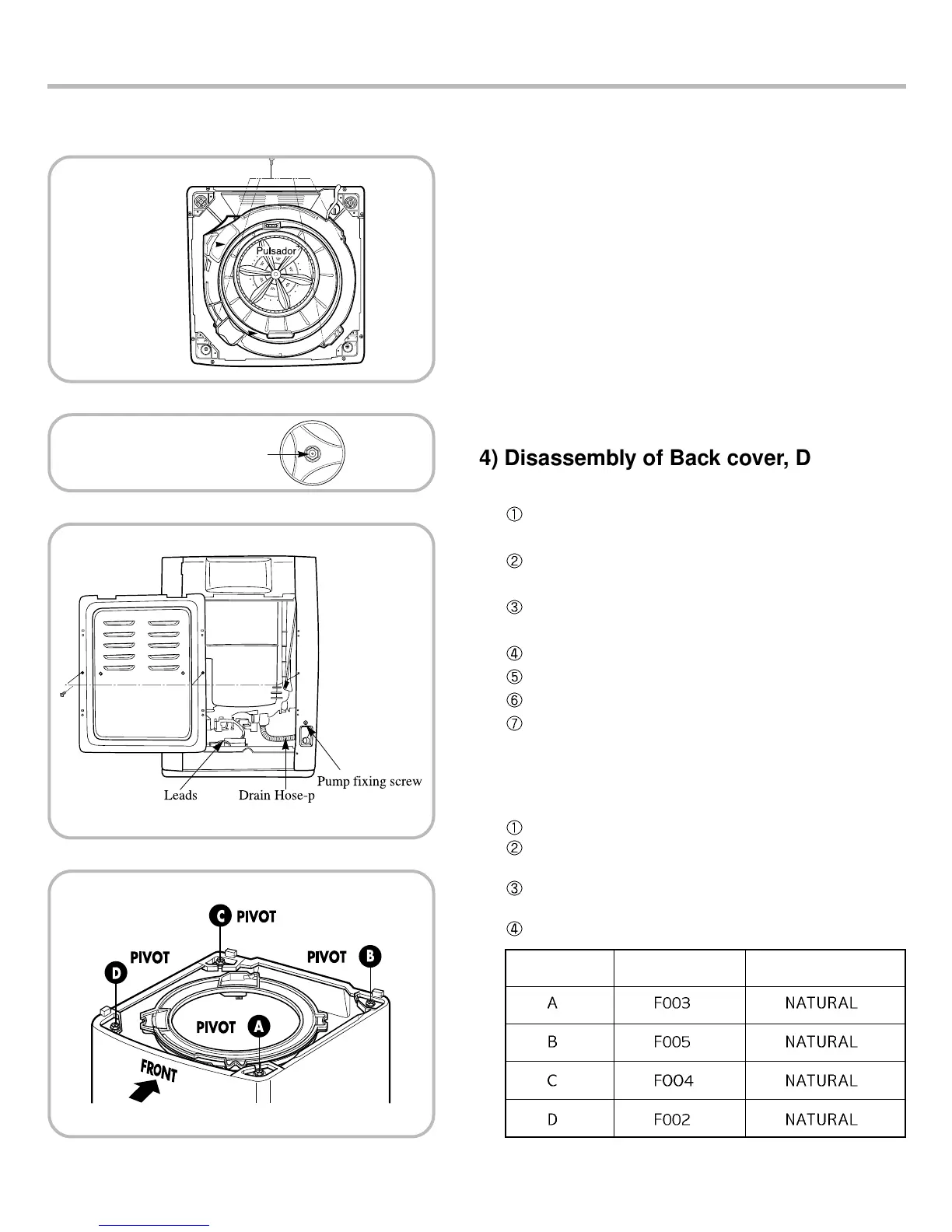

4) Disassembly of Back cover, Drain
Pump, Clutch(Transmission) & Motor
Remove back cover fixing screws then disassemble
the back cover.
Disconnect the leads and the drain hose-p from the
drain pump.
Remove the pump fixing screws and the connector
hose disassemble the drain pump.
Fall down the washer for clutch & motor removal.
Remove the belt.
Disassemble the clutch.
Remove two motor fixing screws then disassemble
the motor.
5) Replacement of Damper asm
Separate top cover from washing machine.
As in the fig, lift snubber bar and take it out of out
case with out tub.
Damper assembly shall not be disassembled.
Replace damper as assembly.
For assembly, keep the following.(Location & color)
Location P/No. PIVOT(Color)

LG WFT15D81E(H)P Specifications

General

POWER SOURSE	Refer to rating label on the back of Washer
AUTO POWER OFF	Applied
INPUT	Refer to rating label on the back of Washer
CAPA CITY	Refer to rating label on the back of Washer
SPIN SPEED	220 ~240 V / 50Hz : 680 50 110~127 V / 60Hz : 680 50 220 V / 60Hz : 730 50
INNER TUB	Stainless
LINT FILTER	Single
SOFTENER DISPENSER	Applied
DETERGENT DISPENSER	Applied
BLEACH INILET	Applied
ADDITIVES DISPENSER	Applied
INLET WATER PRESSURE	0.3kgf/cm2 ~ 8kgf/cm2
WATER LEVEL	9 Stages
PROGRAM	Fuzzy, Hand Wash, Heavy, Delicate, Wool, Eco Save, Wash Only, Quick Wash, Rinse / Spin, Spin Only
RESERVATION	Available for 3~ 48 Hr
UNBALANCE SWITCH	B.P Sensor
LID INTERLOCK SWITCH	Magnet Sensor
CHILD LOCK	Applied

Weight and Dimensions

DIM.	Refer to rating lavel on the back of Washer
WEIGHT	Refer to rating lavel on the back of Washer
