WM3677 COMBO Page 15 of 68 TRAINING MANUAL

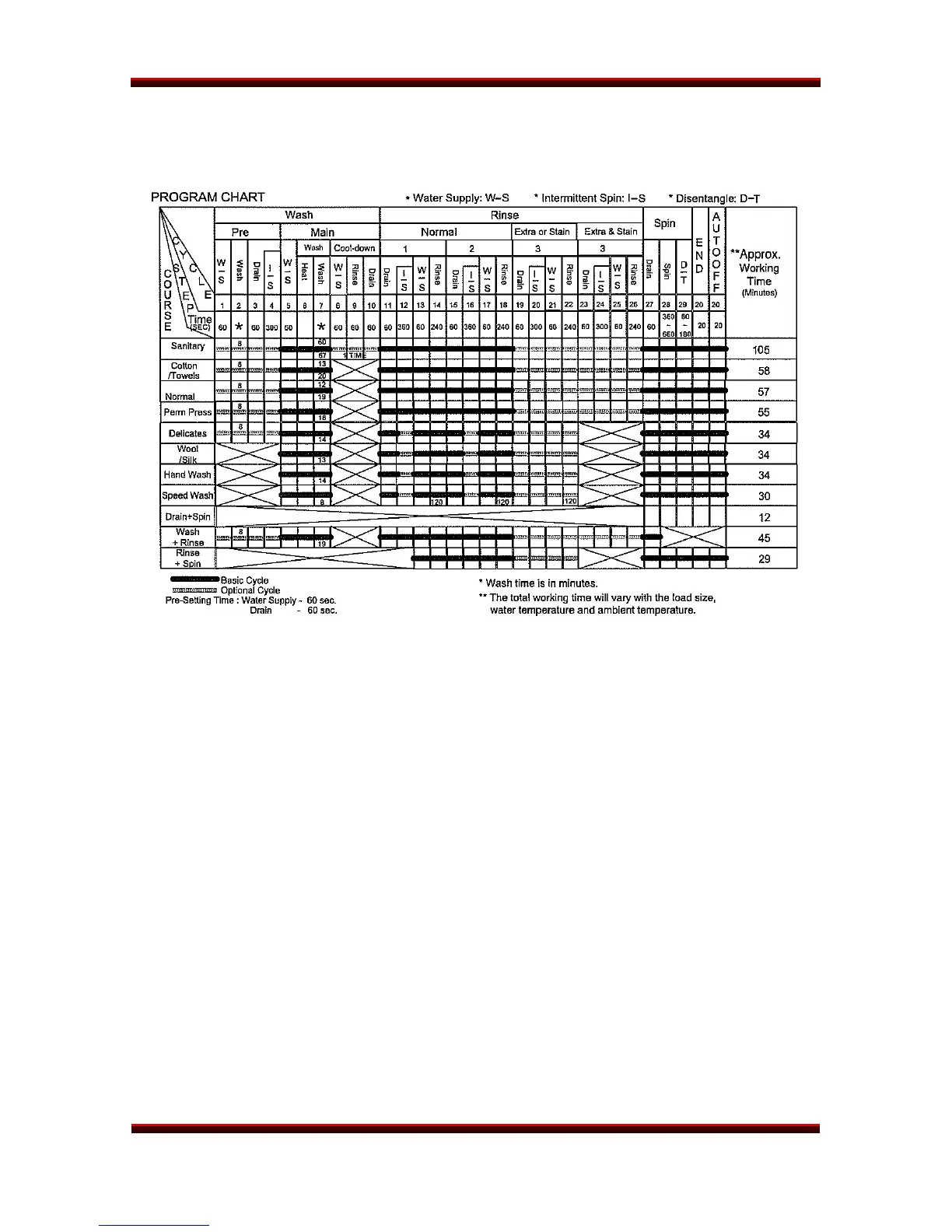

PROGRAM CHART (WASHING)
This chart shows the components and their times of operation in the various
wash cycles. Remember that this time estimate is for the basic cycles before the
fuzzy logic adjustments are made.
The dryer can be set to dry for a specific time (30/60/90/120 minutes) or it can
use a sensor to determine when the clothes are dry.
BEFORE PERFORMING SERVICE
• Be careful to avoid electric shock when disconnecting parts for
troubleshooting.
• Most terminals in the COMBO have 120 VAC or DC on them.
