WM3677 COMBO Page 41 of 68 TRAINING MANUAL
DOOR

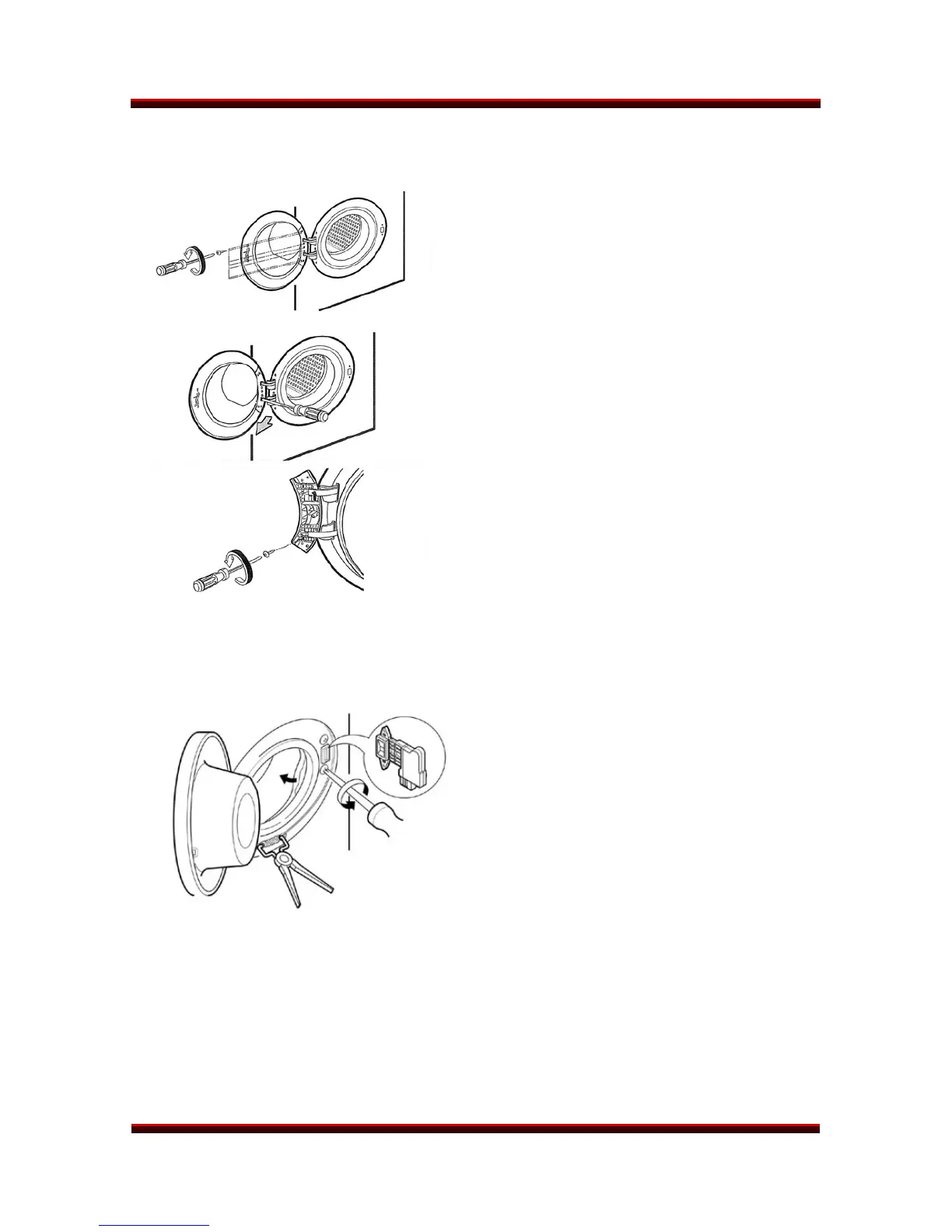

1. Open the door.
2. Remove the seven screws from
the hinge cover.
3. Put a flat screwdriver into the
hinge opening and gently pry
off the hinge cover.
4. Remove the screw from the
lower hinge pin.
5. Lift the door off the hinge.
BE CAREFUL! The door is heavy!
DOOR LOCK SWITCH ASSEMBLY
1. Open the door.
2. Using the special pliers,
remove the gasket clamp.
3. Remove the screws.
4. Pull the switch out and
disconnect the wiring harness.
NOTE! Be sure you reconnect
the wires when you
replace the switch.
