WM3677 COMBO Page 16 of 68 TRAINING MANUAL
DETERGENT DISPENSER

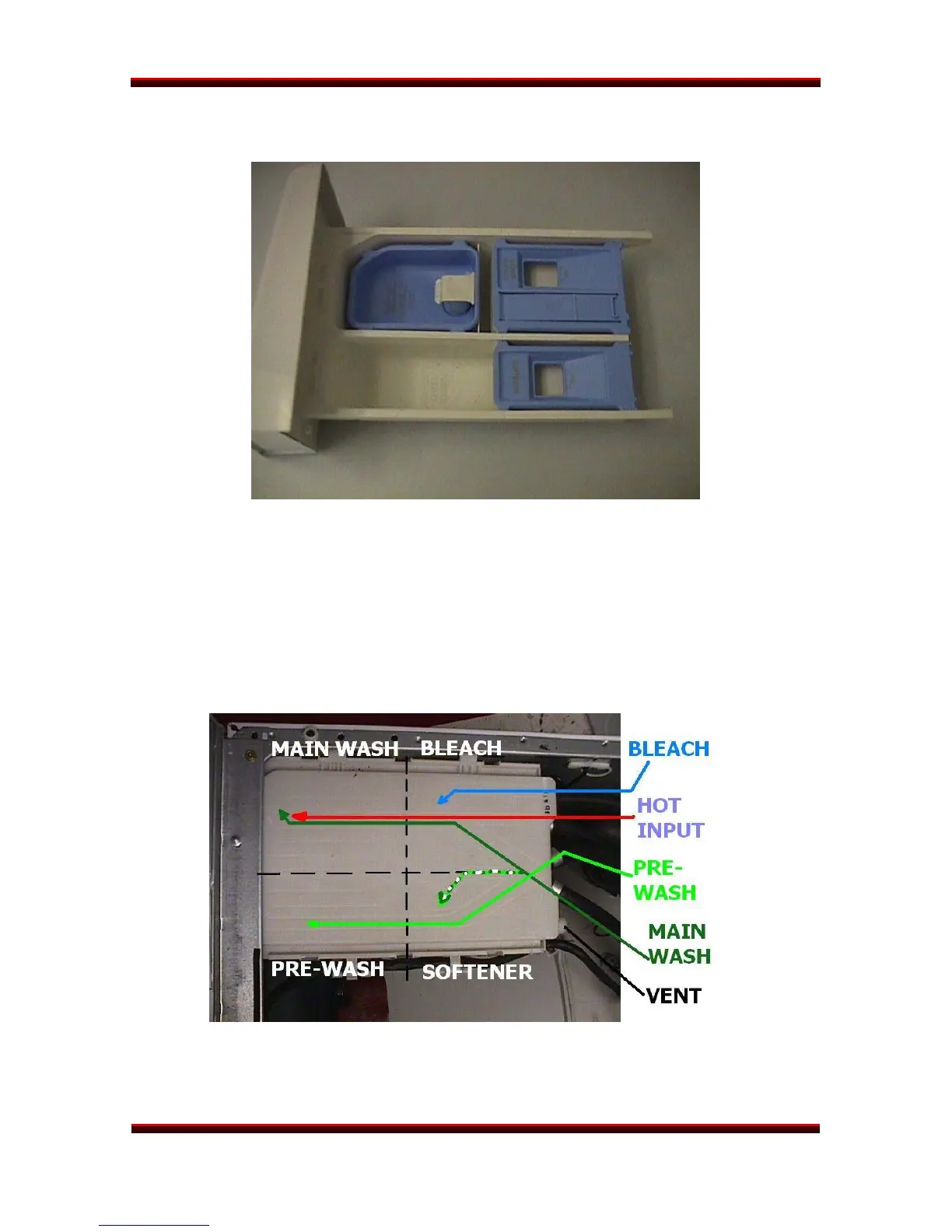

The dispenser drawer is a multi-chambered reservoir that allows the user to add
all the appropriate laundry additives before starting the cycle. It has a place for
pre-wash detergent, main wash detergent, fabric softener, and bleach. Powdered
or liquid detergents may be used, but softener and bleach must be liquids.
Detergents should carry the HE designation. Do not use regular detergents in the
combo or oversudsing will occur.
The top of the dispenser box is shown here.
The dispenser works by using various solenoids to apply water to different
compartments. The liquid products are dispensed from a siphon box. As the
appropriate chamber is flooded, the box fills and the water flushes the laundry
