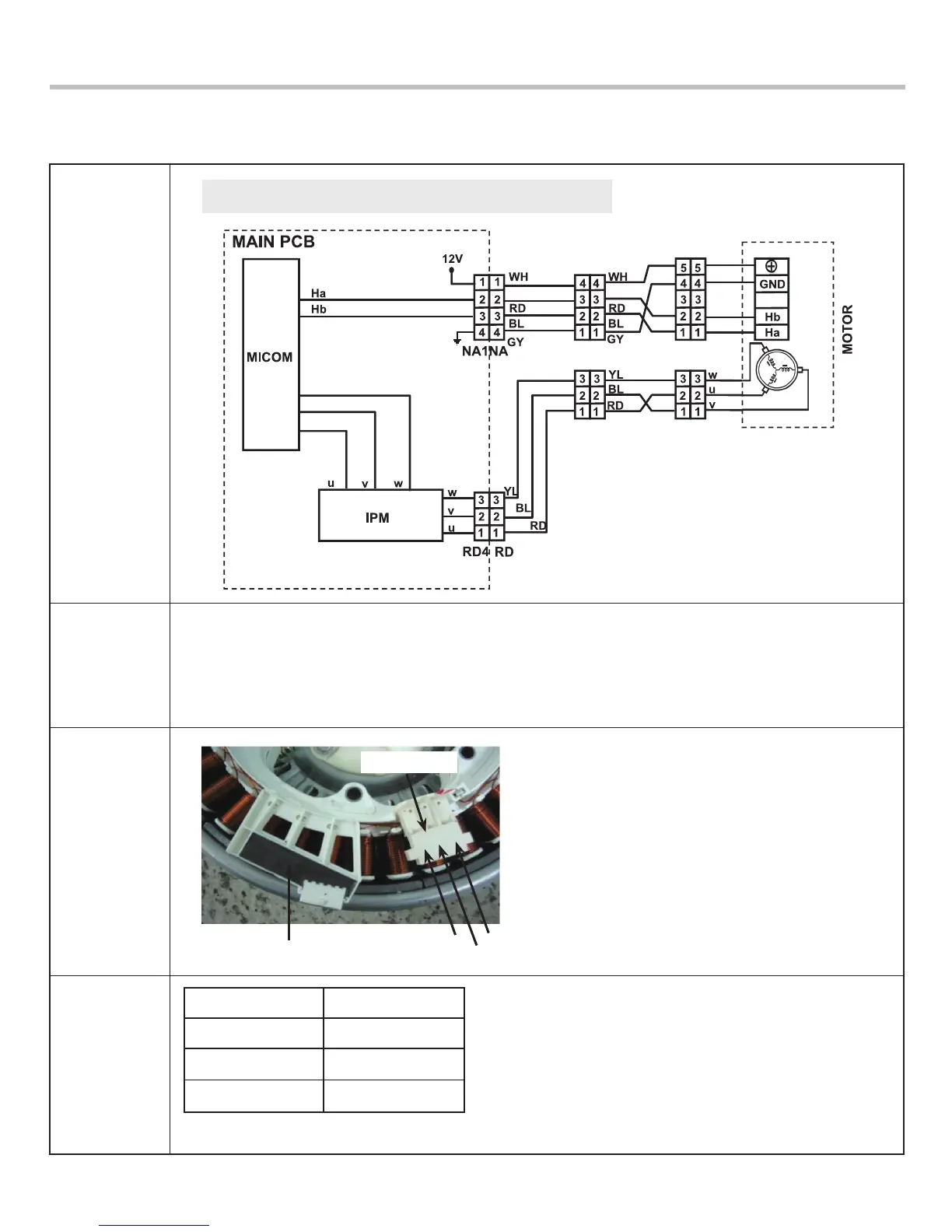

5-3. STATOR ASSEMBLY
43
Wiring
diagram
Function
Test points
(Windings)
Result
(Windings)
Circuit in the MAIN PCB / Wiring Diagram
The DD motor can be driven from stopped to maximum speed in infinite steps in either direction.
There are 36 poles on the stator; 12 permanent magnets spaced around the rotor. There are no
brushes to wear out. Unlike a more traditional brushless motor, the rotor surrounds the stator
rather than being attached to it.
Result
5-15 Ω
5-15 Ω
5-15 Ω
Test Points
(1) to (2)
(2) to (3)
(3) to (1)
WINDINGS
(1)
HALL SENSOR
(3)
(2)

LG WT1101CW Specifications

General

Style	Top-Loading
Color	White
Washer Capacity	4.1 cu ft
Dryer Capactity	-
Max Spin Speed	1100 RPM
Spin Speeds	No Spin)
Spin Class	C
Number of Cycles	8
Cycle Selections	Soak
Wash	Quick Wash
Options	prewash
No spin and No heat	Child lock (With LED)
Hours	My Cycle
Noise level	-
Temperature Selections	Cool)
Internal Heater	no
Control Panel	electronic
Delay Start / End	yes
Child Lock	yes
Cycle Signal	yes
Steam	no
Energy Class	-
Annual Energy Consumption	-
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120 V
Frequency	-
Current	10 A

Weight and Dimensions

Depth	28-3/8 in
Height	40-5/32 in
Width	27 in
Net Weight	132 lbs
