During typical operation at 15 SLPM, the blower motor drive runs at about 25%.
Measured flow is still given in SLPM or LPM.
Click Apply to send any changes to the 7200-101 for implementation.
Monitoring Flow Rate

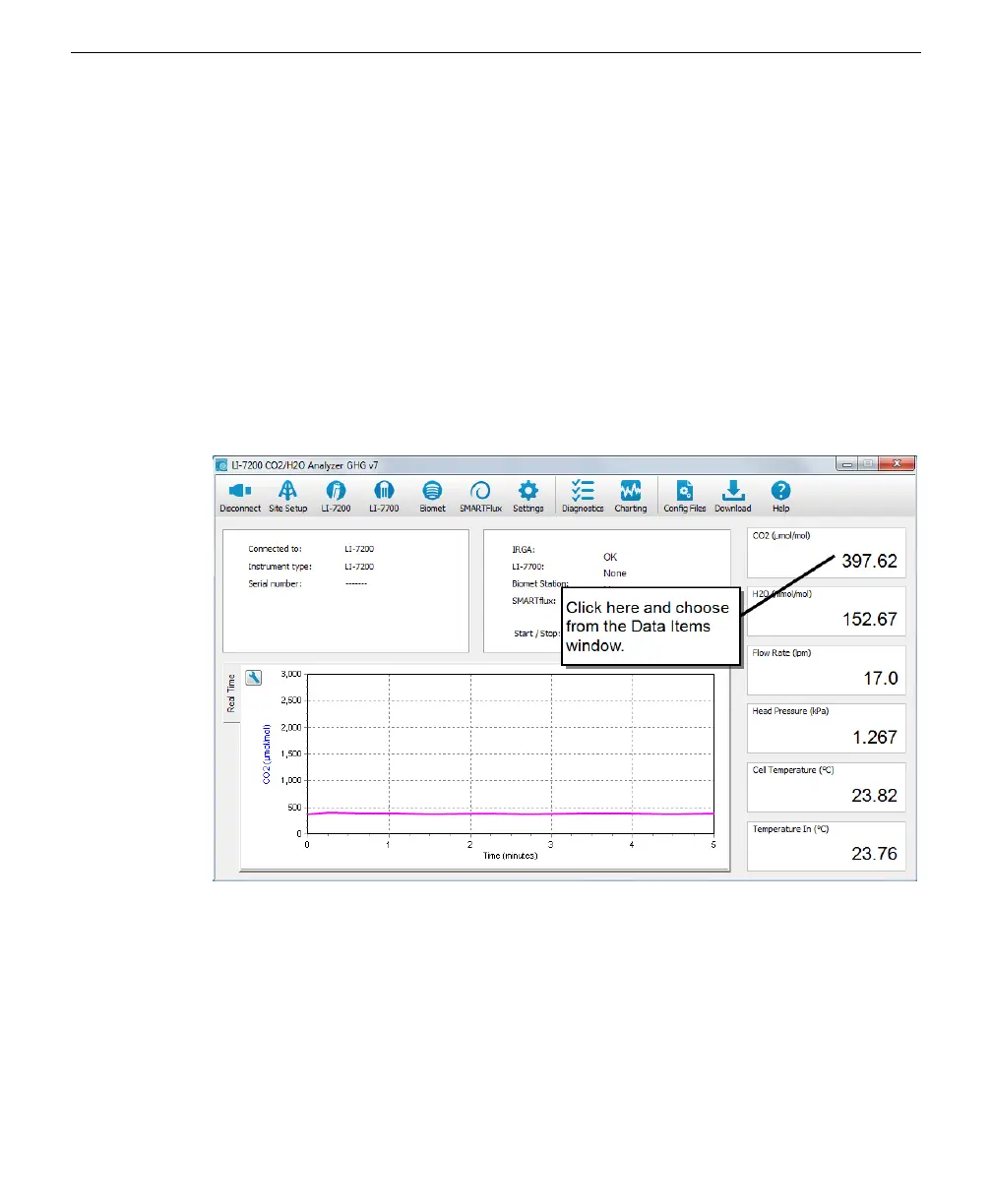

Flow variables can be monitored in the dashboard (below). Click on any variable in
the dashboard to open the Data Items window, where you can select from Flow
Pressure (kPa), Flow Rate (SLPM), Flow Rate (LPM), Flow Power (V), or Flow
Drive (%). Flow Pressure (kPa) is equivalent to the Pressure Drop displayed on the
7200-101 control panel. Flow Power (V) is the voltage applied to the blower motor,
and is roughly proportional to the Motor Drive (%).
Flow variables can also be monitored in the Charting window, by choosing the
desired variable to be charted along either Y-axis (below).
Section 1. Overview of the 7200-101 Flow Module
1-11Monitoring Flow Rate
