Section 1. Overview of the 7200-101 Flow Module
Description Quantity Part Number
Hose Clamp, ½” O.D. 4 300-10788
Air Filter 1 301-10381
Air Filter Replacement Screen 2 301-10382
Accessory Cable, 5 meter, 5PF-5PM 1 392-10092
Exhaust Fitting 1 6572-047
Power Cable, 5 meter 1 9975-030
Initial Setup
This section describes basic operation of the flow module.
Powering the 7200-101
The 5-meter power supply cable included (part number 9975-030) has a circular
connector that attaches to the 7200-101 Flow Module front panel at the location
marked POWER. The other end has bare wire leads for connection to a 10.5-30
VDC supply (50 W or more capability, 2 A or greater). Connect the red lead to the
positive terminal of the power supply, and the black wire to the negative terminal.
Cabling
The 5-meter Accessory cable included (part number 392-10092) has male and
female circular connectors that attach to the 7200-101 and LI-7550 front panels,
respectively, at the connectors marked ACCESSORY.

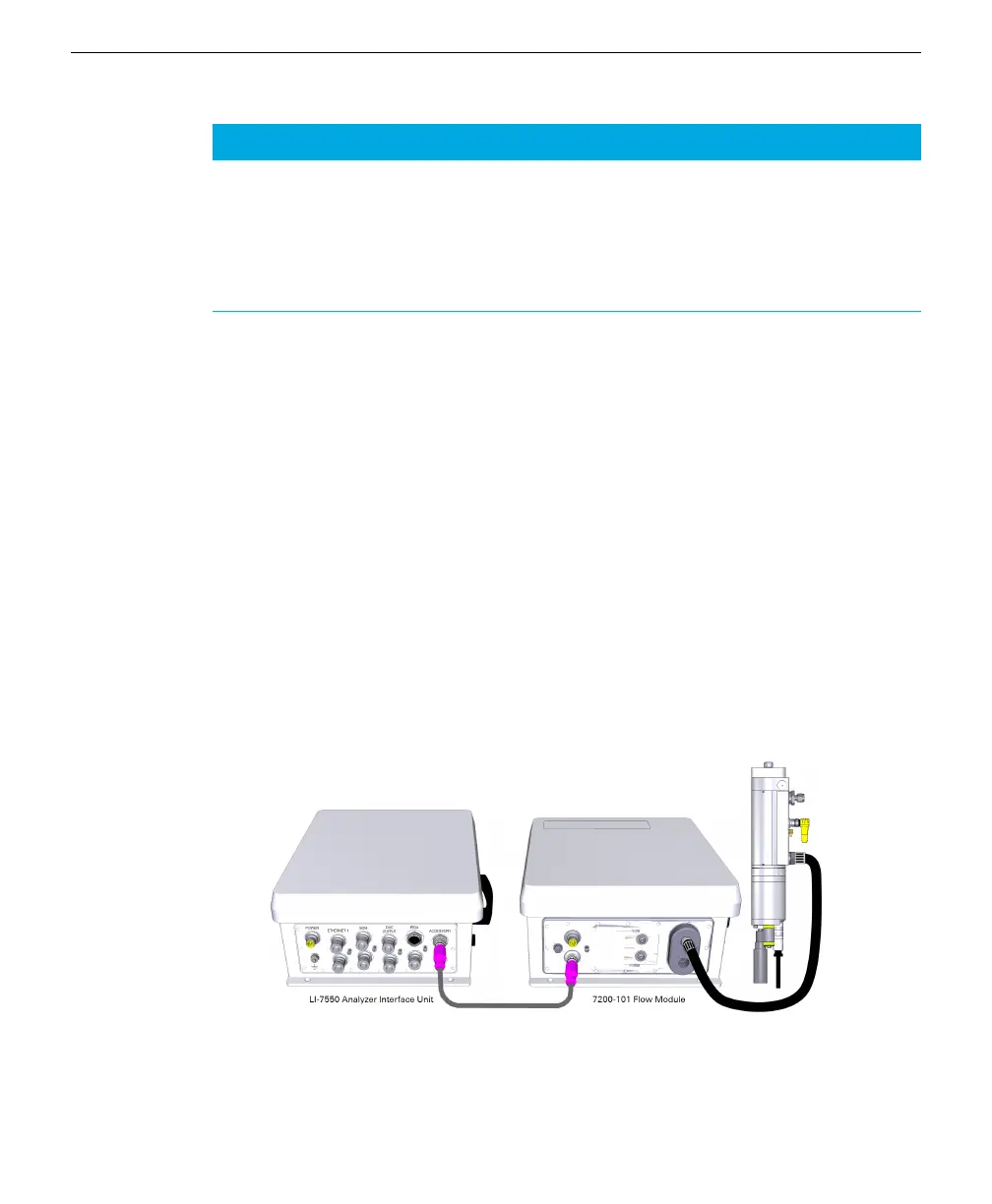

Figure 1-1. Attach the Accessory Cable to the Accessory connectors on the LI-7550 and
7200-101 front panels.
