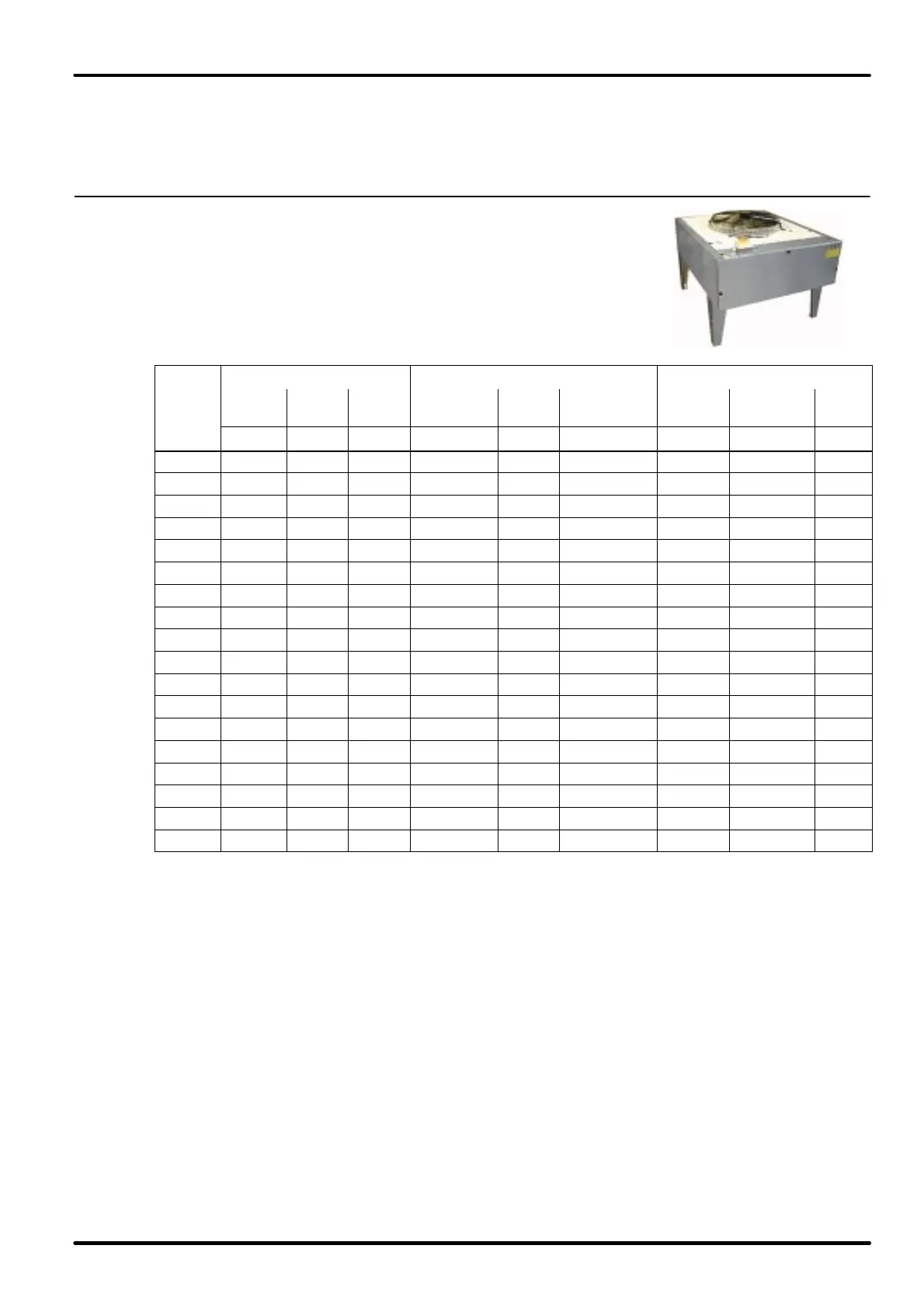

5 - Condensing section
5.1 - Air condensers
The units may be connected to a wide range of our condensers
single circuit (HCA) or double circuit (HBA).
The following paragraphs describe the suggested coupling for
Hiflex units as a function of the outdoor air temperature. The data
given below are approximate and must always be verified on the
basis of the specific performances and different operating condi
tions.
Performances Electric data Overall dimensions
Standard
Model
Duty (
d
) Air flow
SPL 5 m
Supply
Number
of fans
Total
absorbed power
Width Depth
Height
(
c
)
kW m
3
/h dB(A) V/ph/Hz nº kW mm mm mm
HCA07 7.1 1900 44 230/1/50(
a
) 1 0.18 803 451 703
HCA10 9.4 4100 47 230/1/50(
a
) 2 0.36 1253 451 703
HCA14 14.5 4430 44 230/1/50(
a
) 1 0.29 1175 797 890
HCA17 16.5 4160 44 230/1/50(
a
) 1 0.29 1175 797 890
HCA24 24.0 7950 51 230/1/50(
b
) 1 0.52 1325 1098 992
HCA29 28.3 7530 51 230/1/50(
b
) 1 0.52 1325 1098 992
HCA33 32.1 8320 47 230/1/50(
a
) 2 0.58 2125 797 890
HBA33 32.1 8320 47 230/1/50(
a
) 2 0.58 2125 797 890
HCA42 41.6 15900 54 230/1/50(
b
) 2 1.04 2425 1098 992
HCA49 47.9 15900 54 230/1/50(
b
) 2 1.04 2425 1098 992
HBA49 47.9 15900 54 230/1/50(
b
) 2 1.04 2425 1098 992
HCA58 56.6 15060 54 230/1/50(
b
) 2 1.04 2425 1098 992
HCA74 72 23850 57 230/1/50(
b
) 3 1.56 3526 1098 992
HBA74 72 23850 57 230/1/50(
b
) 3 1.56 3526 1098 992
HCA87 84.9 22590 57 230/1/50(
b
) 3 1.56 3526 1098 992
HBA87 84.9 22590 57 230/1/50(
b
) 3 1.56 3526 1098 992
HCA95 91.5 21750 57 230/1/50(
b
) 3 1.56 3526 1098 992
HBA99 113 30120 58 230/1/50(
b
) 4 2.08 4625 1098 992
