Liebert himod - Page 14

English
10
HIMOD−C

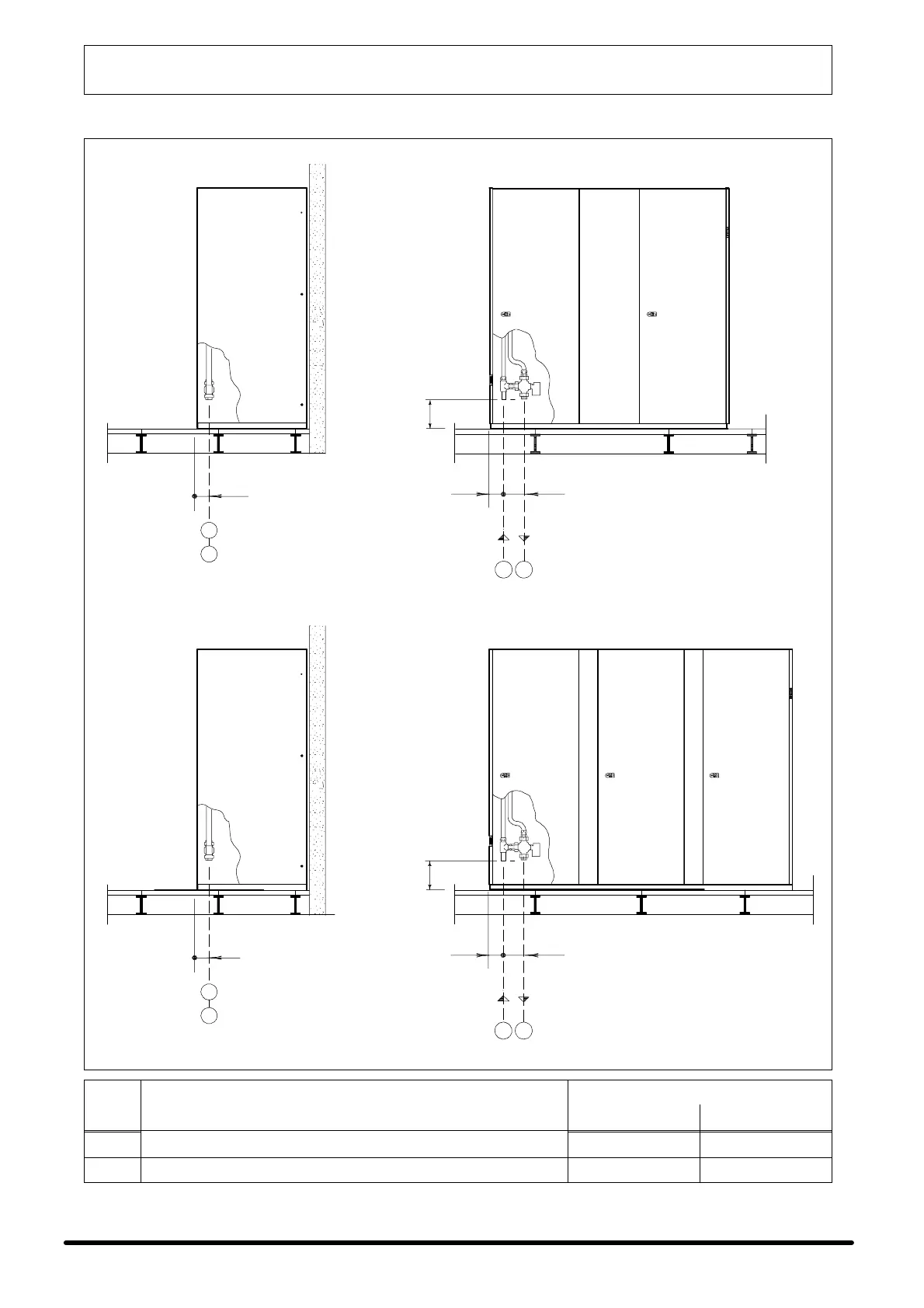

Fig. 4 − Chilled water connections
Himod C
under
BA
B
A
12−14
90 − 10
185
110
200
95
BA
180
100
200
B
A
95
Right side view
(DX)
Right side view
(DX)
Frontal view
Frontal view
POS
CONNECTION
DIMENSION
POS
.
CONNECTION
90−10 C 12−14 C
A Chilled water inlet 2 " male 2 ½" male
B Chilled water outlet 2 " male 2 ½" male
