Chapter 2 Disassembling External Package And Cabinet Plate 7
Liebert.PEX+Series Precision Air Conditioner Dissassemble Manual
1
2
3
4
5
6
Front side of cabinet

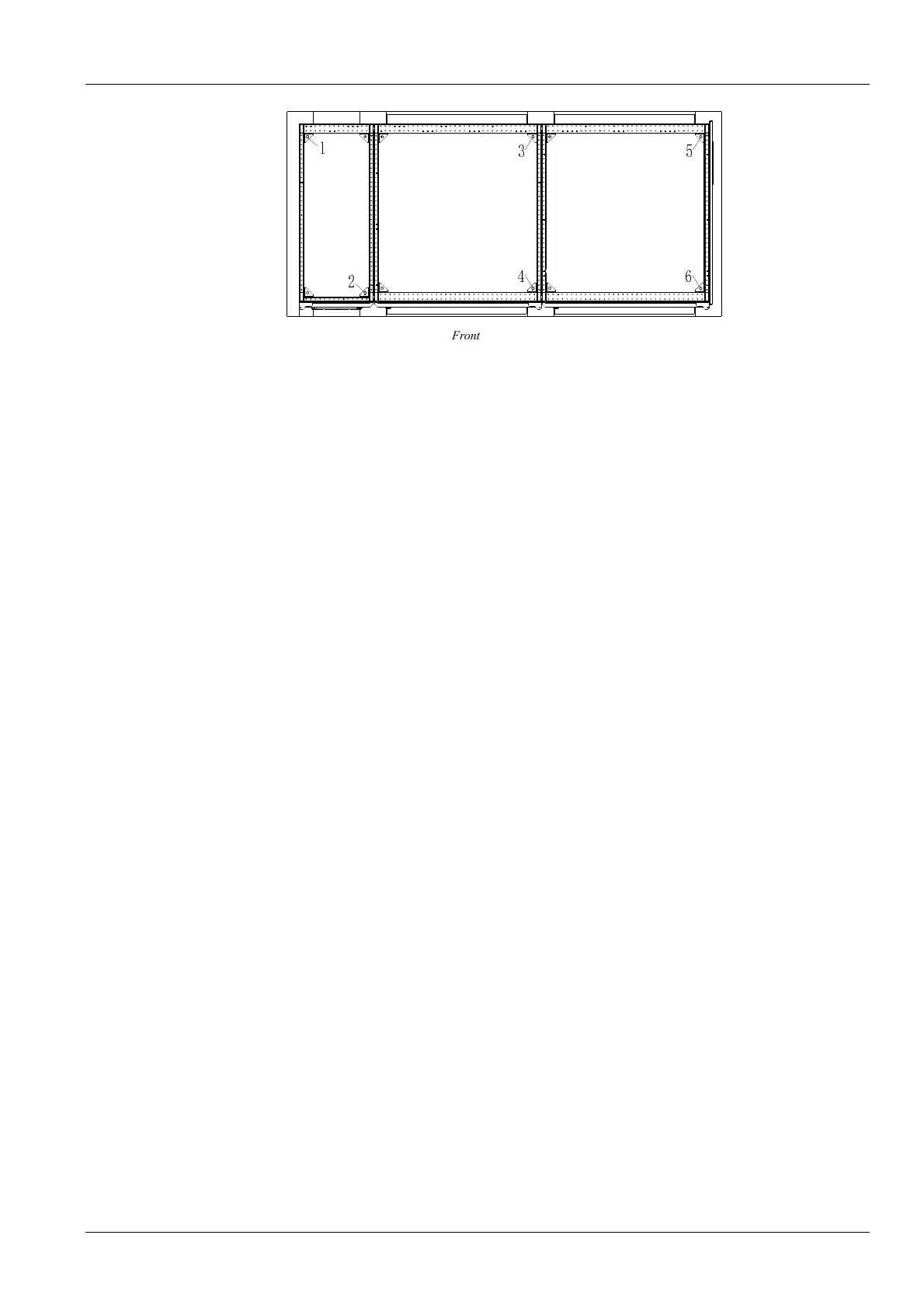

Figure 2-6 Illustration for the connection screws of the pallet of P2060~P2100 units
