Chapter 4 Disassembling Copper Pipes
Disassemble the copper pipes after disassembling the electrical parts. This chapter describes how to disassemble the
copper pipes, including disassembling copper pipes of #1 system and disassembling copper pipes of #2 systems.
4.1 Disassembling copper pipes of #1 system
Use a knife to cut open the air exhaust pipes and liquid pipes as shown in Figure 4-1. Use tapes to seal the copper
pipes cut open to avoid infiltration of deposit or water.

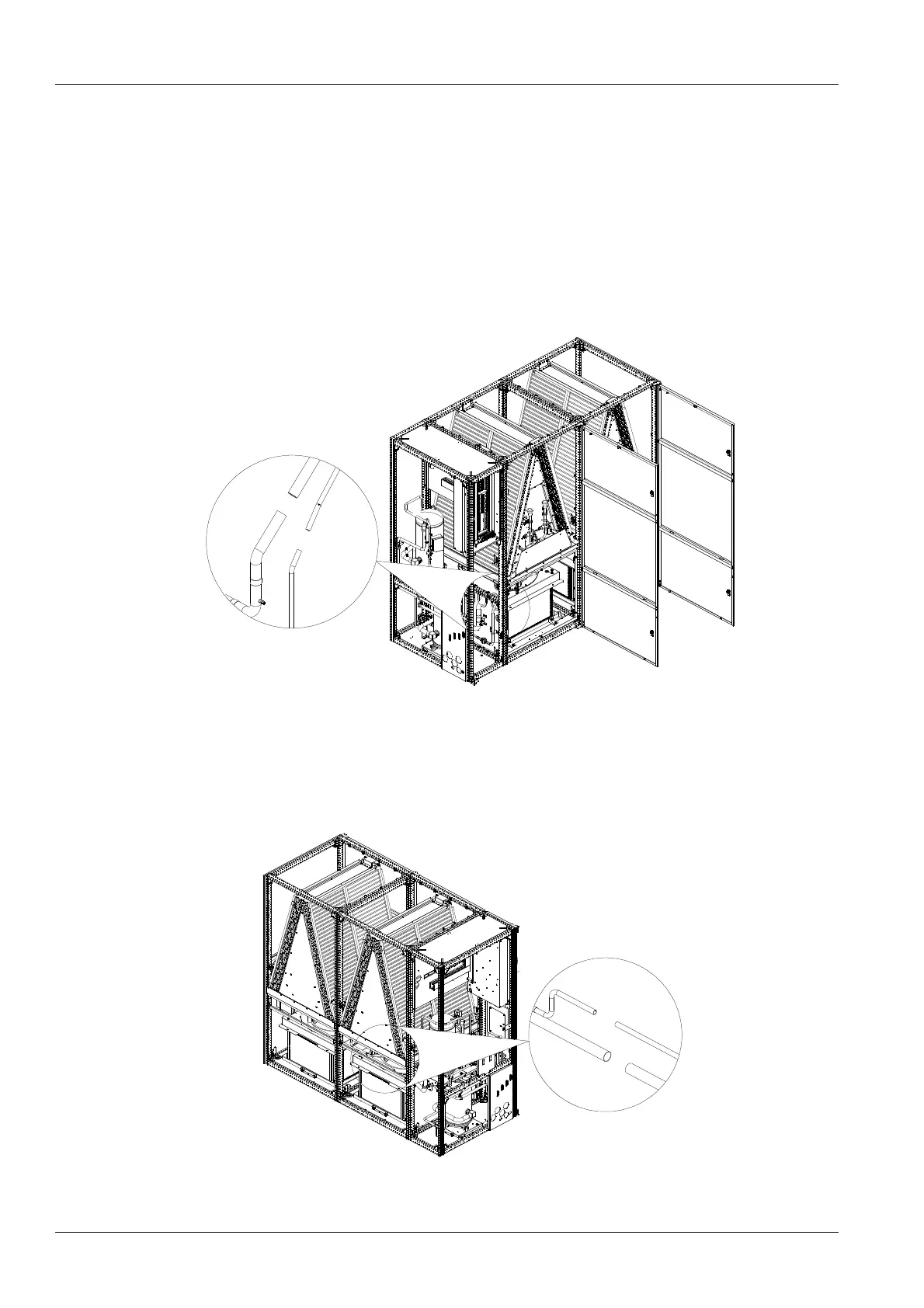

Figure 4-1 Illustration for disassembling the copper pipes of #1 system
4.2 Disassembling copper pipes of #2 system
Use a knife to cut open the air intake pipe and liquid pipe of another system behind the cabinet, as shown in Figure 4-2.
Use tapes to seal the copper pipes cut open to avoid infiltration of deposit or water.
Figure 4-2 Illustration for disassembling the copper pipes of #2 system
