Liebert PEX+ Series User Manual

10 Chapter 3 Disassembling Electrical Parts
Liebert.PEX+Series Precision Air Conditioner Dissassemble Manual

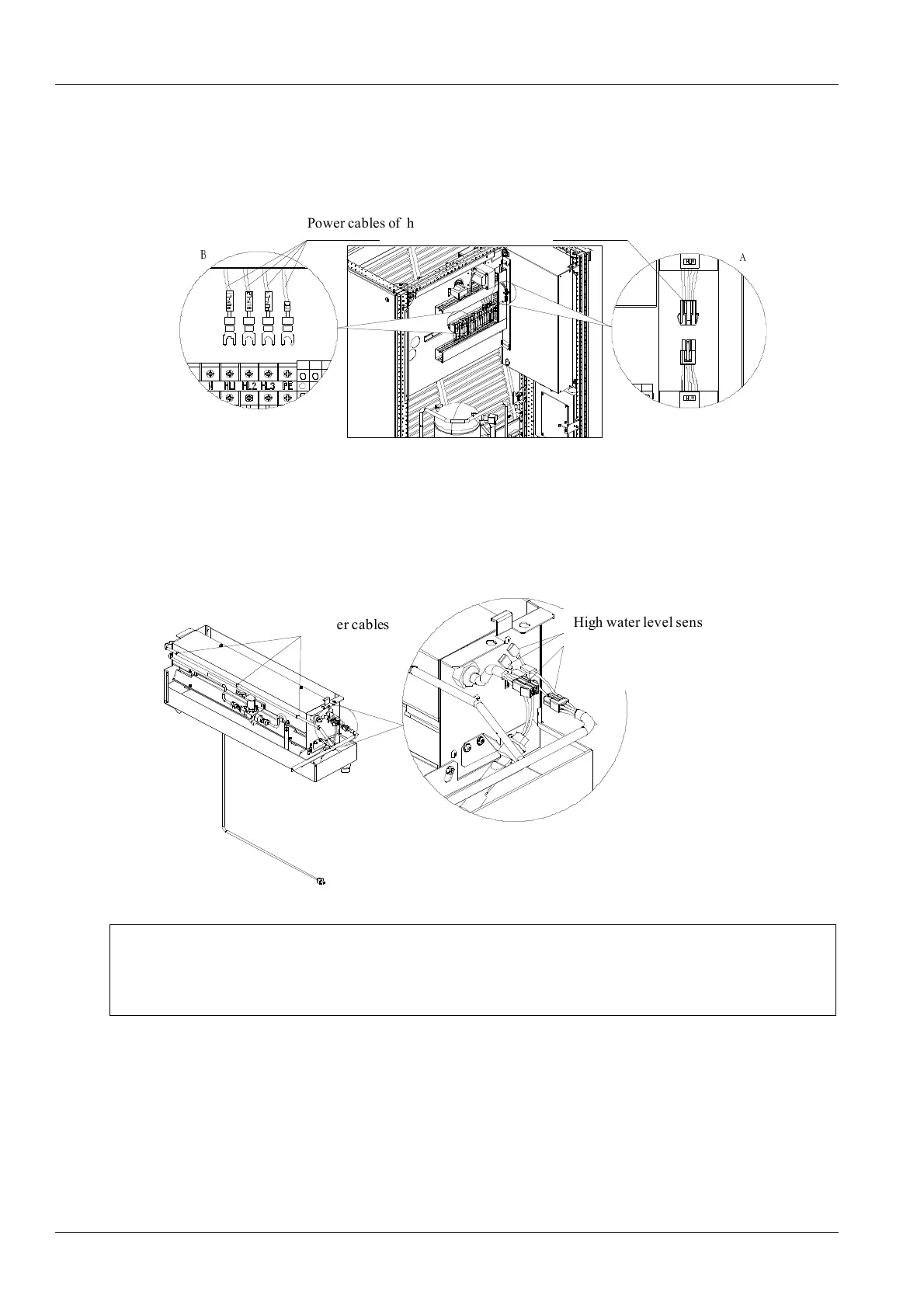

3.5 Disassembling cables of infrared humidifier
There are two steps for disassembling the cables of infrared humidifier, including disassembling the power cables of
the infrared humidifier and disassembling the signal cables of the infrared humidifier, as shown in A and B in Figure
3-4.
A
B
红外加湿功率电缆
红外加湿信号电缆
Power cables of humidifier Signal cables of humidifier
Figure 3-4 Illustration for the cables of the infrared humidifier
3.6 Disassembling cables of infrared humidifier assembly
The operation of disassembling cables of infrared humidifier assembly is shown in 0. The details of the signal cables of
the infrared humidifier are shown in the drawing, you need to unplug the high water level signal switch signal cables,
and the cables of the water supply solenoid valve and the dry burning prevention switch.
高水位传感器电缆
功率电缆扎线带
注水电磁阀、底盘
防干烧开关电缆
cable ties of
power cables
High water level sensor cable
water supply solenoid valve
Cables of dry burning
prevention switch
Figure 3-5 Illustration for cables of infrared humidifier assembly
 Note
 The power cables of infrared humidifier need not to be disassembled completely, and you only need to cut the
cable ties of the power cables at the outer side of the humidifier.
 When restoring the humidifier, be sure to bind the cable ties.
3.7 Disassembling cables of VSC03Z control fan assembly
The cables of the VSC03Z control fan assembly are shown in Figure 3-6.
