Liebert PEX+ Series User Manual

14 Chapter 5 Disassembling Cabinet
Liebert.PEX+Series Precision Air Conditioner Dissassemble Manual
5.2 Loosening parallel connection part
Use a hex socket wrench to loosen the connecting screws between the unit and the cabinet, as shown in Figure 5-3.
The top part, middle part and bottom part of the vertical pillar respectively have 2 connection screws, so there are
totally 6 screws.

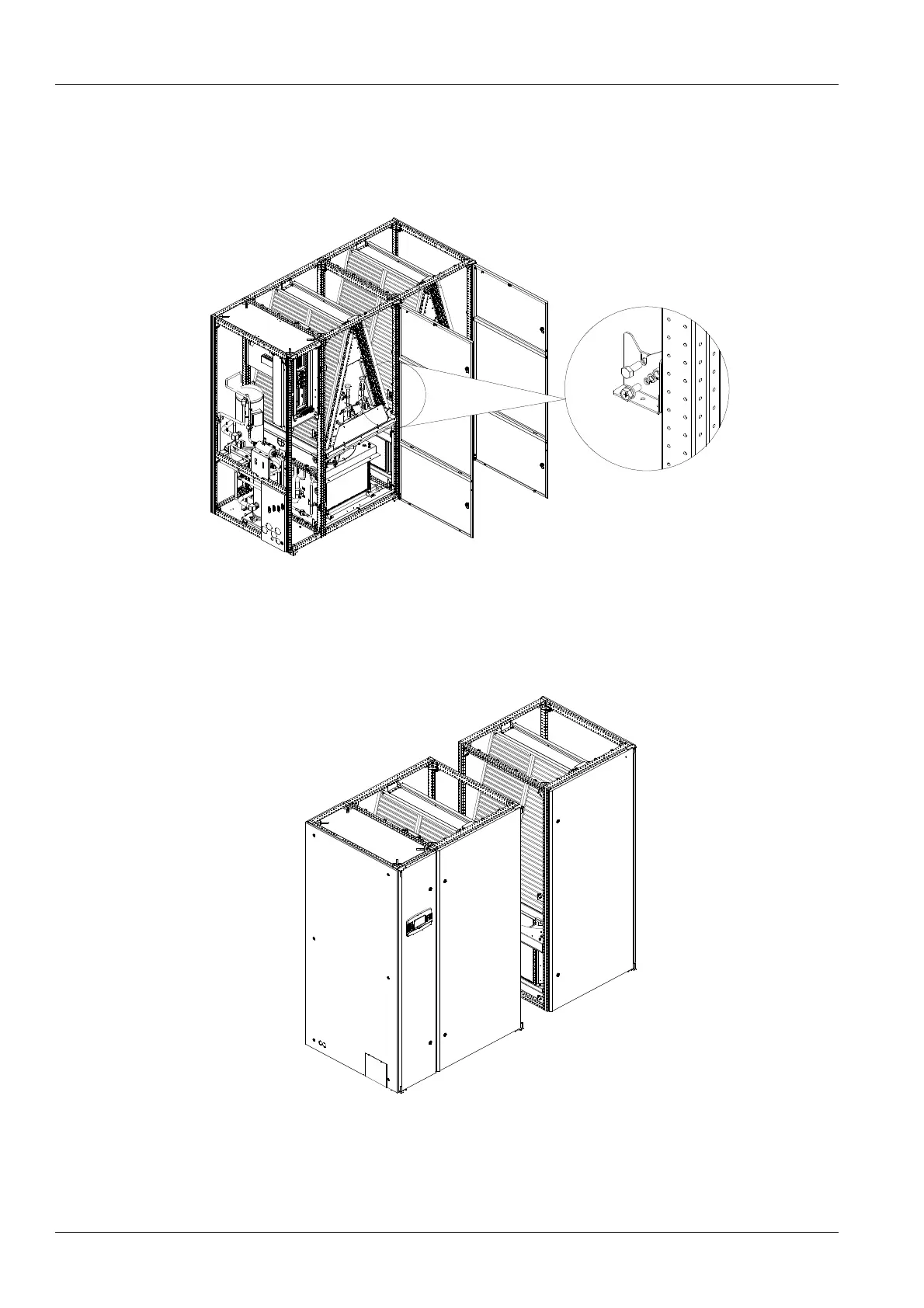

Figure 5-3 Illustration for disassembling the parallel connection part
5.3 Disassembling cabinet (disassembling #1 refrigerating cabinet)
Split the unit into separate cabinets as shown in Figure 5-4. Pay attention to protect the outer surface of the cabinet
avoid scratching the cabinet.
Figure 5-4 Illustration for disassembling the cabinet (disassembling #1 refrigerating cabinet)
