Liebert PEX+ Series User Manual

6 Chapter 2 Disassembling External Package And Cabinet Plate
Liebert.PEX+Series Precision Air Conditioner Dissassemble Manual
侧门板
螺钉
Side plate
Screw

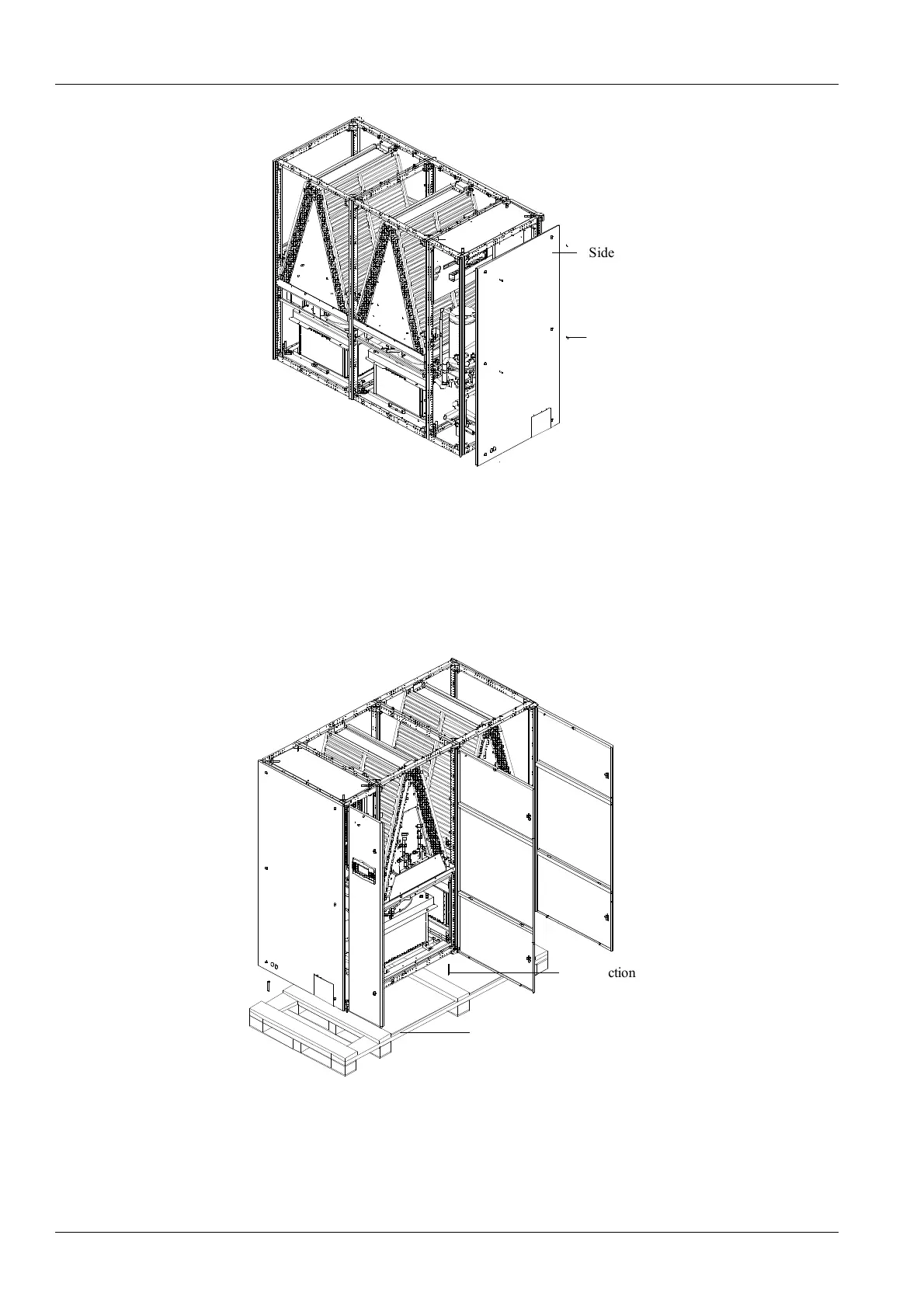

Figure 2-4 Illustration for disassembling the left Side plate
2.5 Disassembling wooden pallet
Use outer hex socket wrench to disassemble the pallet and connection screws (8×90), slide the unit to disassemble
the pallet, as shown in 0.
The location of connection screws of pallet of P2060~P2100 units is shown in Figure 2-6.
P1030~P1050 has not the two screws respectively in location 5 and location 6.
栈板
联接螺钉 Connection screws
Pallet
Figure 2-5 Illustration for disassembling the wooden pallet
