4.4.- DISPLAY
The unit has a backlit LCD display.

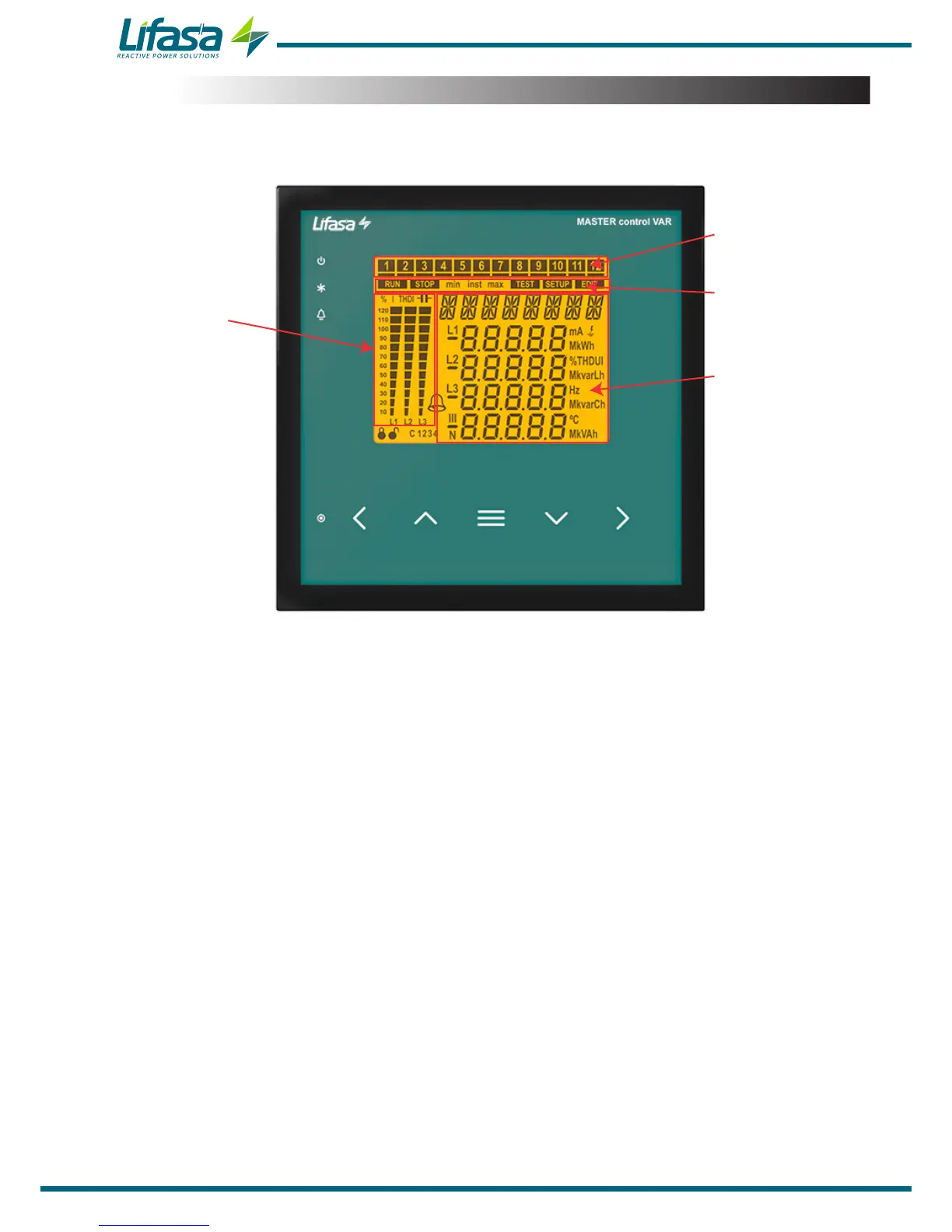

The display is divided into four areas (Figure 12):
Analogue bar
Status of the
capacitors
Status of the
device
Data area
Figure 12: Areas of the Controller MASTER control VAR FAST display�
 The data area: displays the instantaneous, maximum and minimum values of each
one of the phases which the unit is measuring or calculating.
Status of the capacitors: displays the status of the unit's relays.
Status of the unit: displays the current status of the unit.
Analogue bar: congurable, shows the current, current THD or connected power of
the capacitor bank as a percentage.
