Press the key to enter editing mode. It is identified by the symbol and the blinking
of the digits to be modified.
The key shows the next option.
The key shows the previous option.
Press to validate the data; the symbol disappears from the display.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the unit switches to the simulation screen, “5�27�-
SIMULATION SCREEN”.
Table 41: Phase connection options�
Phases
V measurement phase CT connection phase
PH1
L1-L2-L3 L1
PH2
L1-L2-L3 L2
PH3
L1-L2-L3 L3
PH4
L1-L2-L3 L1 (inverted transformer)
PH5
L1-L2-L3 L2 (inverted transformer)
PH6
L1-L2-L3 L3 (inverted transformer)

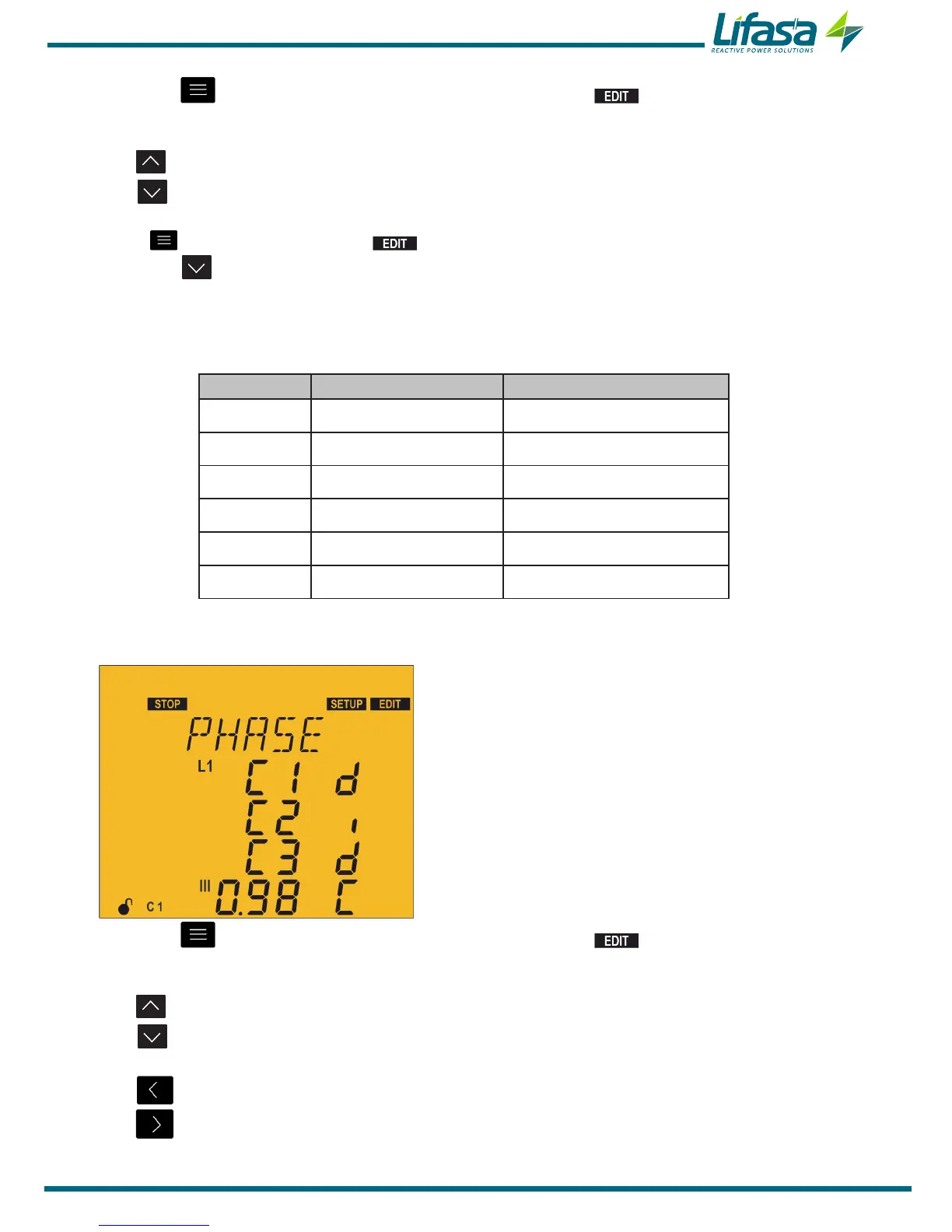

Connection type 3u3C
If the connection with three currents has been
selected (3u3C), each current is associated with its
voltage and the direction of the current is indicated
in this screen.
d: direct.
i : reverse.
Press the key to enter editing mode. It is identified by the symbol and the blinking
of the digits to be modified.
The key shows the next option.
The key shows the previous option.
The key skips to the previous voltage.
The key skips to the next voltage.
79
