C4,C4P / C8, C8P Installation Manual
2 3
Table of Contents
Description .....................................1
Specifications ...................................1
Regulatory Information ............................1
Mounting the Power Control Modules ................1
Power Control Accessory Overview. ..................2
Connecting the Power Control Modules ...............4
Input and Output Wiring ...........................5
Common Jumper Settings .........................6
C4/C4P Application Example ........................7
C8/C8P Application Example ........................8
Description
The C4/C4P/C8/C8P power control modules add 4 or 8 zones
respectively, to an FPO power supply system. The C4/C4P/
C8/C8P accept either one or two voltage sources, either of
which are selectable for output on a zone-by-zone basis. Each
zone is fully controllable via a zone input which accepts a volt-
age, relay contact, or open collector input. Each zone output is
selectable for FAI operation, fail-safe or fail-secure, and volt-
age or relay contact output. The suffix "P" added to the model
number denotes Class 2 Power Limited outputs.
Specifications
Power Input
Voltage 12 or 24VDC nominal
Current 12A maximum
Standby Current 350mA (C4)
700mA (C8)
All lock control relays active
Zone Input
Voltage Input 12 or 24VDC
Max Current 10mA
Zone Output
Voltage Same as input
C4/C8 Current
3.0A resistive
C4P/C8P Current
2.5A resistive (Class 2 Power Ltd)
Fuse
3A ATM automotive style (C4/C8 only)
Size
C4/C4P
4.00" x 2.50" x 1.0"
(102mm x 64mm x 25 mm)
C8/C8P
6.00" x 4.00" x 1.0"
(152mm x 64mm x 25 mm)
Weight
C4/C4P 0.20lb (0.10kg)
C8/C8P 0.35lb (0.16kg)
Regulatory Information
The equipment discussed within this manual has been tested
to the following standards:
• UL294, UL603, UL1076
• ULC S318, ULC S319
• CSA C22.2 #205
• CSFM Approved

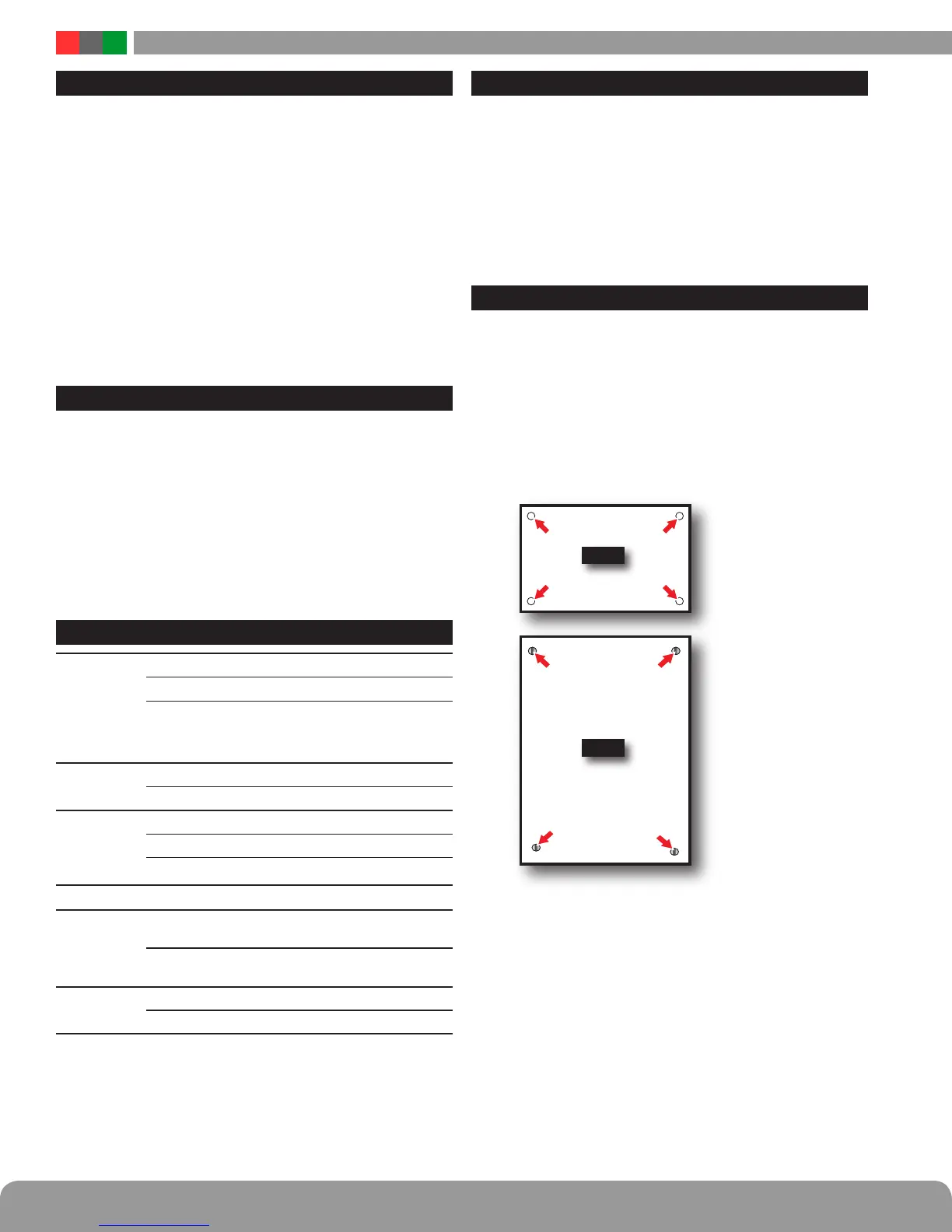

Mounting the C4/C4P/C8/C8P Power Control Modules
Mounting of the board to an enclosure is via the four
snap-in standoffs supplied.
1. Locate the appropriate mounting holes in the enclosure
and snap the standoffs into the holes.
2. Align the board mounting holes with the standoffs (be
sure the PC board is properly oriented) and snap the
board onto the standoffs.
C4
C8
Class 2 power limited wiring must be seperated from non-power limited
wiring by a minimum of 1/4 inch and must use seperate knockouts.
• The installation and all wiring methods shall be in accordance with ANSI/
NFPA70 and all local codes.
For ULC compliance, installation and all wiring methods shall be in accor-
dance with the Canadian Electrical Code, C22.1, Part I, Section 32 .
All input wiring to the module shall be located within the same room (3 m).
To Next Page
