Connecting the Power Control Module
h
Remove all AC and battery power from the FPO system before adding or replacing a power control board.
Required Connections
Optional Connections

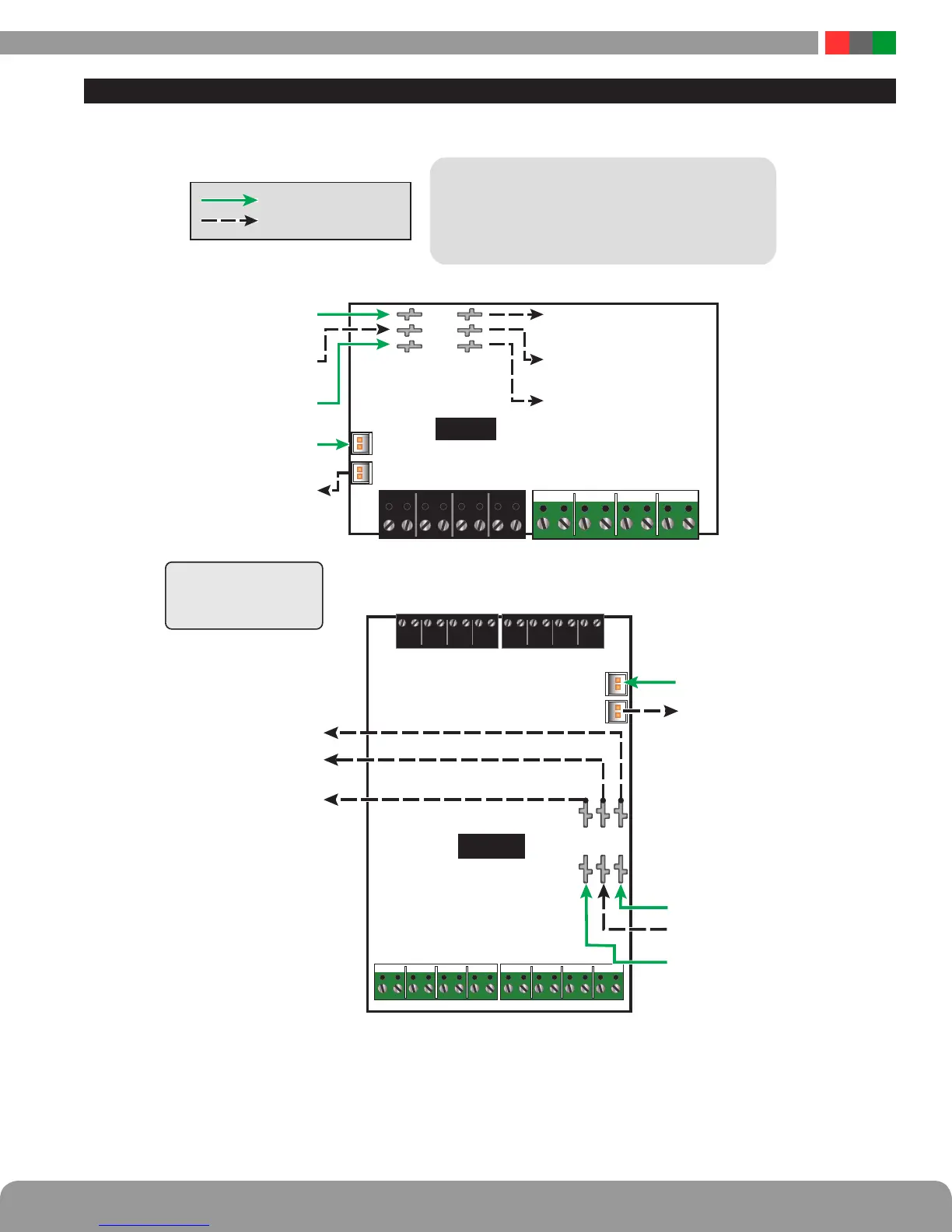

Each of the B1, B2, BR, and FlexIO busses has two connectors.
These connectors may be used interchangeably.
For example: FlexIO from the power supply may be connected
to either of the C4/C8's FlexIO connectors, the Main DC voltage
source may connect to either B1 terminal, etc.
C4/C4P
B2
BR
B1
INPUT FIELD WIRING 1–4 OUTPUT FIELD WIRING 1–4
FLEXIOFLEXIO
FlexIO continues to
other accessories
Main DC voltage continues
to other accessories
Second DC Source continues
to other accessories
BR continues to
other accessories
BR in from System
Input from Main
DC voltage source
Input from Second
DC source (optional)
FlexIO in from System
B1B2BR
INPUT FIELD WIRING 1–8
Main DC voltage continues
to other accessories
Second DC Source continues
other accessories
BR continues to
other accessories
FlexIO continues to
other accessories
BR in from System
Input from Main
DC voltage source
Input from Second
DC source (optional)
FlexIO in from System
FLEXIOFLEXIO
C8/C8P
O1A
O1B
O2A
O2B
O3A O3B O4A O4B
– +– +– +– +
O5A
O5B
O6A
O6B
O7A O8B
– +– +
O1A
O1B
O2A
O2B
O3A O3B O4A O4B
– +– +– +– +
O8A
– + – +
O7B
OUTPUT FIELD WIRING 1–8
Note:
B1 terminals are interconnected
B2 terminals are interconnected
BR terminals are interconnected
NOTE - Output polarity has changed -
Verify polarity via markings on the PCB
NOTE - Output polarity has changed -
Verify polarity via markings on the PCB
