LifeSize Express 220 User Manual

LifeSize Express 200 Installation Guide 19
Attaching the LifeSize MicPod Strain Relief Clip
If the LifeSize MicPod is installed in an area where the cord could be pulled or tripped upon,
LifeSize recommends using the strain relief clip included with your LifeSize MicPod to
reduce the chance of disconnecting or damaging the plug or the LifeSize video
communications system codec.
Before attaching the strain relief clip to the codec, ensure that the codec surface is clean
(free of dirt, dust, oil, and other residues) and dry. The adhesive tape on the strain relief clip

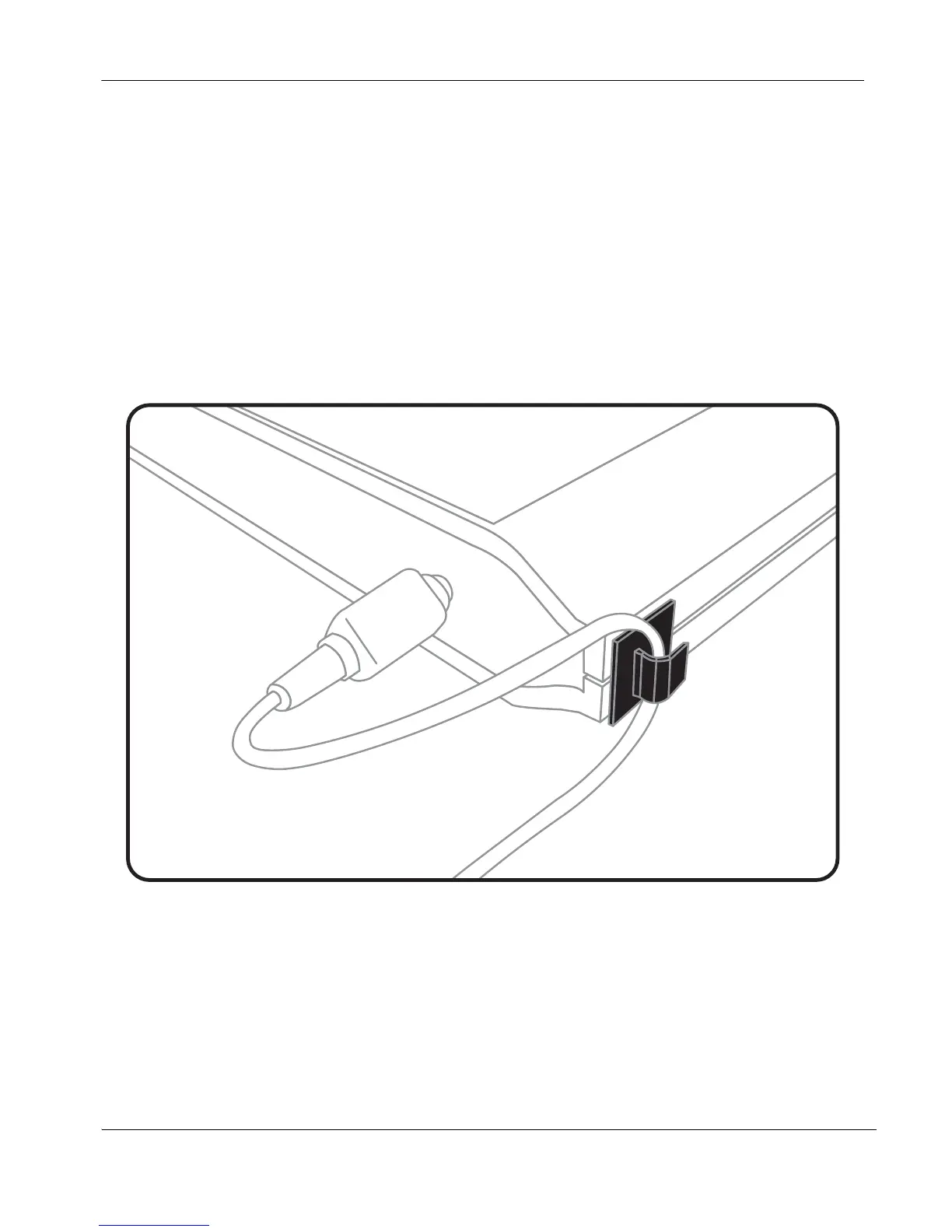

is intended for a single use. Attach the strain relief clip to the codec and route the
LifeSize MicPod cable through the strain relief clip as shown in the following diagram.
To obtain a replacement strain relief clip, contact your LifeSize Partner.

LifeSize Express 220 Specifications

General

Video codecs	H.261, H.263, H.263+, H.264, H.239, BFCP
Maximum frame rate	30 fps
Supported video modes	1080p, 720p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
PTZ control	Yes
ITU-supported standards	H.323
Security algorithms	HTTPS, SSH
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	15 - 85 %
HDMI ports quantity	3
DVI-I ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Voice codecs	G.711, G.722, G.722.1
Current	2.5 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	187.5 mm
Width	288 mm
Height	41.3 mm
Weight	1290 g
