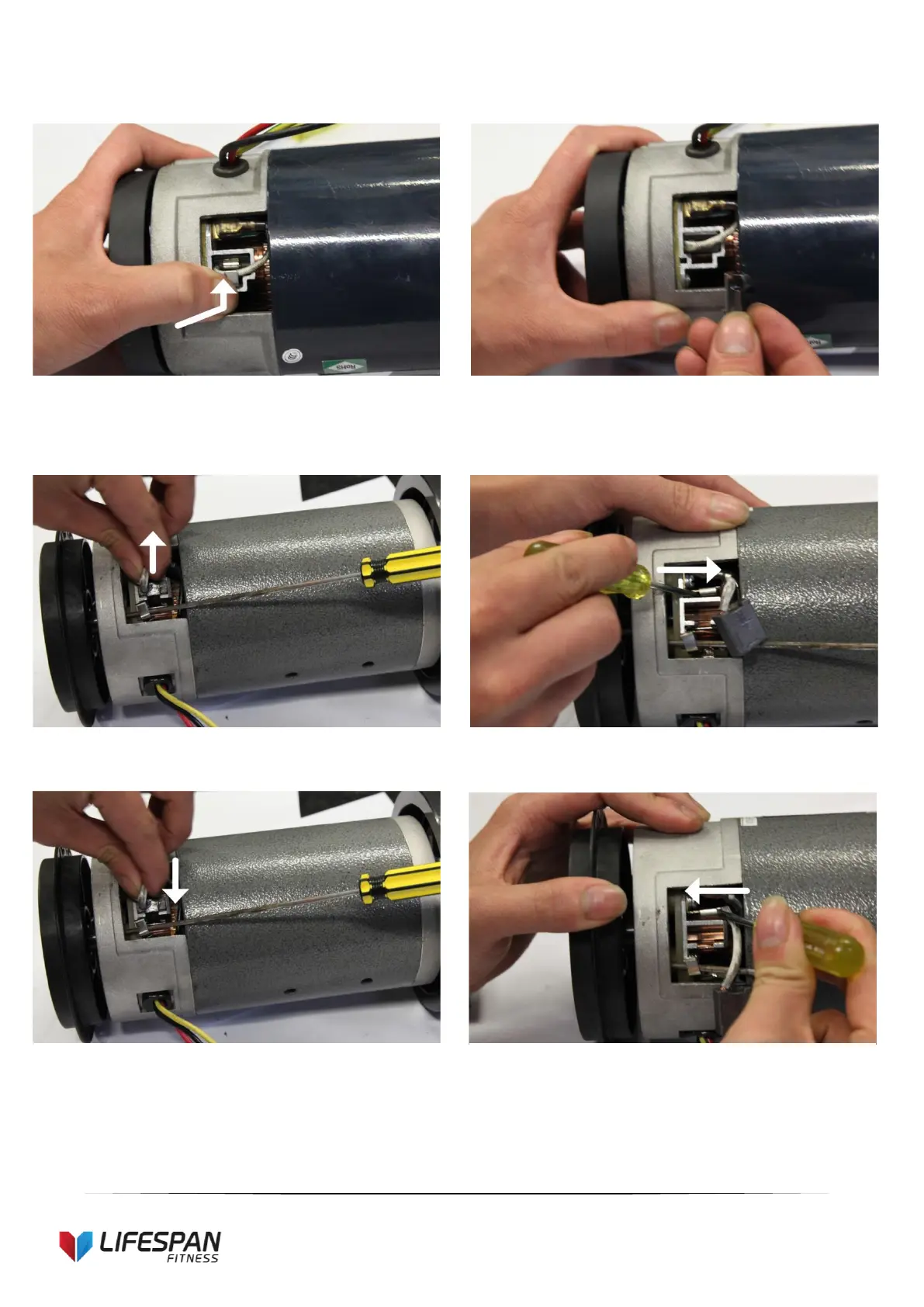

4b. Some treadmill motors may use a push clip
instead. In this case, gently push the clip inwards
and then up to release it from its latch.
4c. Remove the clip, noting the direction in which it
was originally placed, and put it safely aside.
5. Slide the motor brush out from its slot. If the brush
is shorter than 2cm on the longest side, you will need
to replace both brushes.
6. Slide the motor brush lead off the terminal using
another small screwdriver or needle-nosed pliers.
7. Plug the new motor brush lead into the terminal.
8. Slide the new motor brush into the slot.
