LifeSpan APEX User Manual

8
APEX
STEP 1:
STEP 2:
1. Open the carton and remove all
contents. Place the Main Frame (A02)
on level ground and ensure that you
have a clean work space that has
adequate space.
2. Note: For safety reasons, do NOT cut
the Packing Belt (F) until you’ve
completed assembly

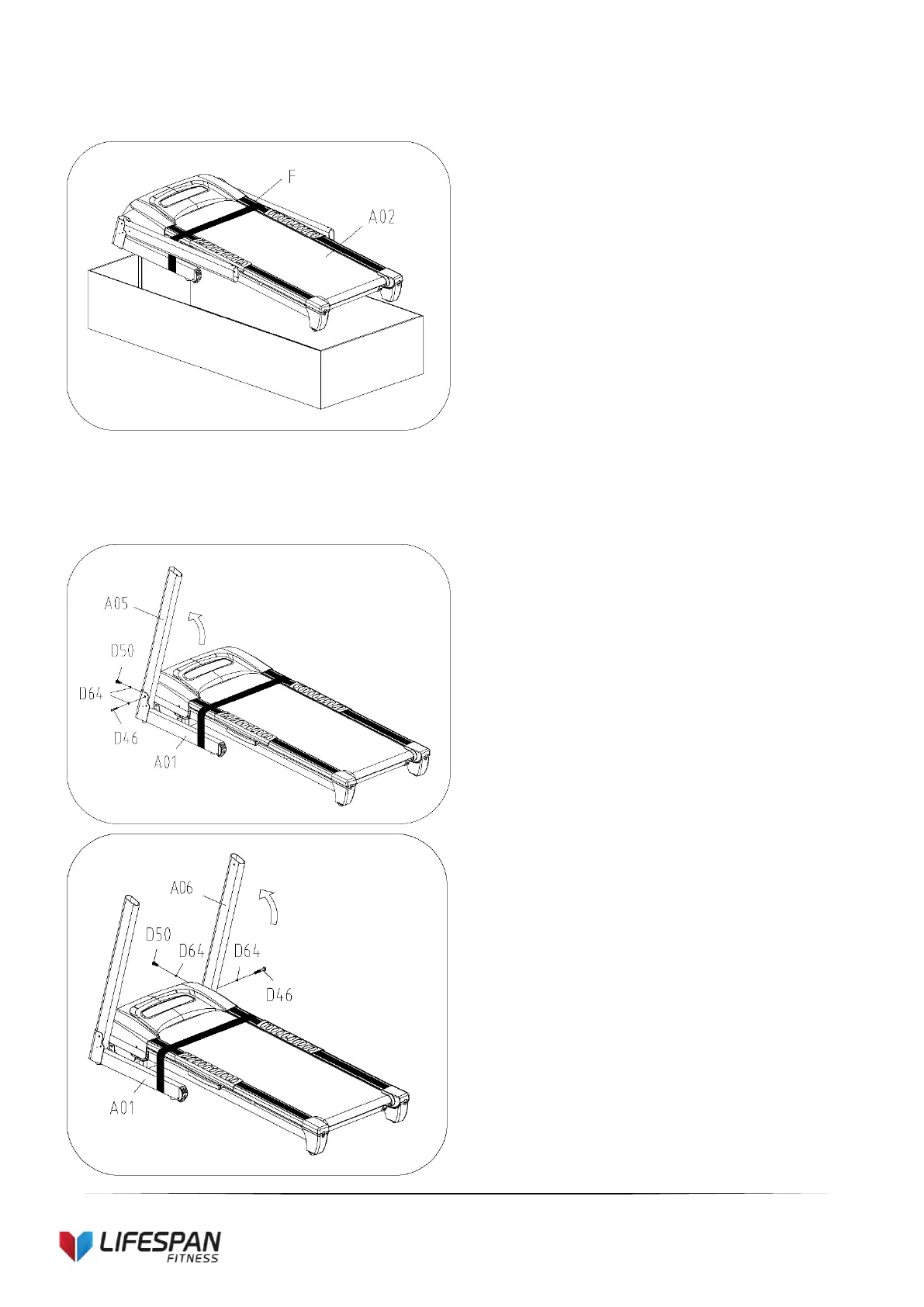

1. Lift the Left Upright Tube (A05) upwards.
See Figure 1.
2. Fix the Left Upright Tube (A05) to the
Base Frame (A01). Use 1 Bolt (D46) and
1 Lock Washer (D64) to secure the side,
and 1 Bolt (D50) and Lock Washer (D64)
to secure the front.
Tighten using Allen Wrench (B12).
3. Repeat the step above to assemble the
Right Upright Tube (A06) to the Base
Frame (A01). See Figure 2.
4. NOTE: During assembly, support the
Upright Tubes (A05 and A06) with your
hand to prevent them from falling down.
Figure 2
Figure 1

LifeSpan APEX Specifications

General

Brand	LifeSpan
Model	APEX
Category	Treadmill
Language	English
