22

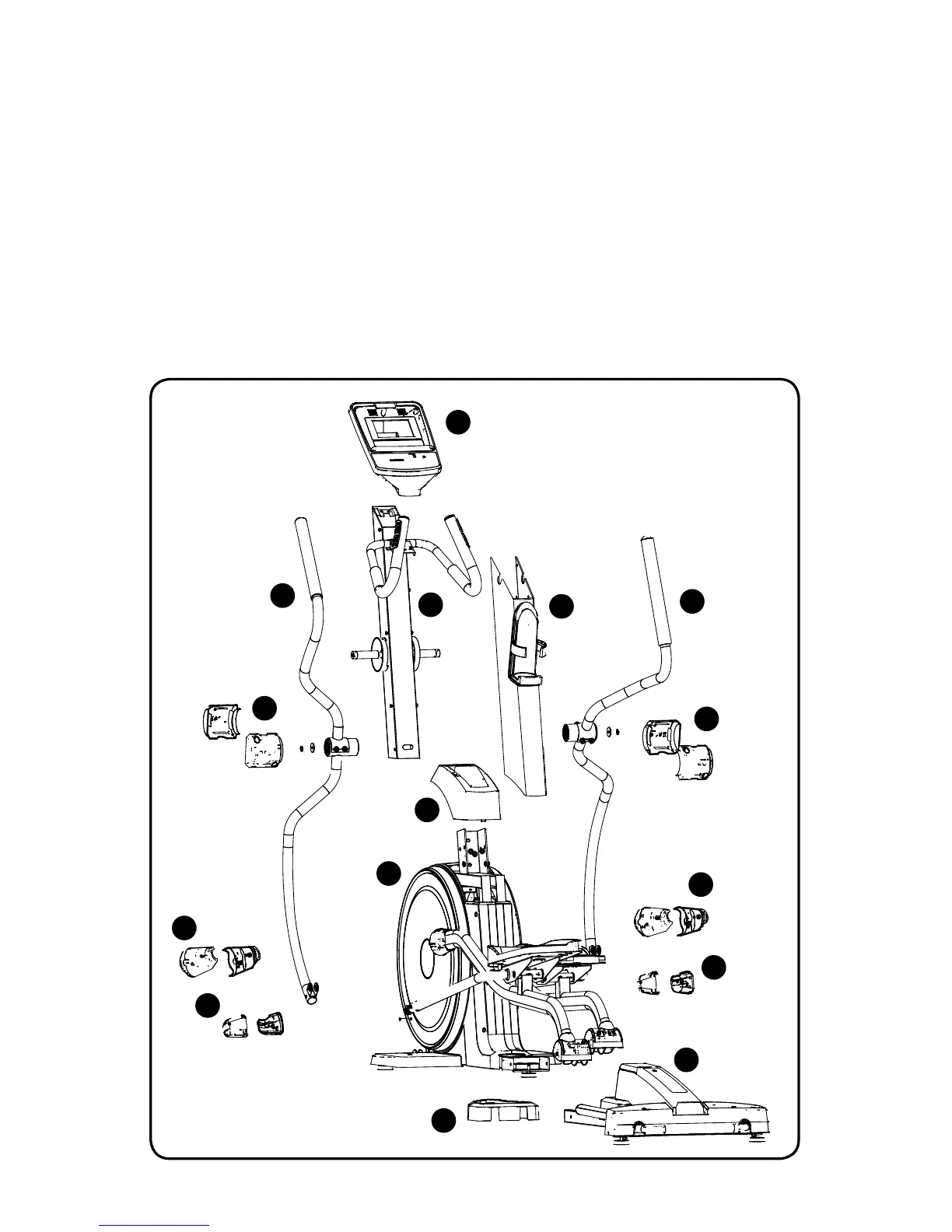

Exploded View
Prior to starting the assembly process take all of the parts out of the box.
Remove plastic bags and lay them out on the oor to become familiar with
the components.
Since your elliptical is a heavy piece of equipment it is recommended you use
two people during assembly and follow these assembly instructions to reduce
any problems that could occur.
Assembling Your Elliptical
1
2
3
4
5
6
7
8
9
9
19
10 A
10 A
10 B
10 B
To Next Page
