TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
Front End
81 1/2”
55 1/4”
52 1/4”
16” 16” 16” 16” 16”
To ensure studs are in the correct
location to nail plywood in the next step,
start measuring at the corner 16”, and
then measure from center to center.
2” x 4” x 81 1/2” Treated BoardX
2” x 4” x 52 1/4” Treated Board (x7)
16d 3” Common NailX
Note: Whenever possible you should use the surfaces described on Page 7. When
this is not possible, we recommend you use a wood platform or a fi lled wood frame.
!
Note: All lumber must be rated for outdoor use.
!
Note: Surface must be leveled before installation. If the surface is not properly leveled, the Outdoor Shed will not assemble
or function correctly. Proper surface leveling will save you time in the long run, so please do not ignore this step.
!
SEC
1.2

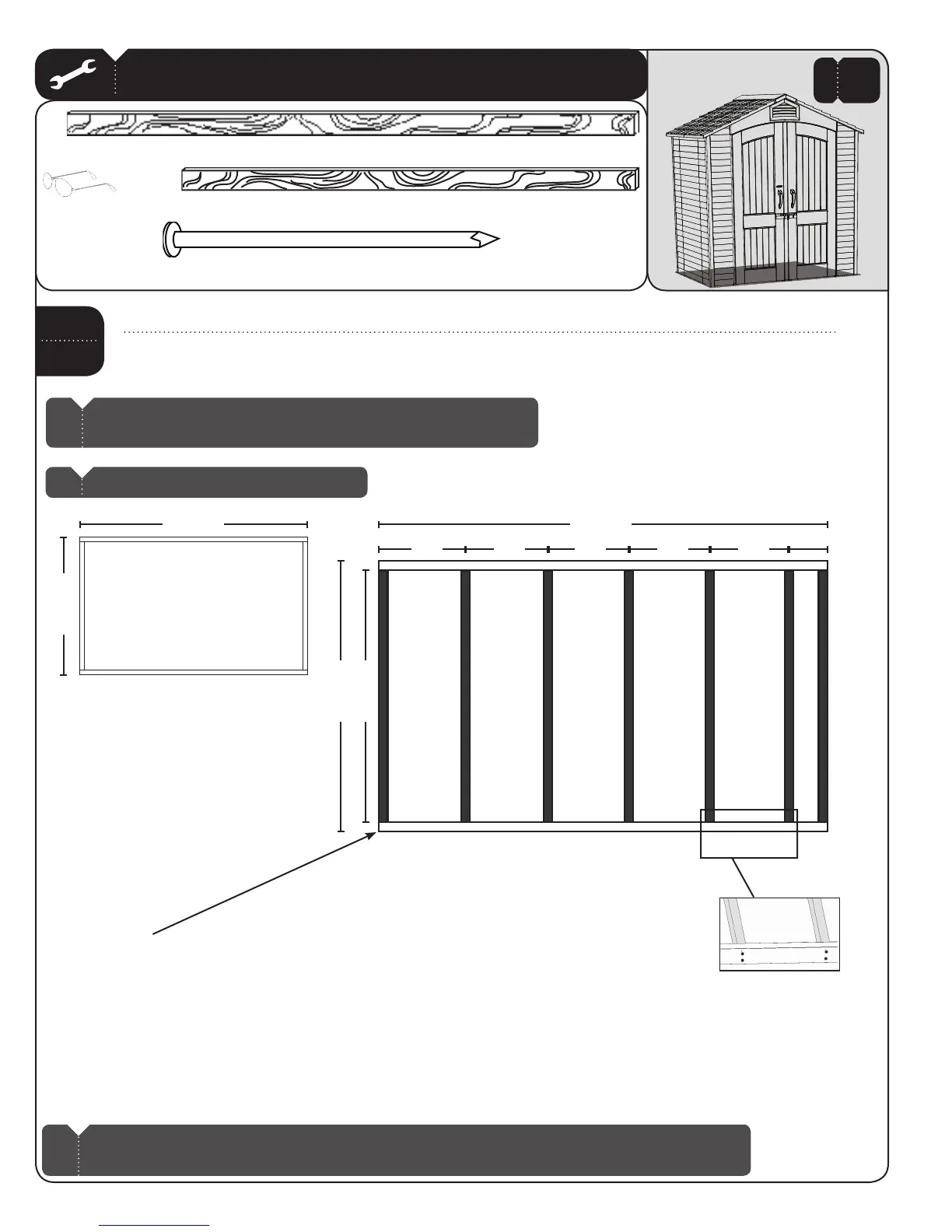

ALTERNATIVE SITE PREPARATION: OPTION 1 - WOOD PLATFORM ASSEMBLY
Ensure you use lumber that is treated and approved for outdoor use. Build outside frame to 81 1/2” Wide x 55 1/4”
Deep.
Place the 2” x 4” x 52 1/4” boards on the
inside of the frame. Nail each board in place
with the 16d nails.
1
Front End
81 1/2”
55 1/4”
To Next Page
