Lifetime 60057 - Page 25

25
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADK (x4)
ADY (x4)
ADY
ADY
ADK
ADY
AFH
AFH
ADY
BXU
SEC
SEC

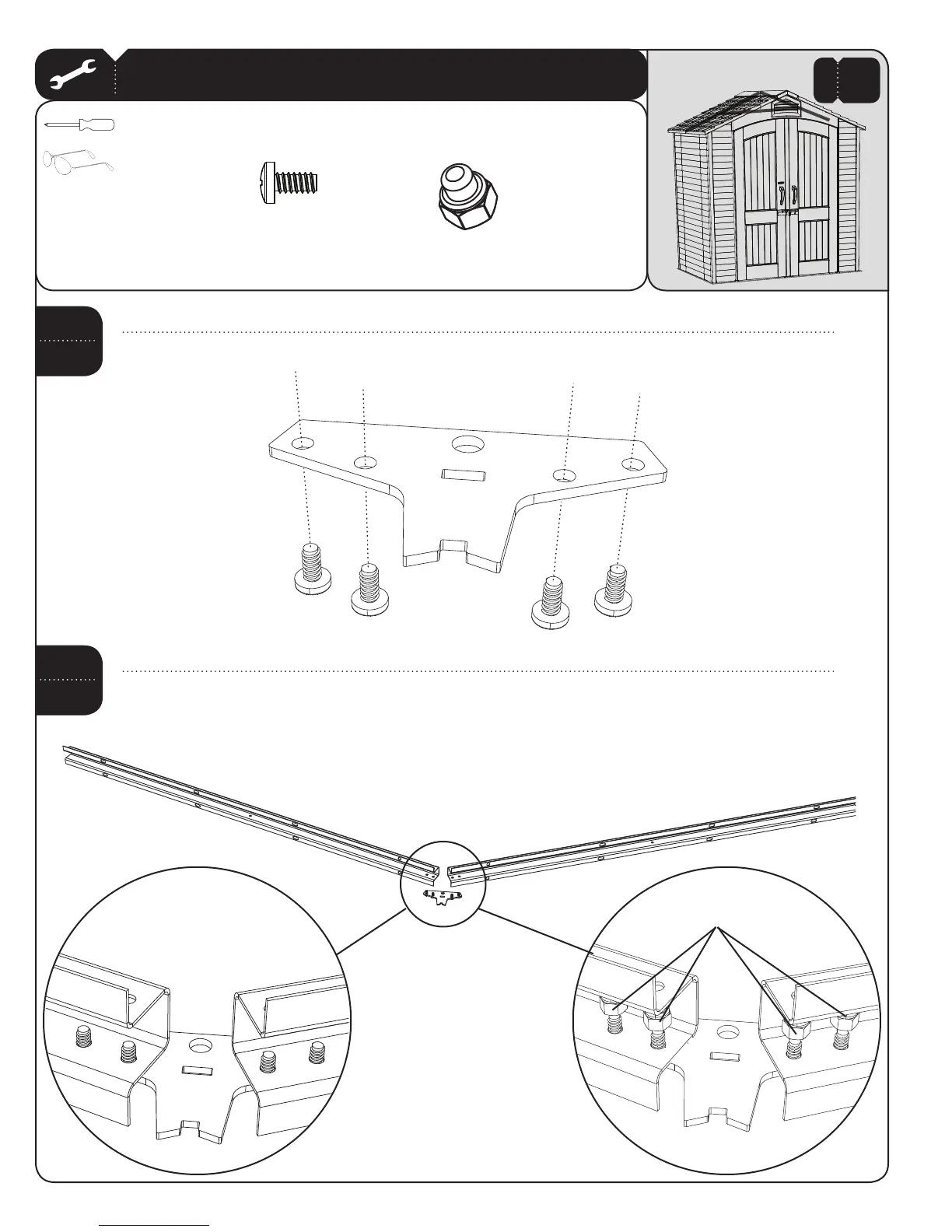

TRUSS ASSEMBLY
Insert four (4) #10 x 3/8” Pan-Head Screws (ADY) through a Truss Connector A (BXU) as shown.
0LACETWOTruss Gutter Channels (AFH) over the Truss Connector as shown and insert the four Screws through the
FOURHOLESINTHE4RUSS'UTTER#HANNELS,IGHTLYSECURETHE3CREWSWITHFOUR #10 Cap Nuts (ADK). Hand tighten
only in this step.
3.1
3
3.2
