Lifetime 60057 - Page 27

27
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADJ X
SEC

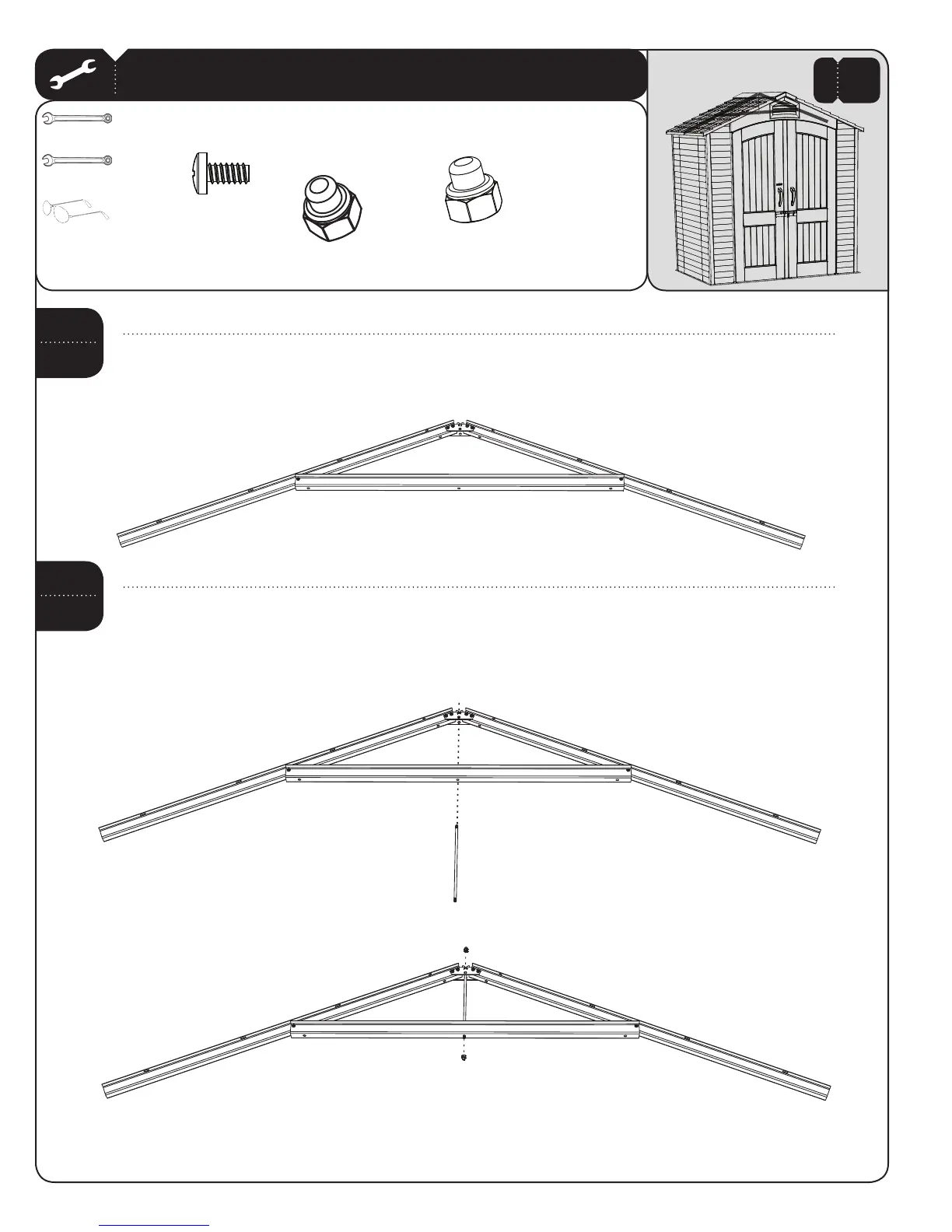

With the Truss Assembly on its side, slide a 1/4” Threaded Rod (ADH) through the Truss Brace and Truss Connector
Bracket as shown. Secure the top and bottom of the 1/4” Threaded Rod with a 1/4” Cap Nut (ADJ). Tighten securely.
Finally tighten all hardware. Set aside.
ADY (x4)
ADK (x4)
ADH
ADJ
ADJ
7/16”
3/8”
SEC
With the Truss Assembly on its side, align the holes in a Truss Brace (AFG)WITHTHOSEINTHE4RUSS'UTTER#HANNELS
as shown. Secure with four (4) #10 x 3/8” Pan-Head Screws (ADY) and four (4) #10 Cap Nuts (ADK). Hand tighten only in
this step.
AFG
3
3.5
3.6
