TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
SEC
ADV (x6)
ADV
ADV
ADV
ADV
ADV
SEC

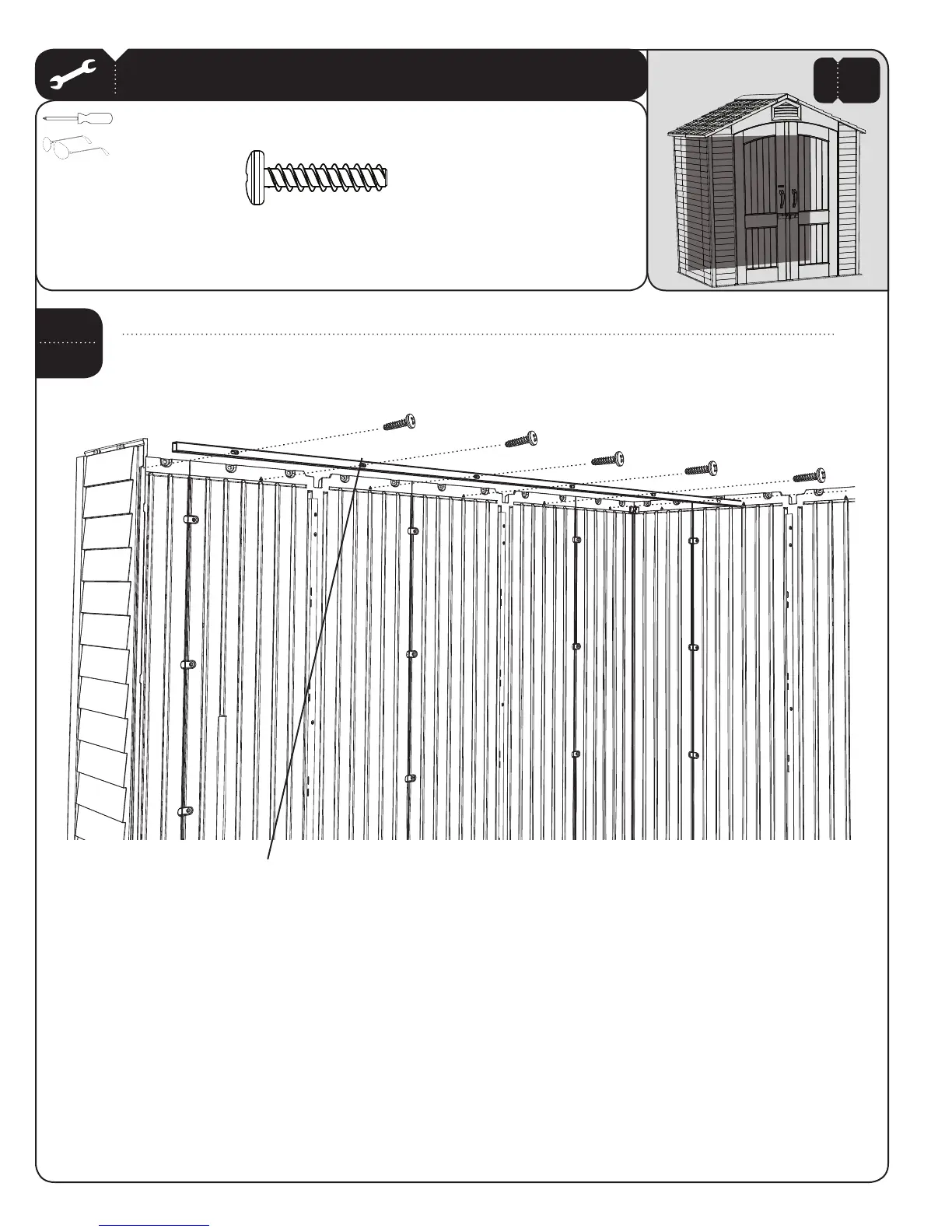

Align the holes in the Rear Wall Support Square Tube (BXX) with the screw bosses along the top of the rear Wall Panels
as shown. Secure the Rear Wall Support Tube to the Wall Panels using six (6) 1/4” x 1 1/8” Pan-Head Screws (ADV).
Tighten securely, but do not overtighten.
The indented, rectangular holes face the
Wall Panels.
BXX
3
4.9
To Next Page
