TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
AAE (x2)
ABD (x4)
AAO (x2)

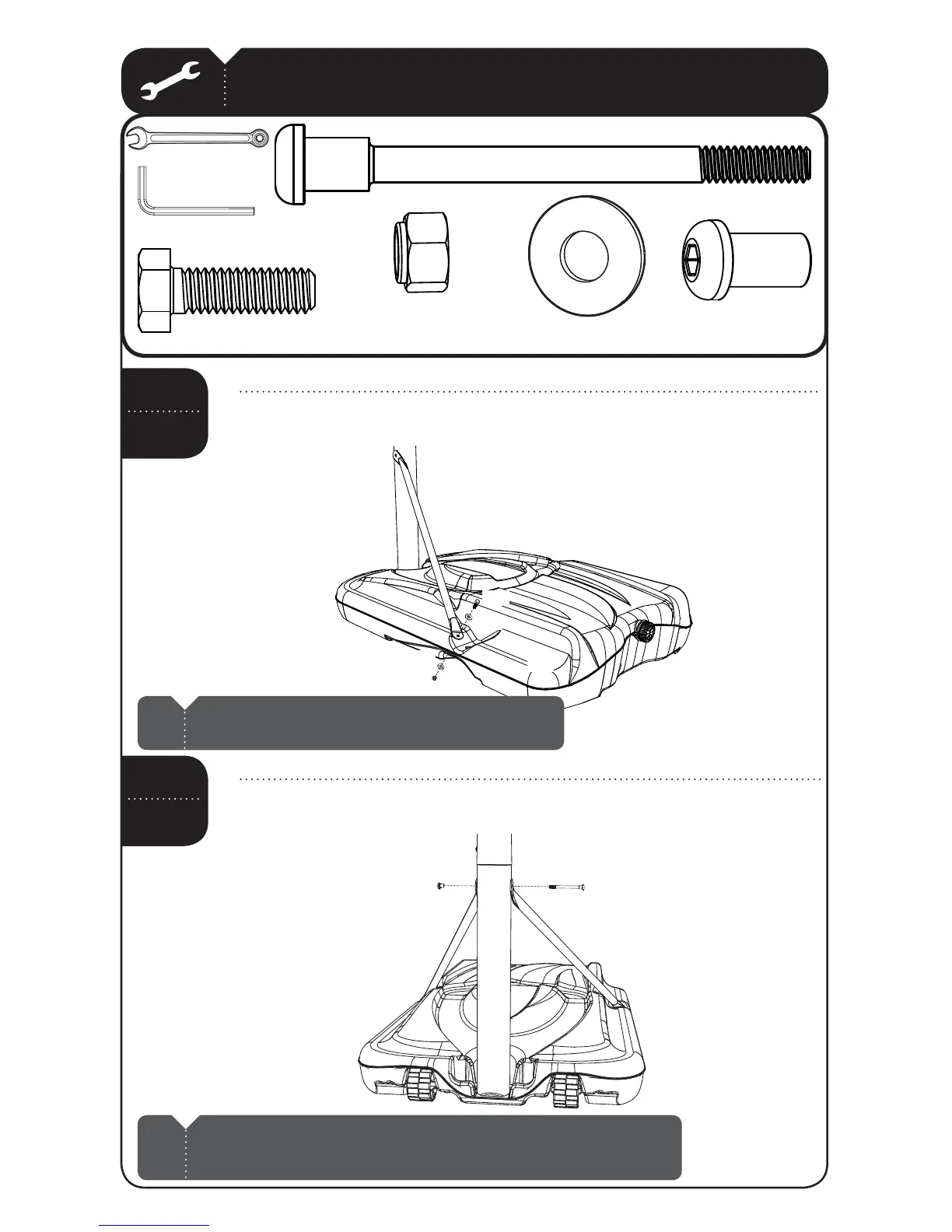

Attach the fl attened end of the Pole Brace (ALI) to the "ASE!*- with
the hardware shown. Only fi nger tighten the hardware.
SEC
2.3
1/2" (x2)
Attach the Pole Braces (ALI) to the Bottom Pole (ALE) with the hardware
shown, and tighten all Pole to Base assembly hardware.
SEC
BTS
BZP
ALE
ALI
Note: Tip the system backward so the Pole rests on the ground. Do not stand
the system up until it is fi lled with either sand or water later in the assembly.
!
ALI
AAE
ABD
!*-
ABD
AAO
Note: Repeat this step to install the other Pole Brace to
the other side of the Base.
!
ALI
BTS (x1)
BZP (x1)
3/16" (x2)
To Next Page
