31

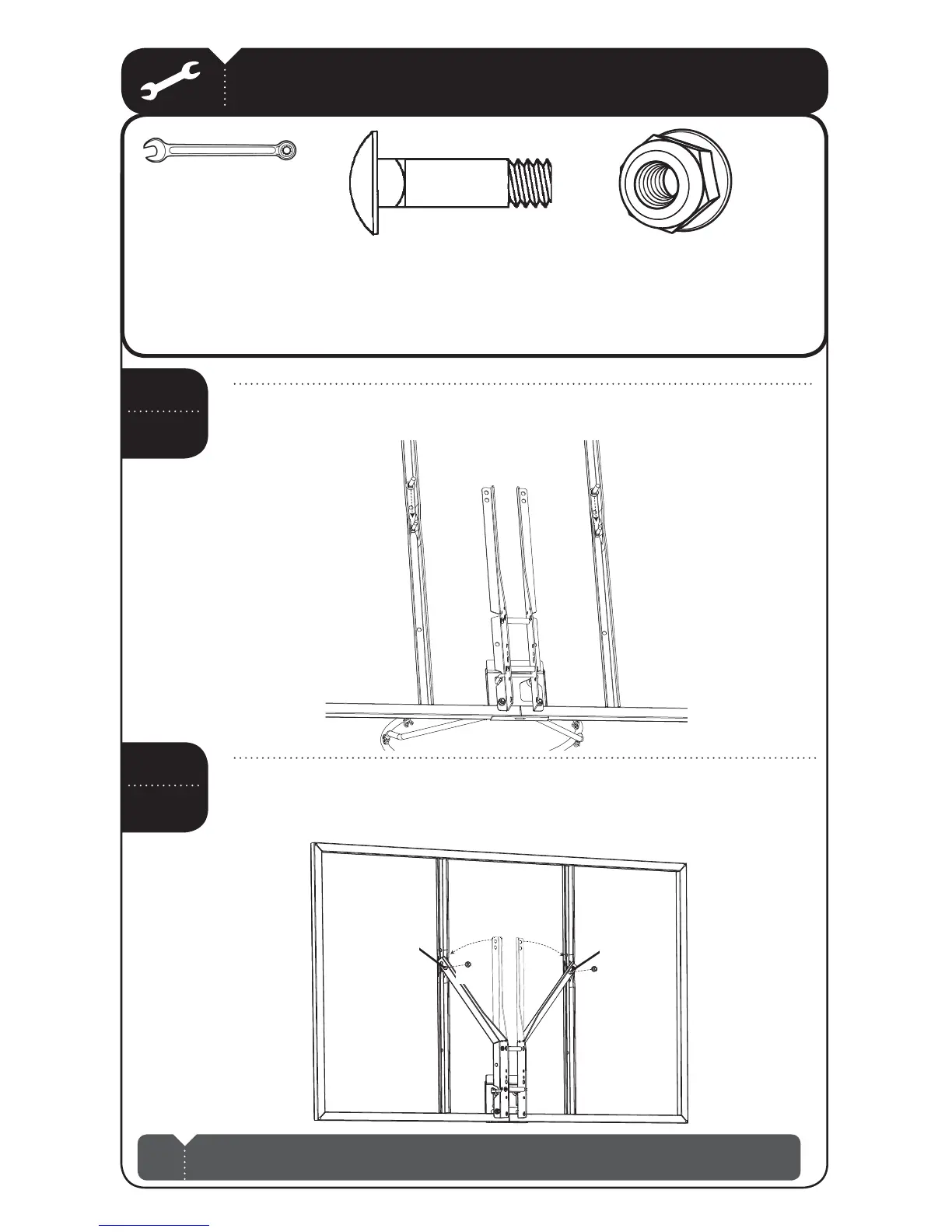

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
1/2”
ABC (x2)
ABK (x2)
Slide a vXv#ARRIAGE"OLT!"# into the crimped slot in each
Backboard Channel as shown.
SEC
3.7
Bend the Backboard Brackets outward by hand and gently lift them over
the vXv#ARRIAGE"OLTS!"#. Then securely fasten the Backboard
Brackets to the Backboard Channels with the hardware shown.
SEC
3.8
Note: Tighten the 5/16” Nylock Flange Nuts (ABK) until they are fl ush with the ends of the Bolts.
!
ABC
ABC
ABK
ABK
ABC
ABC
To Next Page
