Lifetime 90192 - Page 33

33
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
v (x2)
!!8 (x1)
ABL (x2)

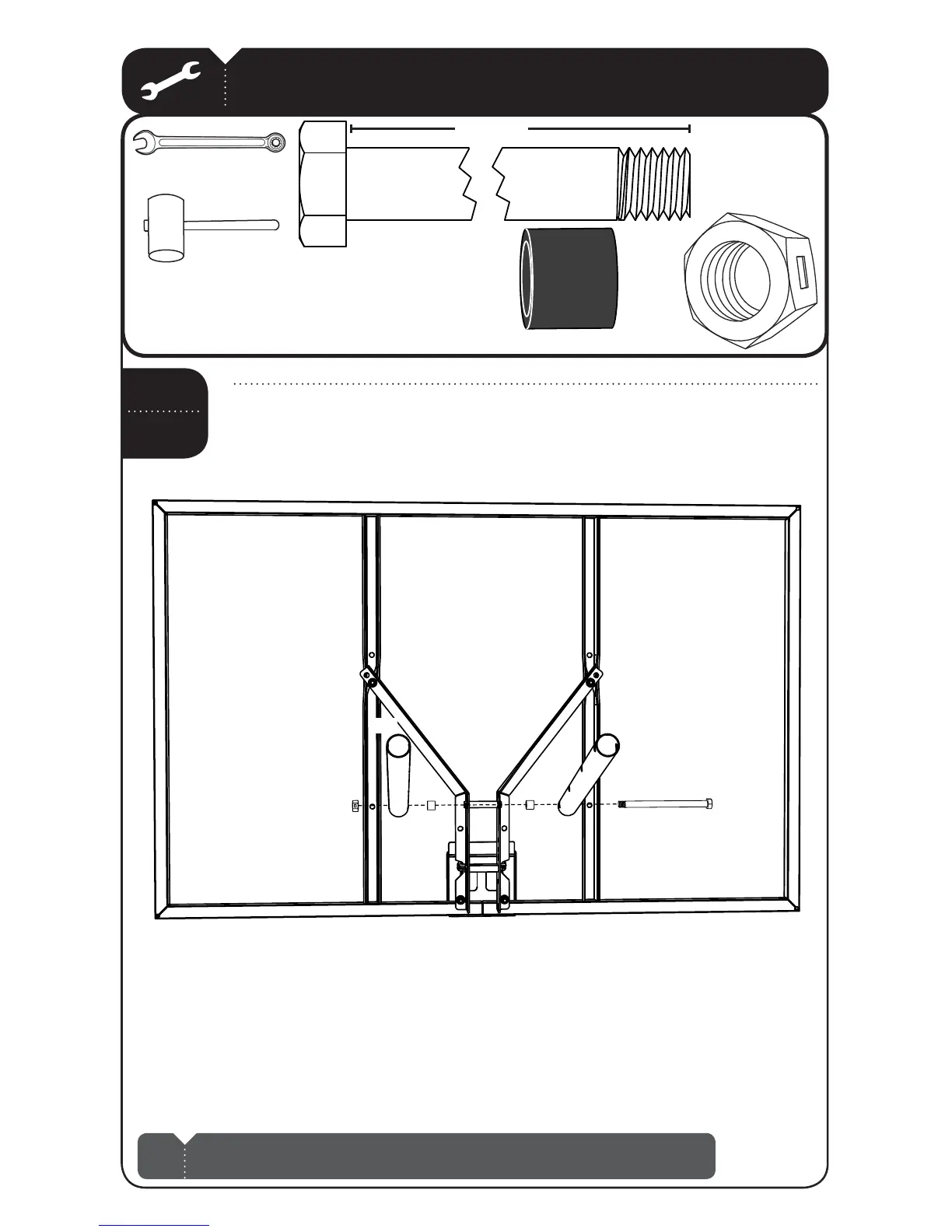

Secure the Short Extension Arms (AKC) to the Backboard Brackets in the
location shown with the hardware indicated.
SEC

Note: Tighten the 1/2” Centerlock Nut (AAX) until it is fl ush with the end of the Bolt.
!
AAD (x1)
(Not actual length)
!!8
ABL
AAD
AKC
ABL
AKC
7 1/16”
