Lifetime 90192 - Page 35

35
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
v (x2)
!!8 (x2)
SEC

Note: Tighten the 1/2” Centerlock Nuts (AAX) until they are fl ush with the ends of the Bolts.
!
AAD (x2)
7 1/16”
(Not actual length)
ABN (x4)

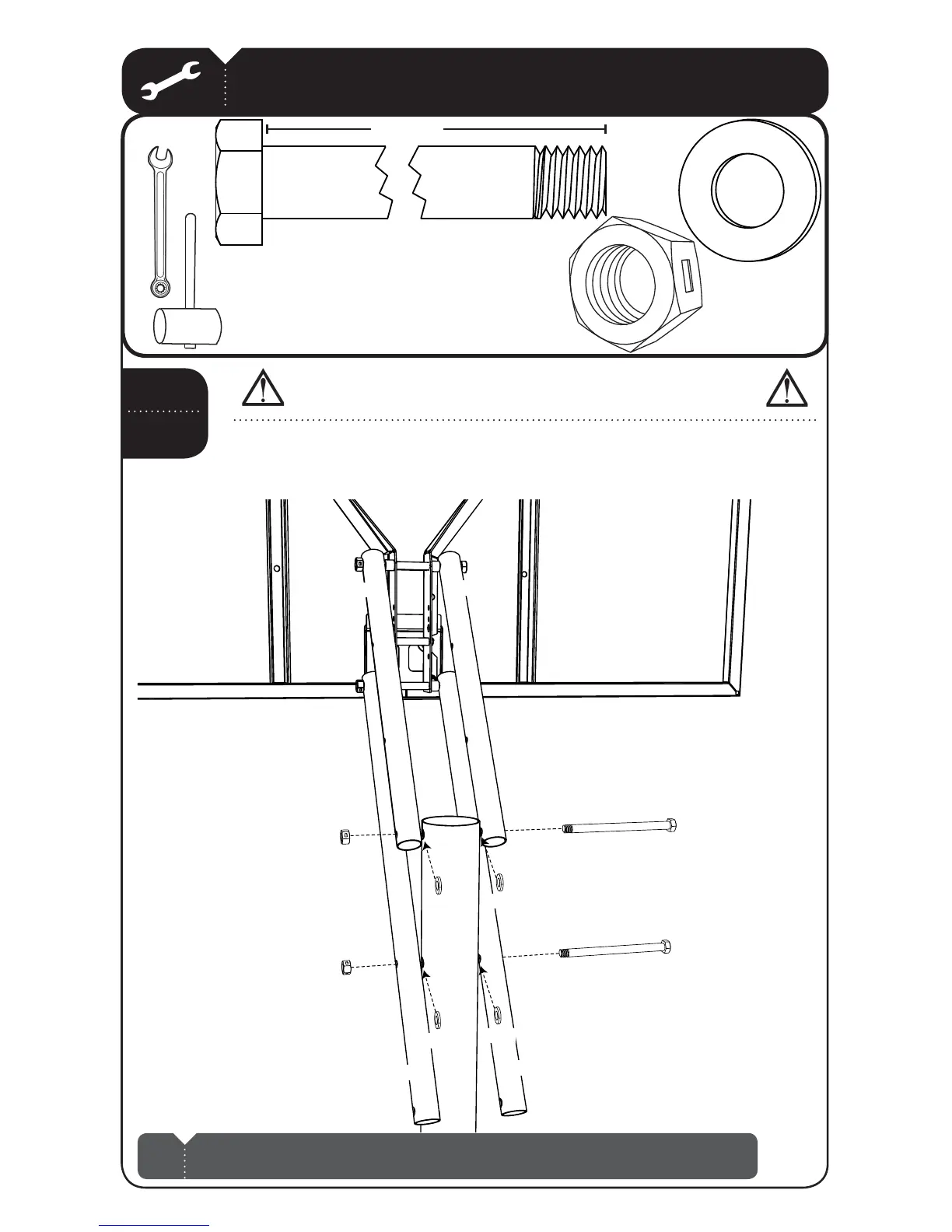

,AYTHE"ACKBOARDAND2IMASSEMBLYNEXTTOTHE0OLEASSEMBLY2ESTTHE
Rim on cardboard to prevent scratching. Then secure the Short and Long
Extension Arms (AKC & AKB) to the Top Pole (ALH) with the hardware shown.
CAUTION: HAVE ONE ADULT HOLD THE BACKBOARD IN PLACE
UNTIL ASSEMBLY HAS BEEN COMPLETED!
!!8
ABN
AAD
AKC
!!8
AKC
AKB
AKB
ABN
ABN
ABN
AAD
ALH
