Lifetime 90192 - Page 39

39

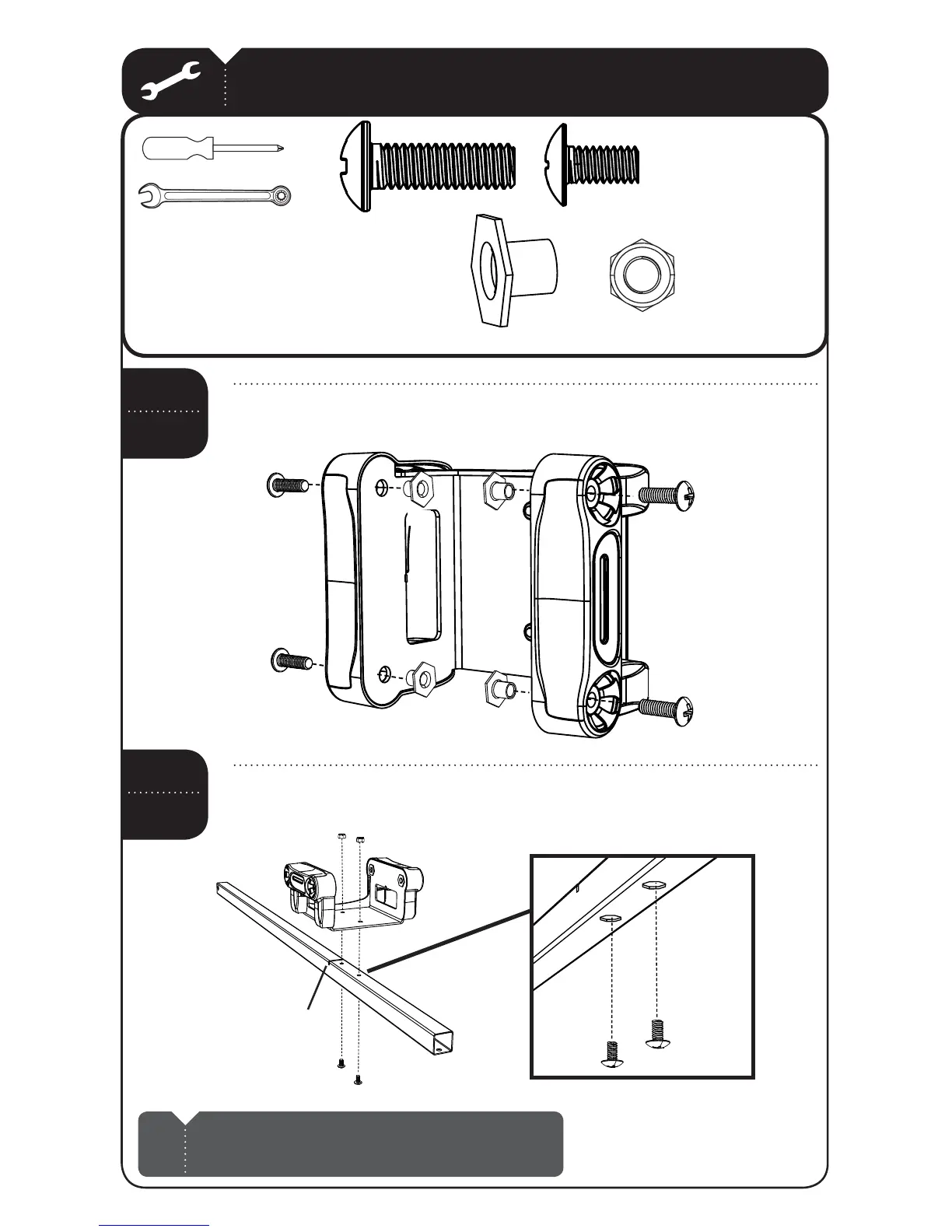

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
Secure the Handle Grips to the Handle Assembly with the hardware
shown.
SEC
5.3
Attach the Handle Assembly to the Outer Tube (ALB) with the hardware
shown. Fit the ,OCK4AB#.& into the notch on the Outer Tube.
SEC

CNH
AZP
ALB
Notch
CNI (x4)
!!* (x4)
CNH (x2)
CNH
AZP (x2)
AZP
CNI
CNI
CNI
CNI
!!*
!!*
!!*
!!*
CNH
CNH
Note: Make sure that the Inner Channel (AKQ) has been
removed from the Outer Tube before performing this step.
!
7/16”
