248083447-1 Rev 1 4-1
4 Communications
This chapter contains information regarding how to set up the various
equipment to communicate with the ApexRemote instrument.
ApexRemote
Serial DIP
Switches
The ApexRemote Serial uses DIP switches to set up a portion of the
ApexRemote’s functions and are shown Figure 4-1.

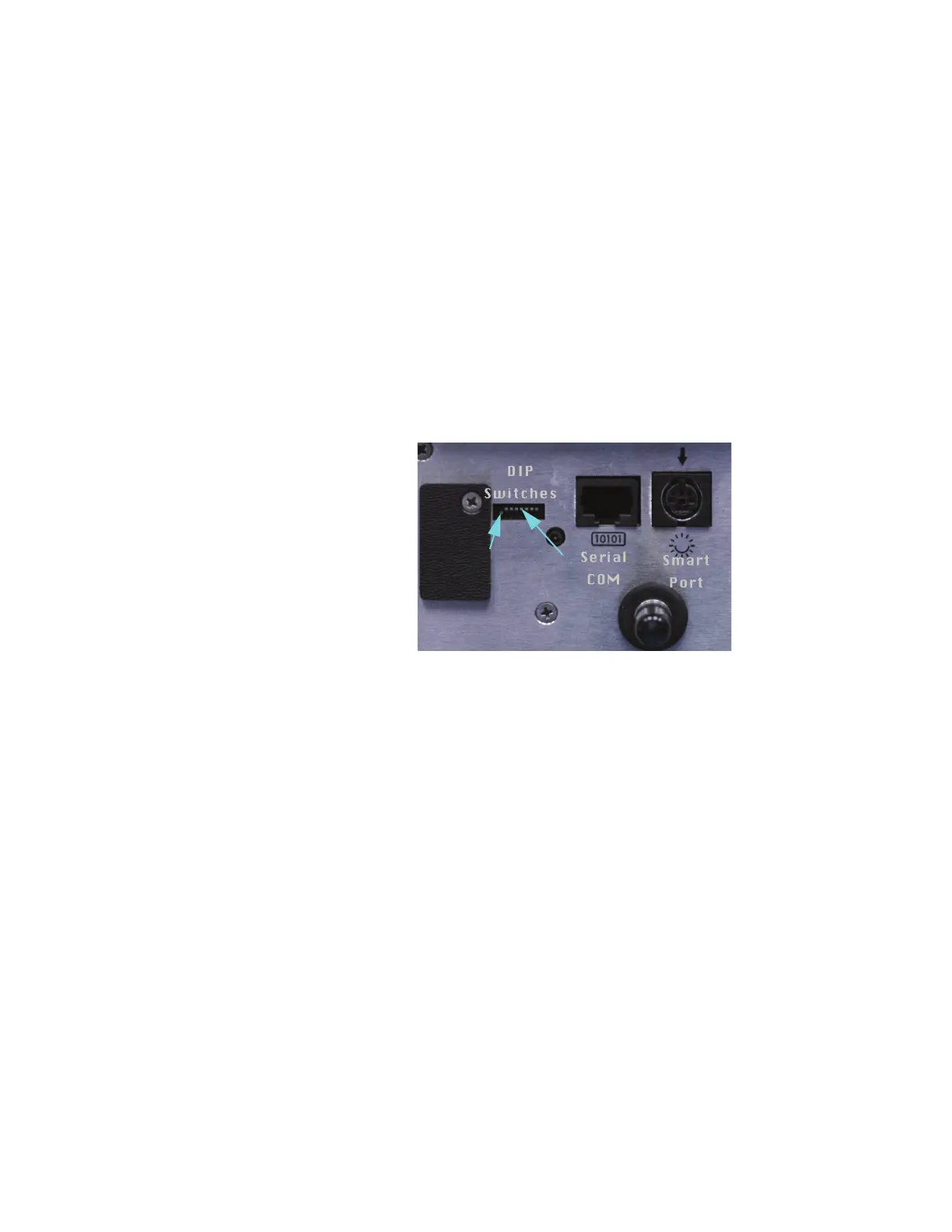

Figure 4-1 ApexRemote Serial Connectors and DIP Switch
Refer to Table 4-1 for detailed DIP switch settings, their meaning and
effects.
