Lighthouse ApexRemote Operating Manual
7-4 248083447-1 Rev 1
7. Attach the ApexRemote to the SmartBracket by slipping it over
the mounting screws provided and sliding it downward on the
Bracket. Tighten the two screws. See Figure 7-5.

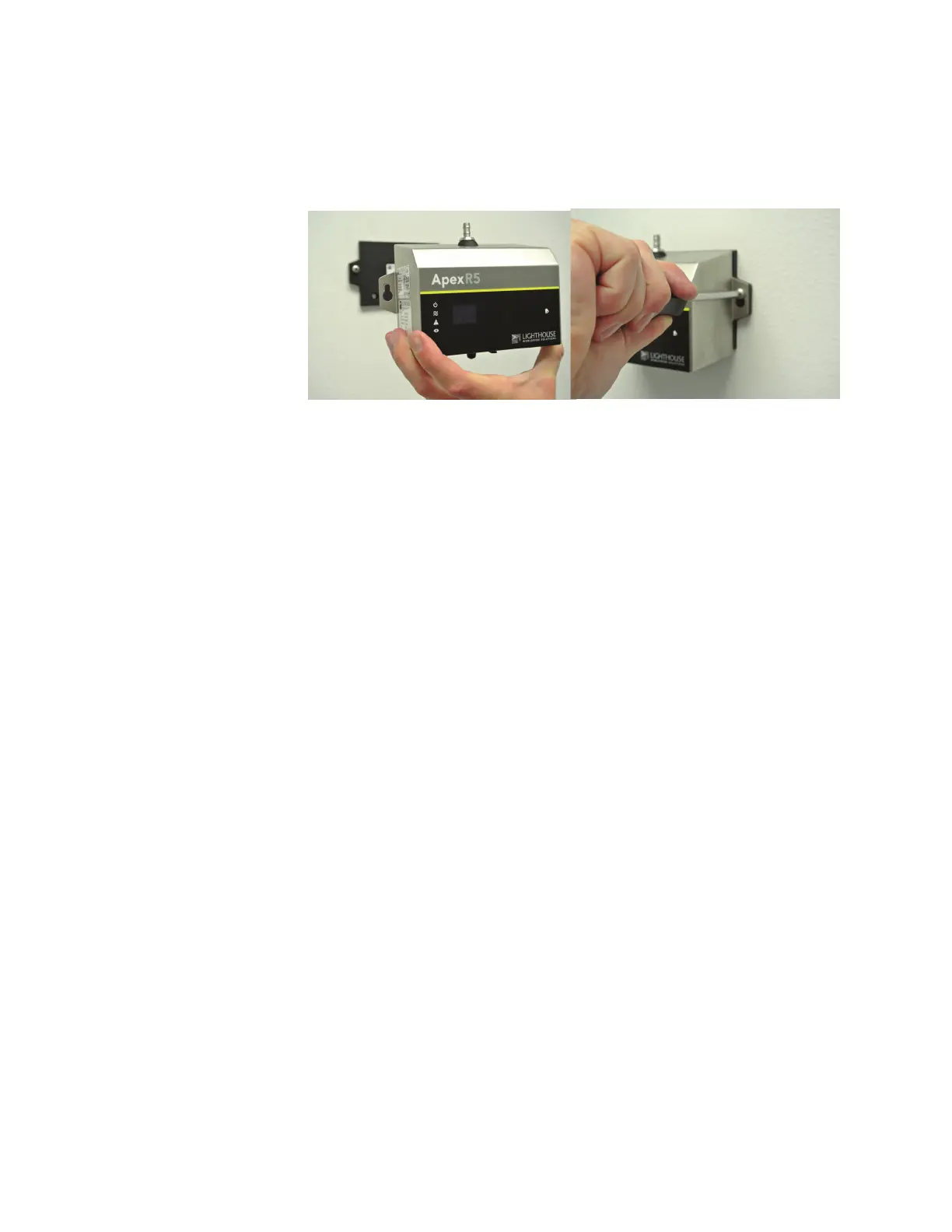

Figure 7-5 Attach ApexRemote to SmartBracket
8. The ApexRemote is now ready for connection to the network.
Installing ApexRemote without SmartBracket
1. Using a bubble level to ensure ApexRemote is level, place the
ApexRemote against the vertical surface upon which it will be
mounted.
2. Mark the center of each mounting tab’s larger hole then remove the
ApexRemote from the surface and drill pilot holes for the
mounting hardware.
3. Install the mounting hardware then the ApexRemote, snugging
the instrument to prevent wobble or movement while it is in use.
4. Install the necessary cable and vacuum tubing.
5. The instrument is ready for connecting and integrating into the
instrumentation network.
