Install
248083447-1 Rev 1 7-3
4. Use the appropriate size drill bit and drill the holes as marked.
Install the anchors into the drilled holes. See Figure 7-3.

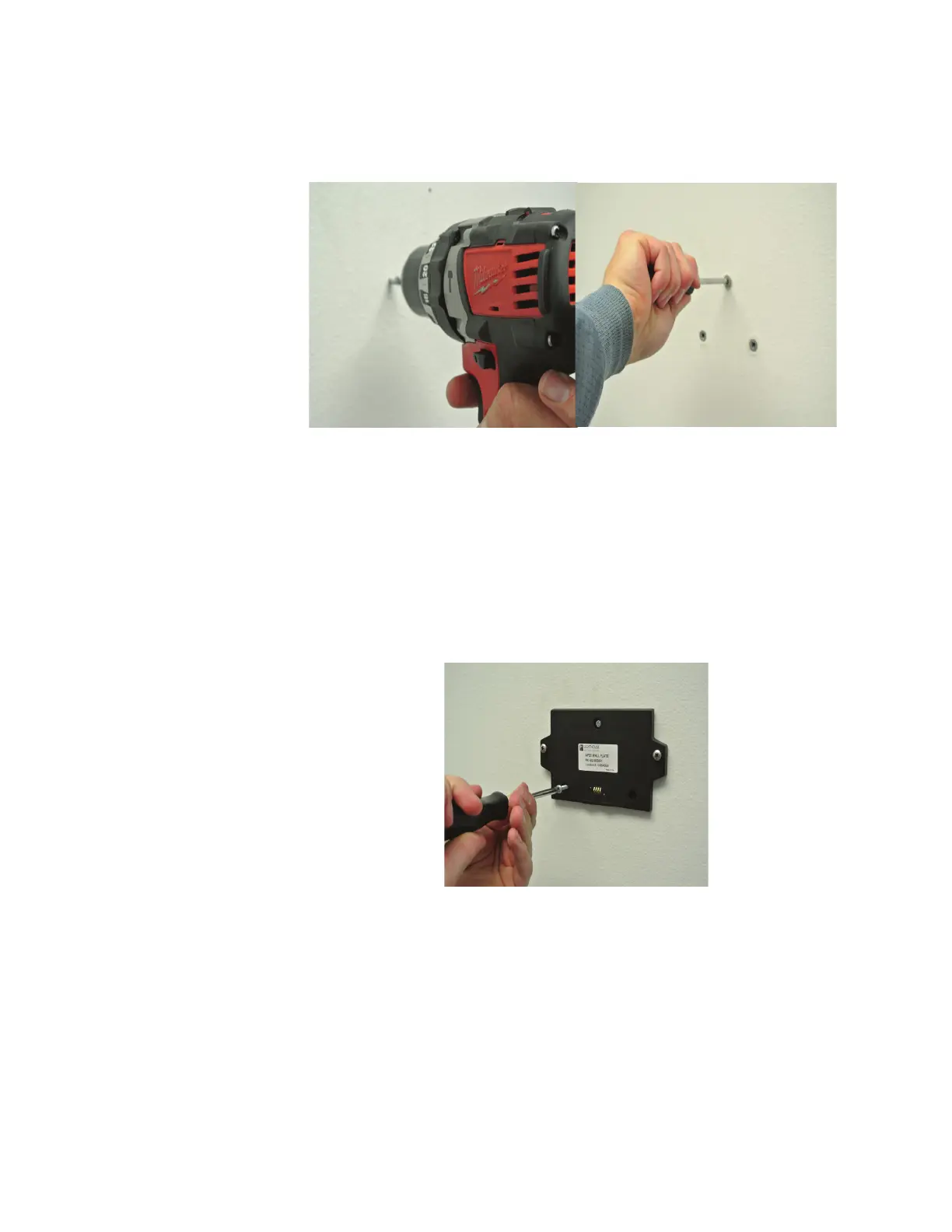

Figure 7-3 Drill and Prepare Mounting Holes
5. For ApexRemote installation without SmartBracket, install the
ApexRemote using the installed anchors and appropriate screws.
Proceed to step 8.
6. For SmartBracket installation, attach the SmartBracket using the
installed anchors. Make sure to use flat head screws to maintain
clearance from the rear of the ApexRemote. Refer to Figure 7-4.
Figure 7-4 Attach SmartBracket to Wall
