Lighthouse ApexRemote Operating Manual
3-4 248083447-1 Rev 1
9. Connect SmartPort cable to SmartPort shown in Figure 3-4.

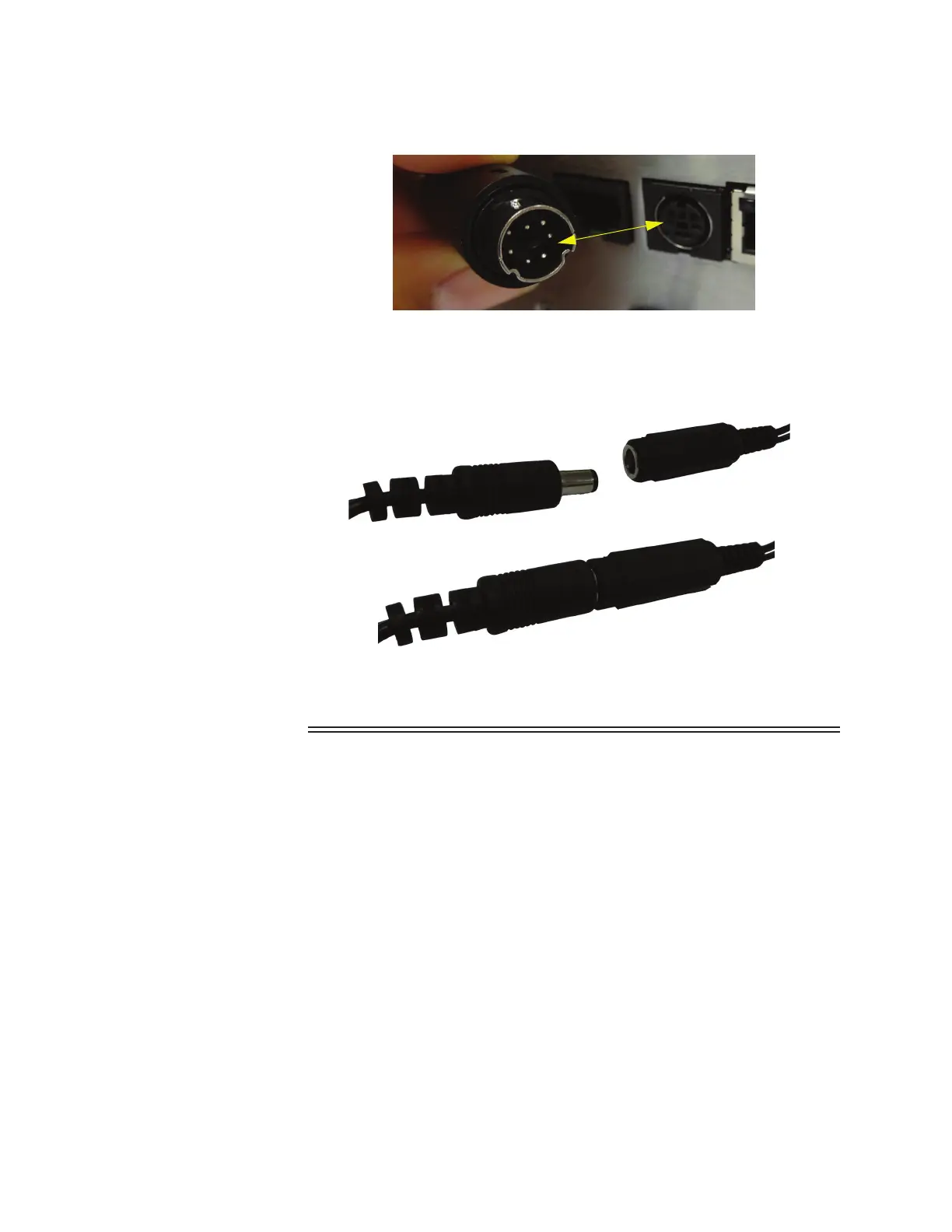

Figure 3-4 SmartPort cable into SmartPort
10. Insert the 24VDC power supply’s DC output connector into the
SmartPort cable’s power input connector as shown in Figure 3-5.
Figure 3-5 Connect Power Supply to SmartPort cable
WARNING: Do NOT attempt to use the SmartPort cable power
and power from the
ApexRemote Serial’s RJ45 or power
provided via the PoE port at the same time or serious damage to
the
ApexRemote and support devices may occur!
11. Attach the Power Supply to AC power. Verify the ApexRemote
Power LED comes on solid after a few seconds.
12. Make sure power is applied to the ApexRemote before
attempting to run the LWS Instrument Setup Tool or the program
will not "see" the instrument and report an error, requiring another
COM port to be selected.
13. On the configuration computer navigate to the Start menu, All
Programs. Navigate to Lighthouse Worldwide Solutions, click and
choose LWS Instrument Setup Tool.
