Lighthouse S3100/S5100/Boulder Counter Operating Manual
3-6 248083389-1 Rev
2. Connect the terminals and fold the wires against the battery.
Replace the battery door and tighten the thumbscrews. See Figure
3-3.

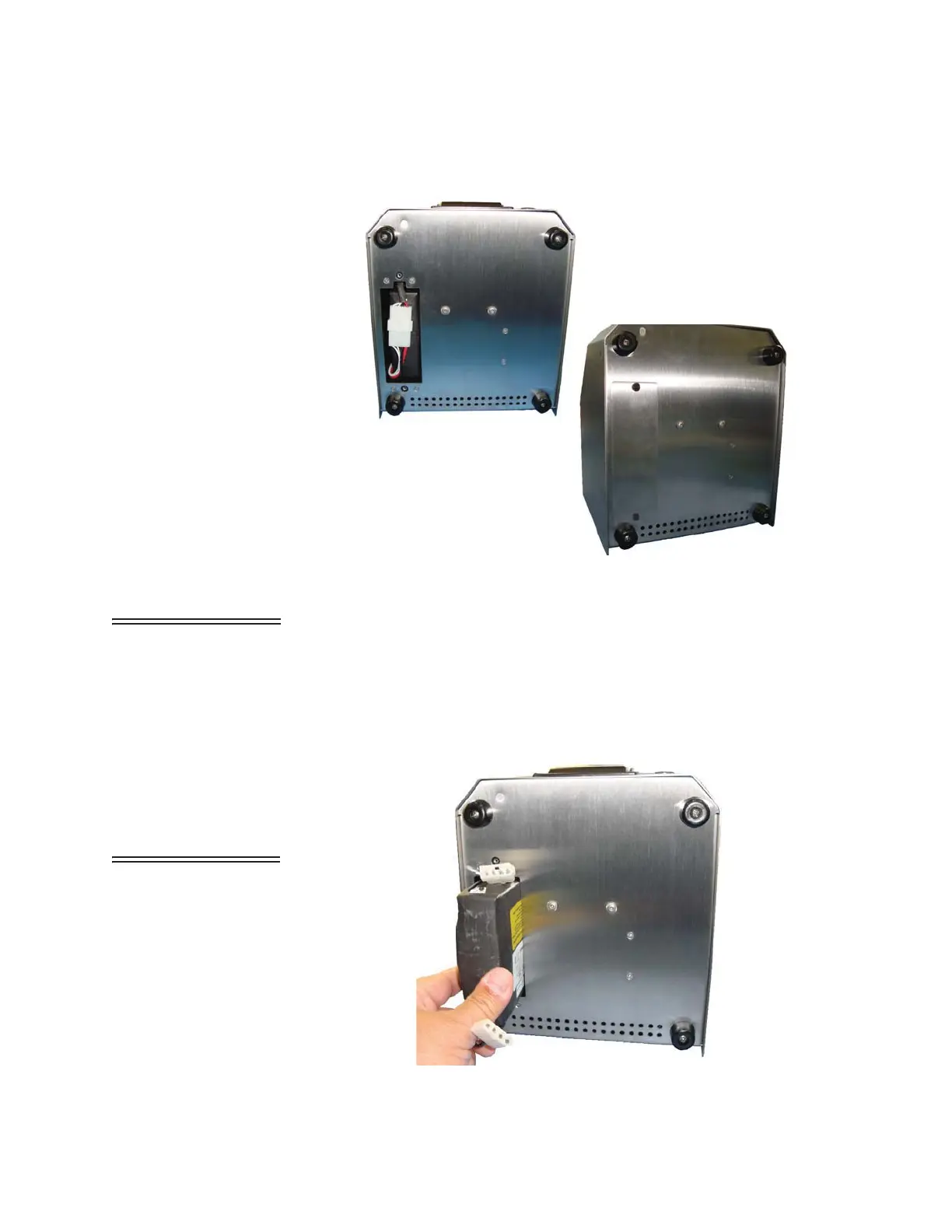

Figure 3-3 Connect Terminals and Replace Door
WARNING: Always
remove the battery from
the instrument prior to
shipping.
Do not ship the battery
along with the
instrument.
Be careful when
removing or installing
the battery not to
damage the wires.
Removing the Battery
To remove the battery, turn off the power switch, loosen the
thumbscrews, remove the battery door and disconnect the terminals.
Slide the battery out as shown in Figure 3-4.
Figure 3-4 Removing the Battery
