Lighthouse S3100/S5100/Boulder Counter Operating Manual
6-32 248083389-1 Rev
OPTIONS
The Options screen allows the user to make visual and sound
adjustments as well as selecting different language formats and start-up
functions. See Figure 6-41.

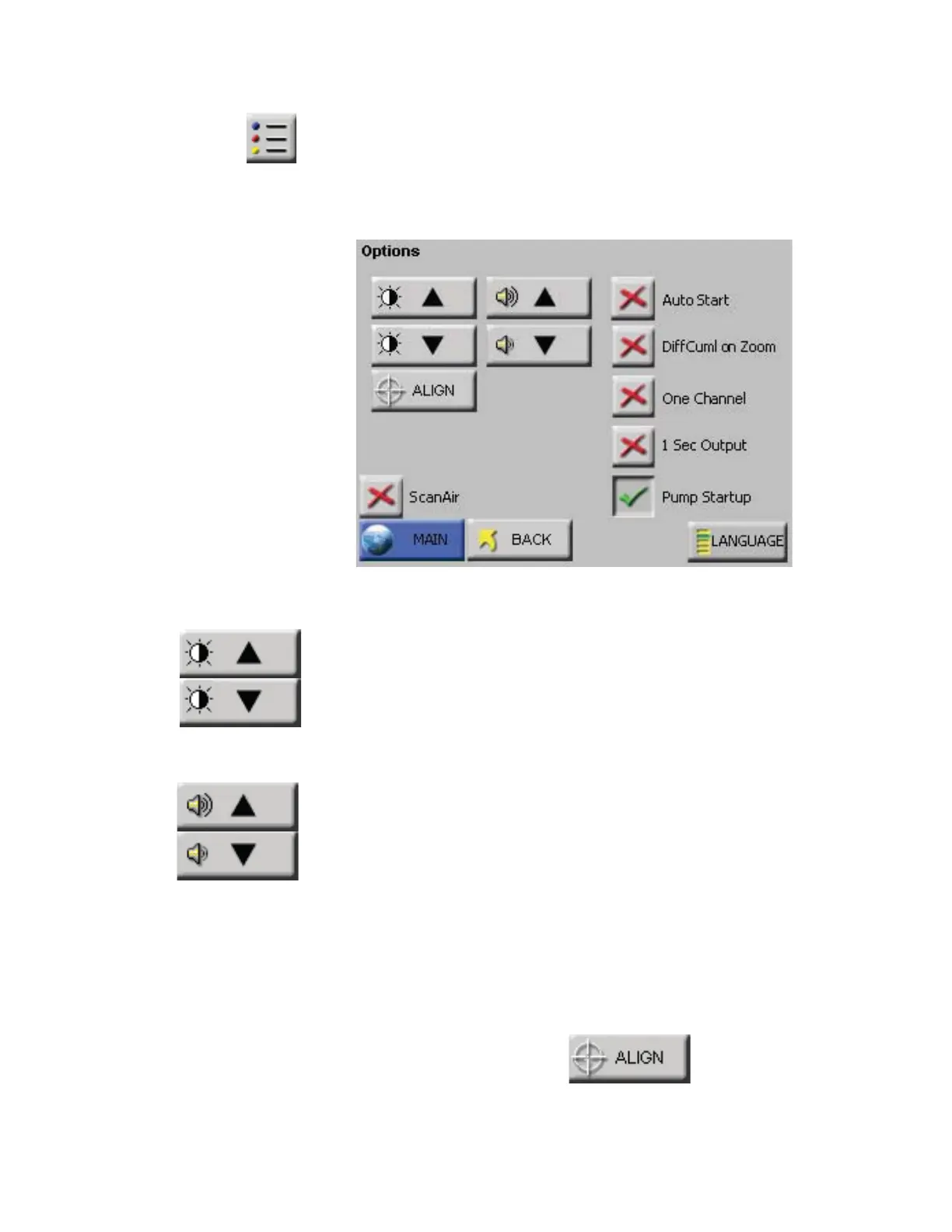

Figure 6-41 Options Configuration Screen
CONTRAST ADJUST
The contrast/brightness of the LCD screen can be adjusted by pressing
the first set of UP and DOWN arrows.
AUDIBLE BEEP ADJUST
The audio level of the BEEP can be adjusted by pressing the second set
of UP and DOWN arrows.
ALIGN TOUCH SCREEN
The ALIGN button allows the user to re-align the touch screen so the
locations that they touch on the screen correspond to the expected
button or function.
• Press the ALIGN button.
