Version 1.0 Page 8 / 43

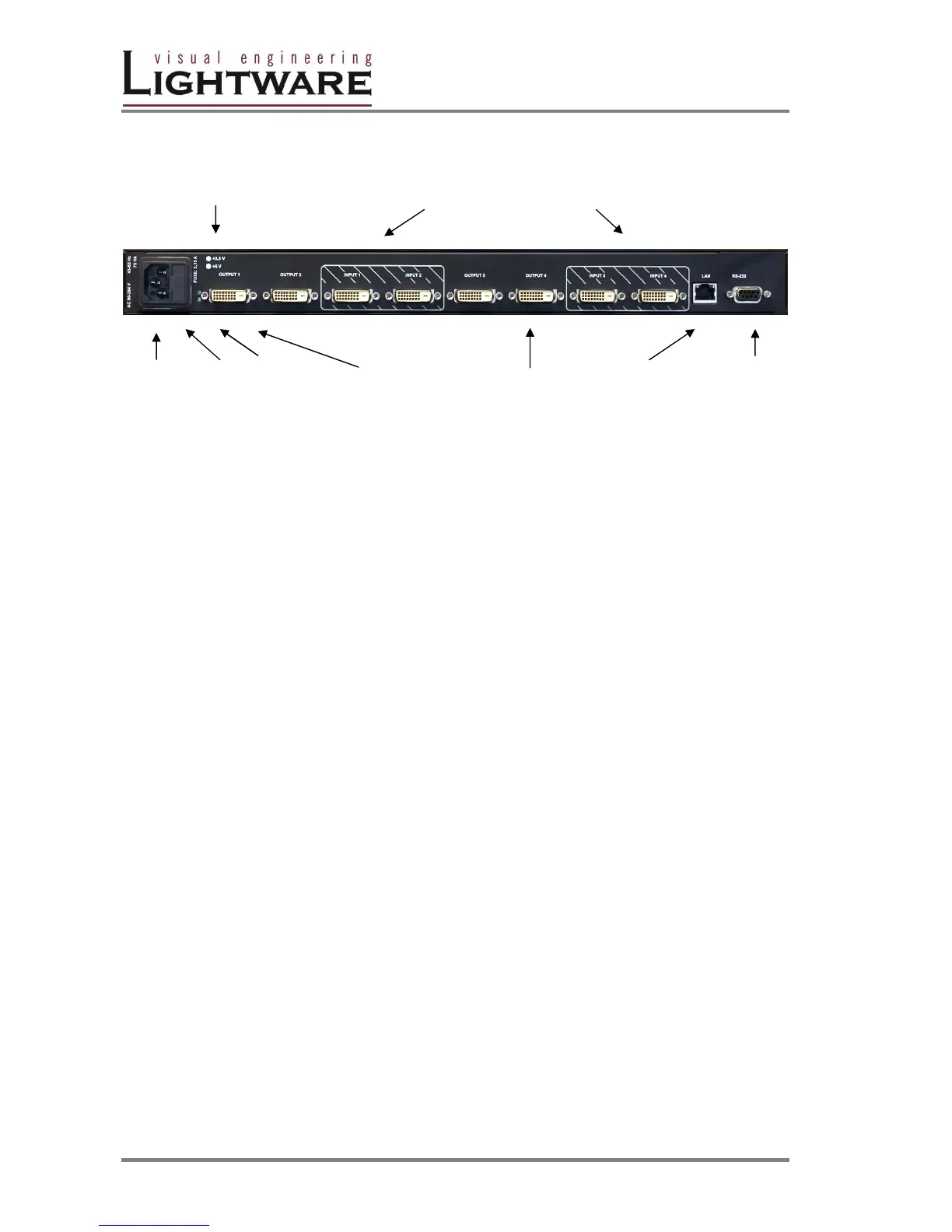

Rear Panel view
Signal presence LED-s INPUT connectors 1 to 4
AC Power AC DC Power OUTPUT Connectors1 to 4 Ethernet RS 232/422
connector Fuse LED's control port port
AC Power Standard IEC power connector. The router works with 90 to 264
Volts, 50 or 60 Hz power sources.
RS 232/422 connector 9 pole Dsub female connector for remote control applications.
Can be ordered with RS232 or RS422 control.
Ethernet port RJ 45 connector. Remote control port for connecting the unit to
Local Area Network.
Input connectors 24 pole DVI–D digital only female receptacle connectors.
Connect DVI sources devices to these connectors.
Output connectors 24 pole DVI–D digital only female receptacle connectors.
Connect DVI monitors or other displays to these connectors.
Power LED's Indicators for presence of internal DC voltages +3.3 Volts and +
5 Volts
