2. Product Overview

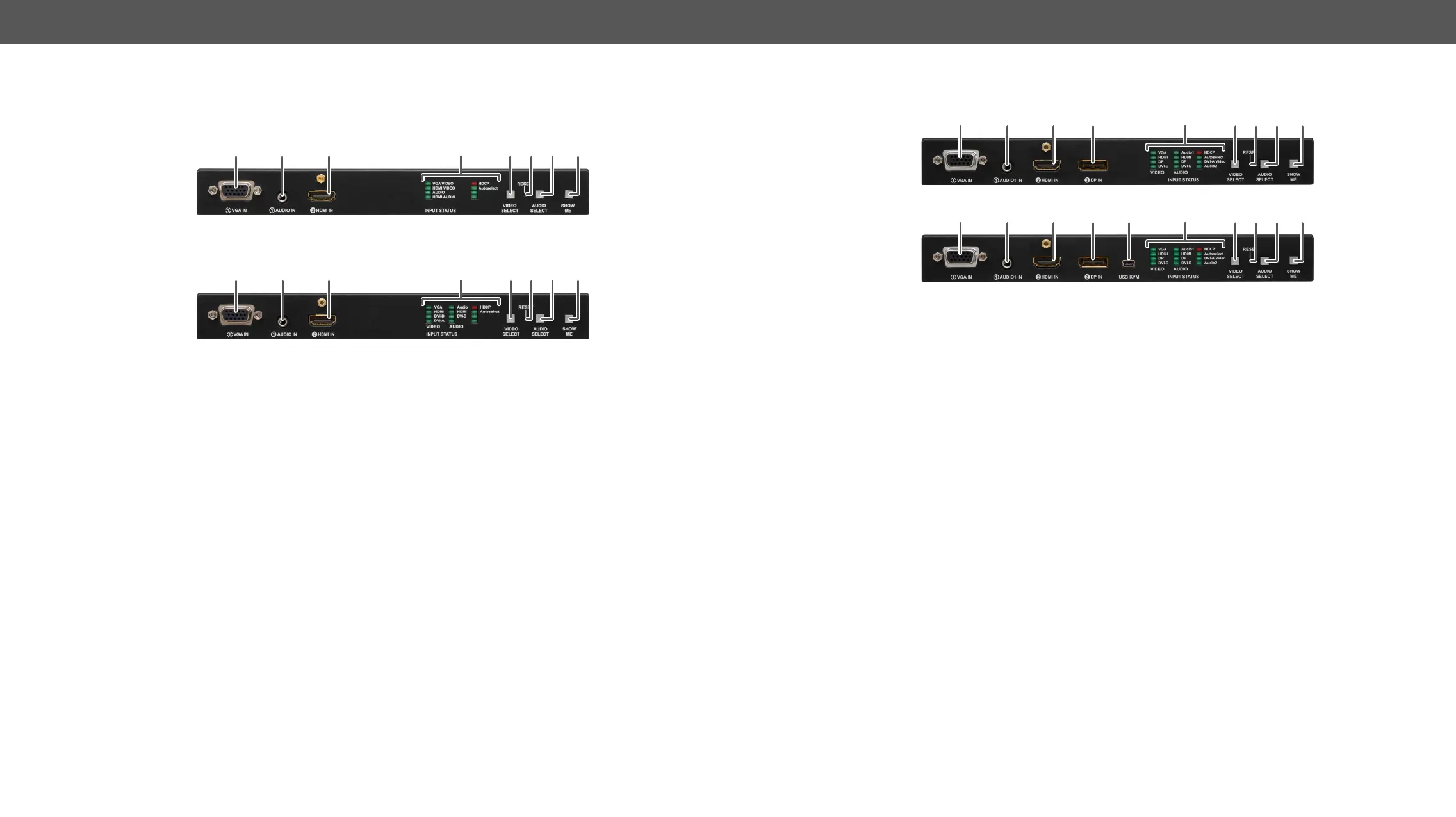

Front View - UMX-TPS-TX100 series
UMX-TPS-TX120
UMX-TPS-TX130
1
VGA input D-SUB connector for analog video signal.
2
Audio1 input
3
HDMI input
4
DisplayPort input
5
Input Status LEDs
See the details in the section. #status
6
Video Select button Button for switching between video sources. See the details in the
Select Button section. #crosspoint #switch #testpattern #button
7
Reset button Pushing the button reboots the unit. #reset #reboot
8
Audio Select button Button for switching between audio sources. See the details in the Audio
Select Buttonsection. #audio #analogaudio
9
Show Me button
(bootload) mode, DHCP settings, restore factory default settings,
condition launching in Event Manager). #dhcp #factorydefault
1 2 3
5
76 8 9
1 2 3
5
76 8 9
UMX-TPS-TX140 /UMX-TPS-TX140-Plus
UMX-TPS-TX140K
1 2 3
6
87 9 q4
1
VGA input D-SUB connector for analog video signal.
2
Audio1 input
3
HDMI input
4
DisplayPort input
5
USB KVM
Devices, e.g. keyboard, mouse, presenter). This port transmits the USB
data from the extender towards the PC. #usb #usbkvm
6
Input Status LEDs
See the details in the section. #status
7
Video Select button Button for switching between video sources. See the details in the
Select Button section. #crosspoint #switch #testpattern #button
8
Reset button Pushing the button reboots the unit. #reset #reboot
9
Audio Select button Button for switching between audio sources. See the details in the Audio
Select Button section. #audio #analogaudio
q
Show Me button
(bootload) mode, DHCP settings, restore factory default settings,
condition launching in Event Manager). #dhcp #factorydefault
1 2 3
6
87 9 q4 5
