4. Device Concept UMX-TPS-TX100 series – User's Manual 44
RS-232 Recognizer

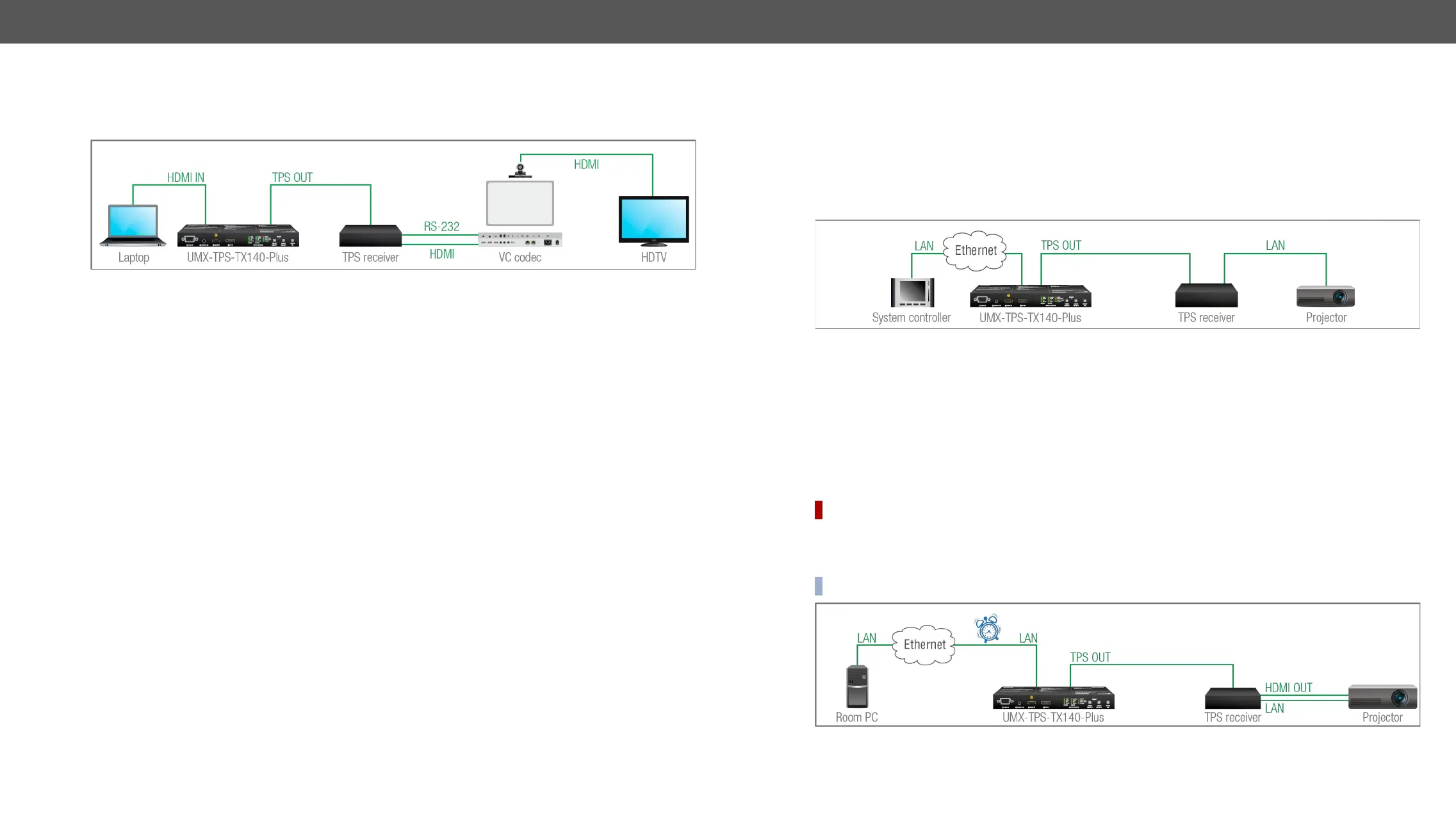

RS-232 Recognizer Example
UMX-TPS-TX140-Plus
Process Settings
extender sends a message: 'ping'.
This condition and the action is set in Event manager.
The serial communication is scanned continuously by the
recognizer in the extender and gets the 'Login name' string.
Login name:'.
Login name:' is detected in the string, the
extender sends a message: 'Admin'.
This condition and the action is set in Event manager.
The serial communication is scanned continuously by
the recognizer in the extender and gets the 'Password'
string.
Password:'.
Password:' is detected in the string, the
extender sends a message: 'Admin'.
This condition and the action is set in Event manager.
more details see the Event Manager
Device Controller Software (see the Message Recognizer
RS-232 Message Recognizer section).
Settings in the Event manager
▪ E1. UMX-TPS-TX140-Plus, it sends a message 'PING' on P1
▪ E2. Set a condition where 'Login name:' is the recognized RS-232 message. Action is sending serial
▪ E3. Set a condition where 'Password:' is the recognized RS-232 message. Action is sending serial
Ethernet Interface
Device Control over Ethernet
The interface can be also used to remote control a third-party device and establish the connection to
Third-party Device Control via Local Ethernet (Example)
The following ways are available for device control:
▪ The system controller can communicate with the transmitter
commands.
▪ The system controller can communicate with the projector by its IP:port address.
▪ The transmitter can send commands (e.g. as an action by the Event Manager) to the IP:port address
of the projectorEvent Manager
Ethernet Message Sending section.
Wake-on-Lan
DIFFERENCE: v1.5.0b4.
The well-known wake-on-lan feature (sending magic Packet to the target PC) is available. This can be used
Powering on a Computer
section.
INFO: Please make sure the feature is enabled in the target PC and it is powered (but switched off).
