3. Installation UMX-TPS-TX100 series – User's Manual 25
Mounting Options - Standalone Transmitters
bottom side; see the bottom view in the Mechanical Drawings section. To order mounting accessories
please contact sales@lightware.com.
More details about the accessories and the mounting can be found in the Mounting Assembly Guide.
WARNING! Always use the supplied screws. Using different (e.g. longer) screws may damage the device.
INFO: The transmitter is half-rack sized.

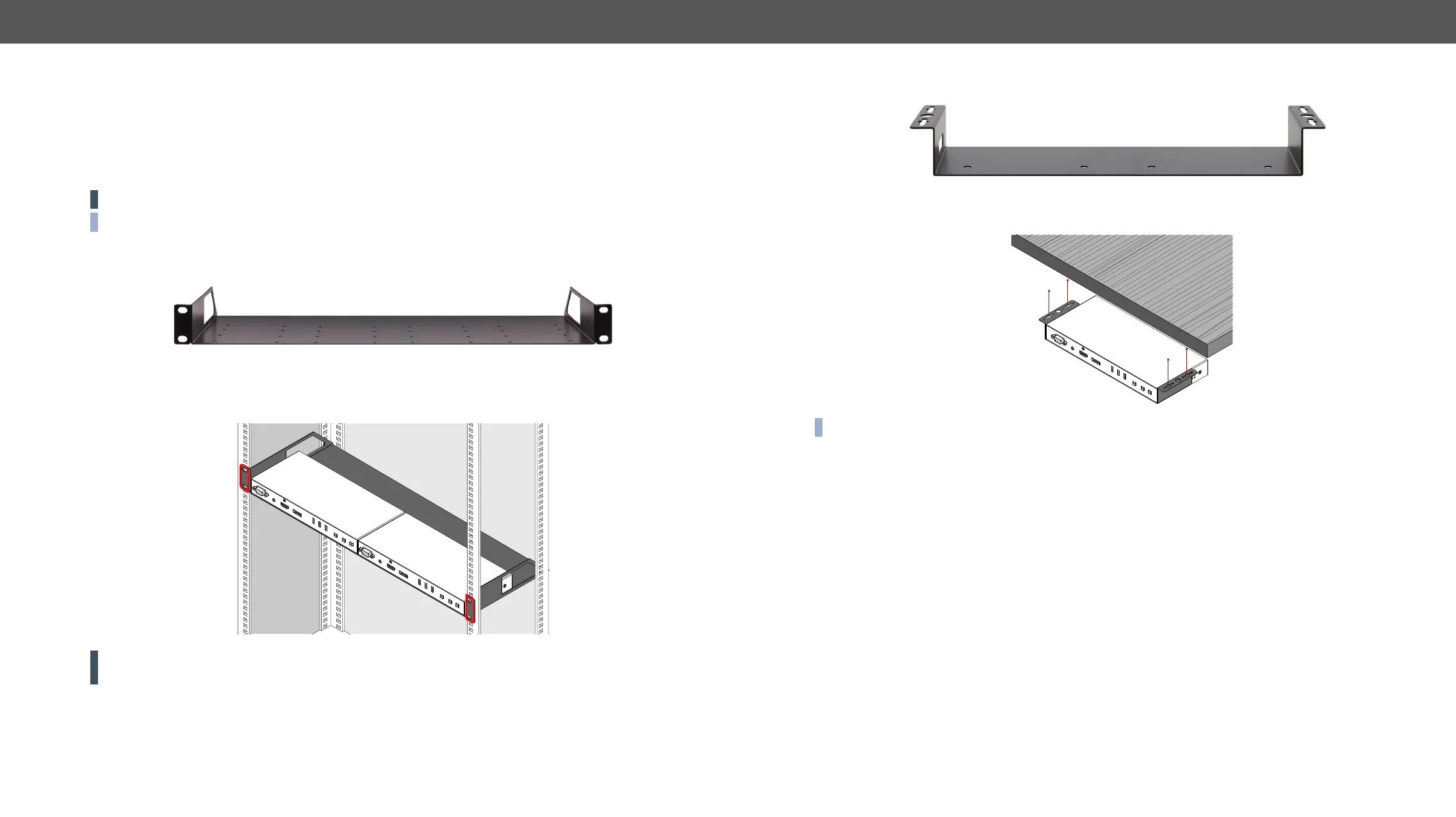

1U High Rack Shelf
This accessory allows rack mounting for half-rack, quarter-rack and pocket sized units.
1U high rack shelf
1U high rack shelf provides mounting holes for fastening two half-rack or four quarter-rack sized units.
Pocket sized devices can also be fastened on the self.
ATTENTION!
sized screws for mounting. Keep minimum two threads left after the nut screw.
Under-desk Double Mounting Kit
Under-desk double mounting kit
INFO: The chipboard screws are not supplied with the mounting kit.
