WTR Installation & Maintenance Manual 330-15000 • Revision A • August
2.2 Product Identification

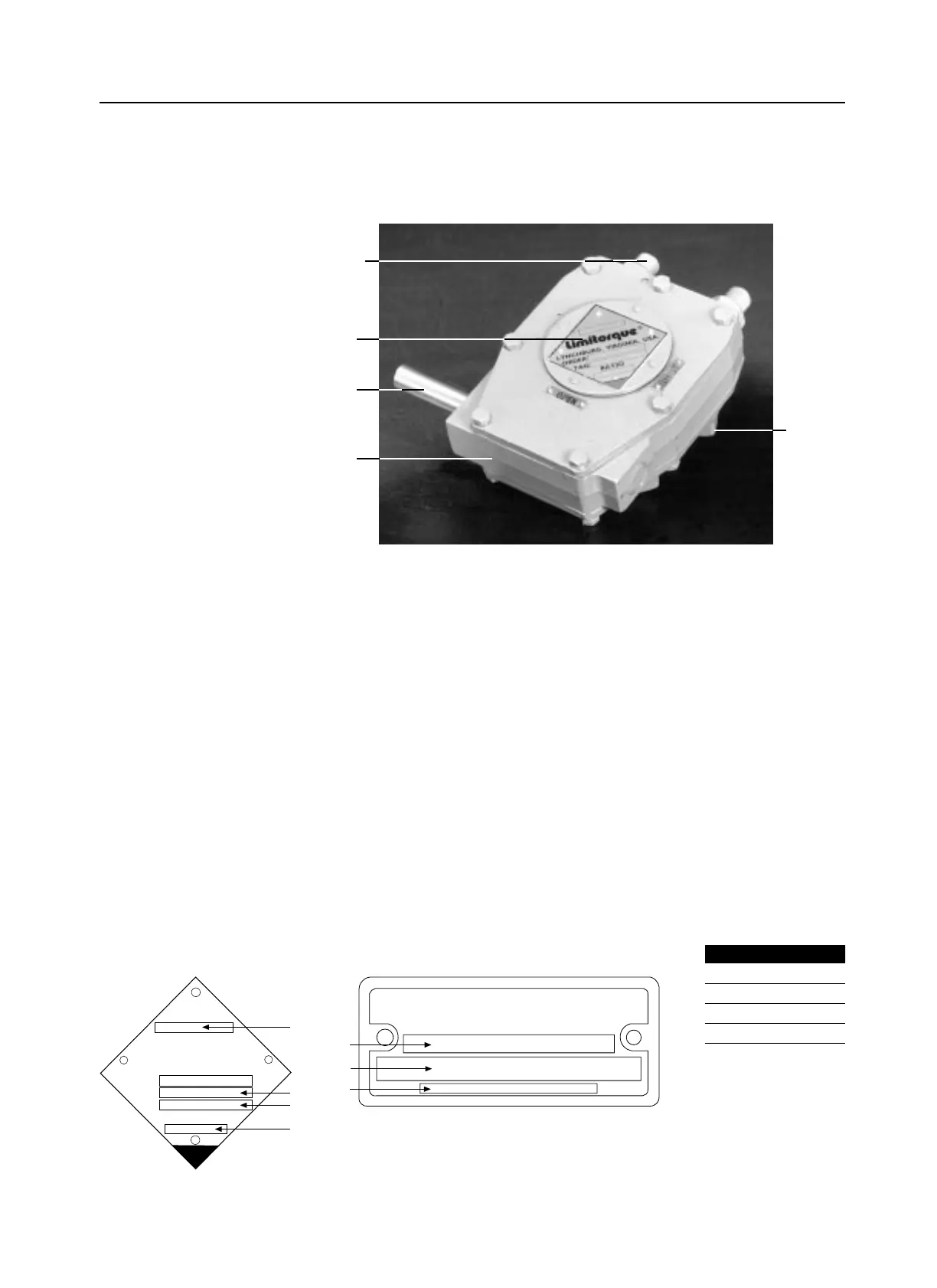

Figure 2.1 – WTR gearbox
2.3 Inspection and Recording
Upon receipt of the actuator, inspect the condition of the equipment and record nameplate
information as follows:
1. Carefully remove actuator from shipping carton or skid. Thoroughly examine the
equipment for any physical damage that may have occurred during shipment. If damaged,
immediately report the damage to the transport company.
2. A nameplate is attached to each actuator with the following information:
• Unit Size
• Limitorque Order Number
• Customer Tagging
• Unit Ratio (includes WTR SGA if attached to unit - does not include motorized actuator
ratios)
Record this information for future reference, i.e., ordering parts, obtaining further
information.
Figure 2.2 – WTR nameplates
2-2
LIMITORQUE
1
2
3
WTR
SERIAL
ORDER
TAG
RATIO
LYNCHBURG, VIRGINIA, USA
LIMITORQUE
1
2
3
4
WTR-3 through 150 WTR-430 through 575
Piece Description
1 Unit Size
2 Order Number
3 Customer Tag
4 Unit Ratio
Mounting
Base
Housing
Input Shaft
Nameplate
Mechanical
Stop Screw
